High Quality Tapcon Concrete Drill Bit with Flat Shank for Concrete Brick Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：ANSI
- Length：3.5inch to 7.5inch
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：3016
- Carbide Type：Virin Yg8
- Steel Type：40cr
- Surface Treatment：Sandblasted, Blackoxided
- Shank Type：Cylindrical with Flat
- Welding Type：Hfw. (High Frequency Welding)
- Transport Package：Box,PVC Bag, Blister, Skin, Snadwich, Paper Hanger
- Specification：5,32", 3,16"
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：5000000PCS,Year
Description
Basic Info.
Model NO. 3016 Carbide Type Virin Yg8 Steel Type 40cr Surface Treatment Sandblasted, Blackoxided Shank Type Cylindrical with Flat Welding Type Hfw. (High Frequency Welding) Transport Package Box,PVC Bag, Blister, Skin, Snadwich, Paper Hanger Specification 5/32", 3/16" Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 5000000PCS/YearProduct Description

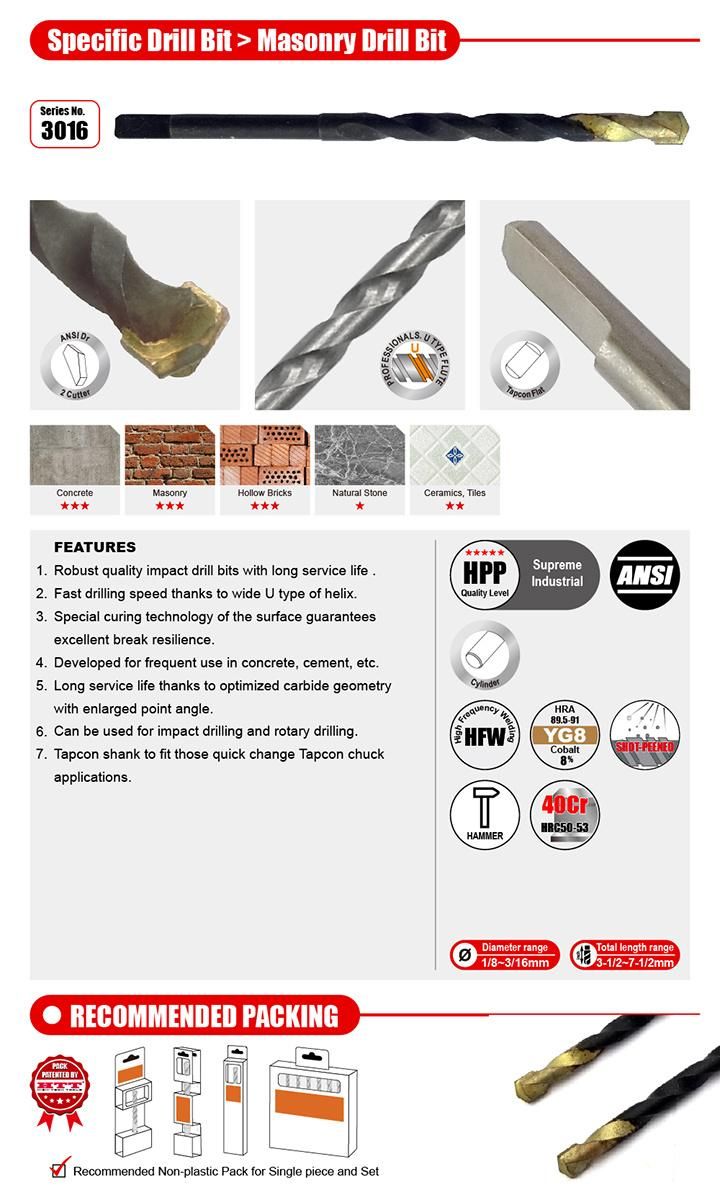

* Tapcon Concrete Drill Bit with Flat Shank, U flute type, Sandblasted or Blackoxided surface treatment.* 2Cutter Carbide tipped faster for all concrete, brick applications to fit tapcon drill chuck.
* Effective removal of dust thanks to aggressive tip and spiral design.
* ANSI standard helps to fasteners fixing demands.
* Strictly following ANSI diameter gauge.
Size Table:
| Item Number | Diameter(inch) | Working Length(inch) | Overall Length(inch) |
| 3016.0532312 | 5/32 | 2-1/4 | 3-1/2 |
| 3016.0532412 | 5/32 | 3-1/16 | 4-1/2 |
| 3016.0532512 | 5/32 | 3-1/2 | 5-1/2 |
| 3016.0316312 | 3/16 | 2-1/4 | 3-1/2 |
| 3016.0316412 | 3/16 | 3-1/16 | 4-1/2 |
| 3016.0316512 | 3/16 | 3-1/2 | 5-1/2 |
| 3016.0316612 | 3/16 | 3-3/4 | 6-1/2 |
| 3016.0316712 | 3/16 | 4-3/8 | 7-1/2 |
