DIN338wr Jobber HSS Type W Fast Spiral High Helix Drill Bit for Metal Stainless Steel Aluminium Drilling

Xuzhou Perfect Industry Technology Co., Limited
  • Customized：Customized
  • Standard：AISI, DIN338
  • Length：Jobber-length
  • Type：Twist Drill Bit
  • Usage：Metal Drilling, Alloy Steel, Unalloyed Steel, Iron,Cast Iron
  • Point Angle：118 Degree Regular Point

Base Info

  • Model NO.：PFT047
  • Surface：Bright Finish
  • Size：1-20mm
  • Processing：Fully Ground
  • Shank：Straight Shank
  • Flute Type：Type W High Helix Right Hand
  • Transport Package：PVC Pouch,Plastic Box
  • Specification：TUV, CE, ISO
  • Trademark：Perfect
  • Origin：Jiangsu Province, China
  • HS Code：8205100000
  • Production Capacity：5000PCS, Per Day

Description

Product Name DIN338 HSS Fully Ground Type W Fast Spiral High Helix Drill Bit for Metal Stainless SteelMaterial HSS  (HSS Cobalt is Available)Process Fully Ground   (Rolled & Polished, Rolled, Milled are Available)Standard

 DIN338                  (Stub DIN1897, Long DIN340, Extra Long DIN1869,

                                Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

 Jobber Length     (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,

                                Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

Size 1 - 20mmPoint Type 118 Degree Regular Point  (135 Degree Split Point, Turbo Max Point, Pilot Point are Available)Shank Type

 Straight Shank   (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

                               Threaded Hex Shank, Taper Shank are Available)

Helix Angle Fast Spiral Type W  (Regular Spiral Type N, Slow Spiral Type H, Left Hand Spiral are Available)Web & Flute Type Regular Web & Flute  (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)Surface Finish Bright  (Black Oxide, Amber Color, Titanium, Black & Gold, Black & Bright are Available)Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features

 1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness   and toughness for wear resistance.

 2.Universal 118° point shape for drilling a wide selection of materials.

 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
 4.A fast spiral (high twist rate or "compact flute") drill bit is used in high feed rate applications under low spindle   speeds, where removal of a large volume of chips is required.

 5.DIN 338 jobber series drill bits are ideal for many trade and industrial projects.

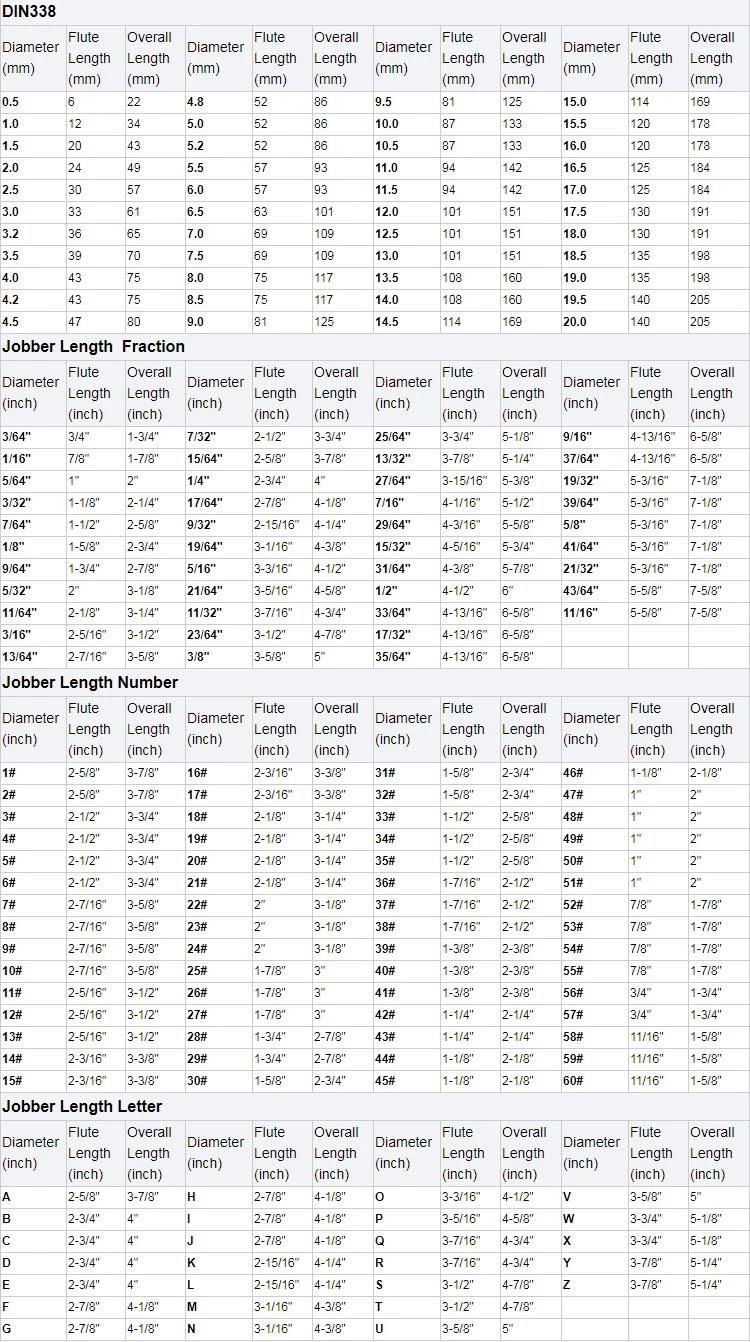

Product sizes
DIN338wr Jobber HSS Type W Fast Spiral High Helix Drill Bit for Metal Stainless Steel Aluminium Drilling
Other specification is also available according to your requirements. (OEM, ODM )
