Premium German Quality HSS Drill Saw Straight Flute Cylindrical Shank for Wood Chipboard Plywood MDF Metal Sheet Drilling and Sawing Slide Cutting
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN, ANSI
- Length：Jobber-length
- Type：Twist Drill Bit
- Material：High Speed Steel
- Usage：Wood Drilling, Metal Drilling
Base Info
- Model NO.：350-T
- Steel Type：HSS M2
- Surface Treatment：Titanium Plated
- Shank Type：Tri-Flat
- Flute Type：Straight Flute with Teeth
- Tip Point：135degrees Split Point
- Transport Package：Box, PVC Bag, Blister, Sandwich Blister, Tube
- Specification：3mm to 13mm diameters
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：2400000,Year
Description
Basic Info.
Model NO. 350-T Steel Type HSS M2 Surface Treatment Titanium Plated Shank Type Tri-Flat Flute Type Straight Flute with Teeth Tip Point 135degrees Split Point Transport Package Box, PVC Bag, Blister, Sandwich Blister, Tube Specification 3mm to 13mm diameters Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000/YearProduct Description

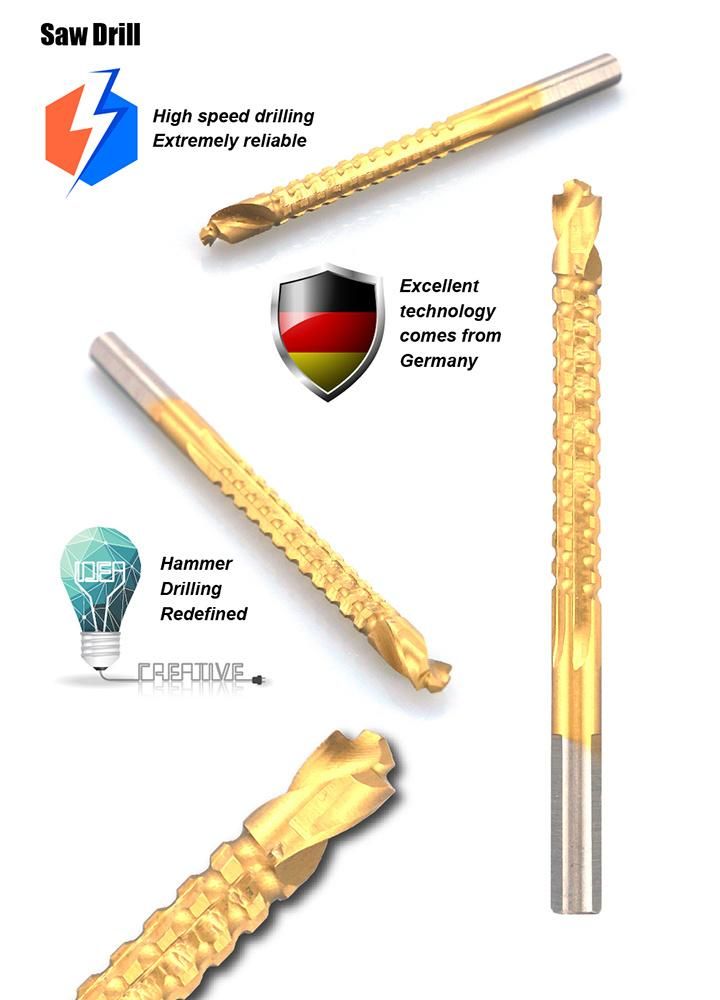

* HSS Drill Saw, Titanium plated, Cylindrical Shank, 135degrees split point tip, Straight flute with saw teeth under DIN338RN standard.* HSS steel is used to do those sharp brad-point saw drills on higher drilling efficiency and professional performance.
* To be used as a drill, saw, rotary file, reamer, and router, which is made of HSS(#4241, #4341,#M2) for extended life.
* Bullet pre-cut tip design to fast position and speedy drilling into the various wood.
* Tin-coated surface to offer more durable drilling.
*Pre-cut bullet tip fasts the centering position in the smooth materials without slipping.
Other special sizes are also available on the customers' special requests.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 350.30226050 | 2.0 | 26 | 50 |
| 350.32531055 | 2.5 | 31 | 55 |
| 350.30338060 | 3.0 | 38 | 60 |
| 350.30451075 | 4.0 | 51 | 75 |
| 350.30561086 | 5.0 | 61 | 86 |
| 350.30667090 | 6.0 | 67 | 90 |
| 350.36567090 | 6.5 | 67 | 90 |
| 350.30869095 | 8.0 | 95 | 95 |
| 350.30969103 | 9.0 | 69 | 103 |
| 350.31077105 | 10.0 | 77 | 105 |
| 350.31278118 | 12.0 | 78 | 118 |
| 350.31390130 | 13.0 | 90 | 130 |
