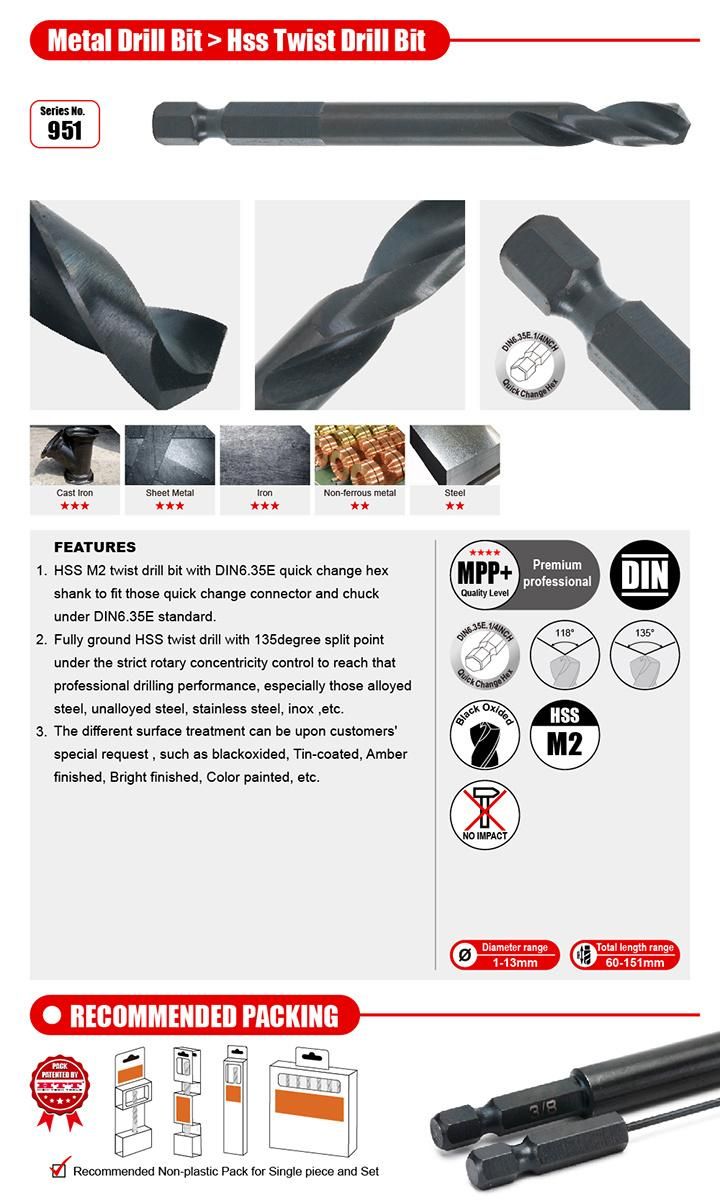

Supreme Quality Quick Change Stubby HSS M2 Twist Drill Bit Black with DIN6.35e Hex Shank for Metal Steel Stainless Steel Alloyed Unalloyed Non-Ferrous Metal Boa
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：60mm to 151mm
- Type：Twist Drill Bit
- Material：High Speed Steel
- Usage：Metal Drilling
Base Info
- Model NO.：951
- Steel Type：HSS M2
- Flute Type：N
- Rotation Direction：Right Hand
- Surface Treatment：Blackoxided
- Tip Point：1.0mm to 2.9mm 118degrees, 3mm-13mm 135degrees Spl
- Marking：Laser Marking
- Standard Type：H8 Precision
- Shank Type：DIN6.35e
- Transport Package：Blister, Skin, PVC Bag, Color Paper Hanger, Paper
- Specification：1.0mm to 13mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：6400000PCS,Year
Description
Basic Info.
Model NO. 951 Steel Type HSS M2 Flute Type N Rotation Direction Right Hand Surface Treatment Blackoxided Tip Point 1.0mm to 2.9mm 118degrees, 3mm-13mm 135degrees Spl Marking Laser Marking Standard Type H8 Precision Shank Type DIN6.35e Transport Package Blister, Skin, PVC Bag, Color Paper Hanger, Paper Specification 1.0mm to 13mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 6400000PCS/YearProduct Description
*HSS M2 Twist Drill Bit, Fully Ground, Blackoxided finish, DIN6.35E 1/4" Quick Change Hex Shank for drilling holes in various metal sheets, stainless steel, inox sheet, alloyed steel, unalloyed steel, non-ferrous metal, stainless steel sheet, fiberboard, wood board, etc.* Strict and special hardening craftsmanship to realize the M2 HSS durability and sharpness maintained for a long time.
* Fully ground does the precise size controlling under DIN338 standard and run-out concentricity under DIN1414 for H7 and H8 correctness touching.
*DIN6.35E hex shank to fit those quick-change connectors and drill chuck for DIN6.35E standard without slipping while drilling.
*Other special sizes are also available on the customers' special request.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 951.0101260 | 1.0 | 12 | 60 |
| 951.0152472 | 1.5 | 24 | 72 |
| 951.0202472 | 2.0 | 24 | 72 |
| 951.0253381 | 2.5 | 33 | 81 |
| 951.0303381 | 3.0 | 33 | 81 |
| 951.0354391 | 3.5 | 43 | 91 |
| 951.0404391 | 4.0 | 43 | 91 |
| 951.04552100 | 4.5 | 52 | 100 |
| 951.05052100 | 5.0 | 52 | 100 |
| 951.05557105 | 5.5 | 57 | 105 |
| 951.06057105 | 6.0 | 57 | 105 |
| 951.06559109 | 6.5 | 59 | 109 |
| 951.07059109 | 7.0 | 59 | 109 |
| 951.07575117 | 7.5 | 75 | 117 |
| 951.08075117 | 8.0 | 75 | 117 |
| 951.08581125 | 8.5 | 81 | 125 |
| 951.09081125 | 9.0 | 81 | 125 |
| 951.09587133 | 9.5 | 87 | 133 |
| 951.10087133 | 10.0 | 87 | 133 |
| 951.10594142 | 10.5 | 94 | 142 |
| 951.11094142 | 11 | 94 | 142 |
| 951.115101151 | 11.5 | 101 | 151 |
| 951.120101151 | 12 | 101 | 151 |
| 951.125101151 | 12.5 | 101 | 151 |
| 951.130101151 | 13 | 101 | 151 |
