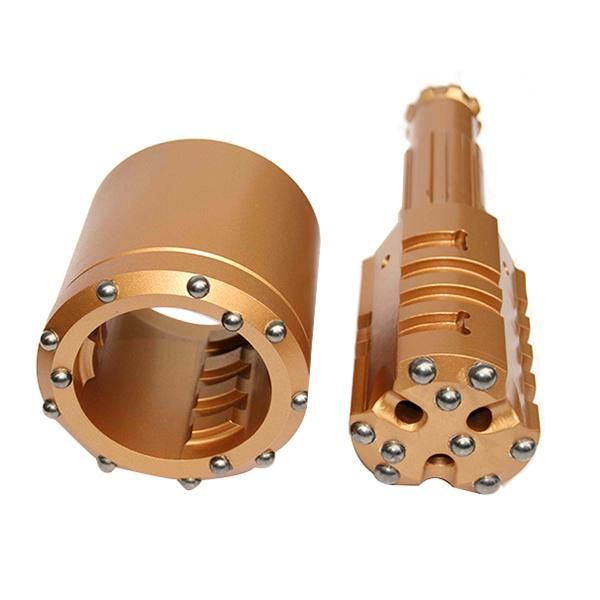

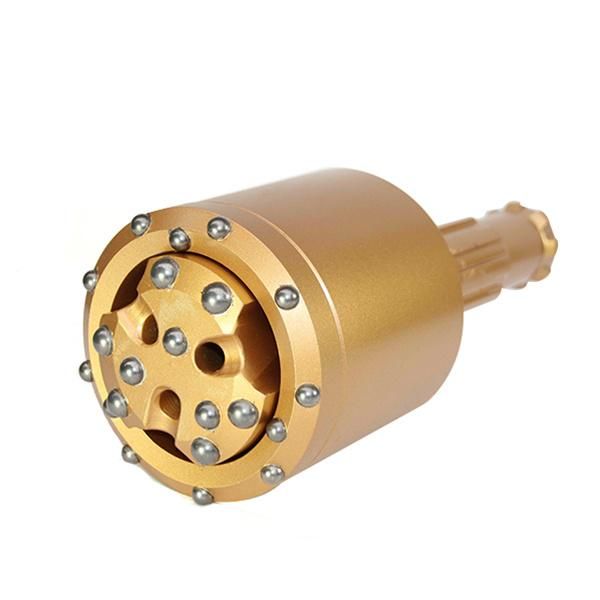

89 Mm Top Hammer Symmetric Casing System

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Type：Core Drilling Rig
  • Material：Tungsten Carbide
  • Usage：Well Drilling
  • Power Type：Electric
  • Condition：New
  • Brand：Prodrill

Base Info

  • Model NO.：Casing O. D 89mm
  • Color：Gold
  • Thread Type：T38 Thread
  • Outer Dia. of Casing Tube：89mm
  • Ring Bit - Inner Dia.：54mm
  • Ring Bit - Outer Dia.：100mm
  • Wall Thichness of Casing Tube：8mm
  • Transport Package：Wood Package
  • Specification：CE, SGS, ISO9001
  • Trademark：PRODRILL
  • Origin：China
  • HS Code：84671900
  • Production Capacity：10000pec,Months

Description


Atlas Copco SOD Permanent/Top hammer
Symmetrix overburden drilling systemOrder numberCasing wall
max. thicknessRing bitPilot bitUnitInnerOuterOuterATLAS-SOD 768418858mm0.311.613.462.26inchATLAS-SOD 8985410070mm0.312.133.942.76inchRoBit Size Permanent/Top hammer
Symmetrix overburden drilling systemCode No.Casing O.D.Wall thicknessRing bit I.D.Ring bit O.D.Polit bit O.D.ThreadmminchmminchmminchmminchmminchRoBit-SOD 89893 1/2''40.157712.795993.898803.15T38RoBit-SOD 76763''80.315471.85903.543592.323T38RoBit-SOD 89893 1/2''80.31550.8294.93.736702.756T38RoBit-SOD 101101.64''100.394652.5591104.331793.11T38RoBit-SOD 1141144 1/2''100.39473.52.894120.34.73692.53.642T38RoBit-SOD 1401405 1/2''100.394943.701145.75.736117.54.626T45RoBit-SOD 1681686 5/8''100.3941275182.37.1771475.787T4589 Mm Top Hammer Symmetric Casing System
89 Mm Top Hammer Symmetric Casing System


Our main products are as below:
Construction & Mining & Rock Drill Tools:
A. DTH Hammer and Bit (2''-24''), Overburden Drilling System; RC System.
B. Top Hammer (drill hole dia.: 33 ~ 152mm).
1) Thread Tools (Button Bits, Rod, Coupling, Shank Adaptor): (R25/28/32/38, T38/45/51, ST58,GT60).
2) High Rang Soundless Cracking Agent (dia. 40 ~ 50mm).

Quarrying Drill Tools (drill hole dia.: 17 ~ 45mm).
1) Taper Drill Tools (Bit: button/chisel; Rod: Tapered/Integral), Carbide Tips, Segment, Grinding Wheel, Grinder.
3) Pneumatic Rock Drill: Hand-held (Y24, TY24C), Air leg (YT28) and Gasoline (YN27J).
4) Expansive Mortar (dia. 30 ~ 35mm); Hydraulic Rock Splitter PD40-250, Aluminum Cylinder.
5) Air Pushing Bag, Water Bag; Pneumatica Splitter G10, Hand Splitter, etc.
6) Hydraulic Breaker hammer, Paving breaker TPB40, 60, 90 for rock or concrete demolition.
7) PD28, PD45, PD90, PD115/HC20 Excavator mounted rock drilling.

Should you are interested in our products,pls contact us freely .
We do wish we can establish the good and long-term business relations and make us stronger and mutual benefit together.
