High Quality Tungsten Carbide Chisel Insert Flat Strip for Rock Drlling
Gucheng County Huabao Alloy Co., Ltd.- Type：Tungsten Carbide Tips
- Material：Tungsten Carbide Cobalt
- Grade：K10,K20,K30,K40,P10,P20,Yg6,Yg6X,Yg8,Yt5,Yt15
- Advantage：Excellent Wear Resistant and High Hardness
- Delivery：15-20days After Receive Your Payment
- Surface Finishing：Polished or Blank
Base Info
- Model NO.：Tungsten Carbide Chisel
- Color：Iron Grey
- Using Purpose：Tips for Rock Drilling
- Wc+Co Powder：100% Virgin Material
- Trial Order：Accepted
- Transport Package：Inner Package with Box,Outer Package with Wooden C
- Specification：Tips
- Trademark：hua bao
- Origin：Hebei China
- HS Code：8208101900
- Production Capacity：5000 Mt Per Year
Description
Basic Info.
Model NO. Tungsten Carbide Chisel Color Iron Grey Using Purpose Tips for Rock Drilling Wc+Co Powder 100% Virgin Material Trial Order Accepted Transport Package Inner Package with Box,Outer Package with Wooden C Specification Tips Trademark hua bao Origin Hebei China HS Code 8208101900 Production Capacity 5000 Mt Per YearProduct Description
High Quality Tungsten Carbide Chisel Insert Flat Strip for Rock Drlling
1. Materials Specification:
| Grades | ISO Grade | Chemical Composition | Density (g/cm3) | HRA | T.R.S (N/mm2) |
| YG4C | 96%WC, 4%Co | 15.00 | 89.5 | 1800 | |
| YG6 | K20 | 94%WC, 6%Co | 14.80 | 89.5 | 1700 |
| YG8 | K20-K30 | 92%WC, 8%Co | 14.70 | 88.5 | 2300 |
| YG8C | K30 | 92%WC, coarse | 14.70 | 88.0 | 2300 |
| YG9C | YK20 | 94%WC, 6%Co | 14.45 | 87.0 | 2400 |
| YG11C | 89%WC, 11%Co | 14.40 | 86.5 | 2450 | |
| YG13C | 87%WC, 13%Co | 14.30 | 86.0 | 2500 | |
| YG15 | K40 | 85%WC, 15%Co | 14.00 | 86.5 | 2500 |
| YG16 | 84%WC, 16%Co | 14.10-14.30 | 87.5 | 2400 | |
| YG20 | 80%WC, 20%Co | 13.40-13.70 | 85.0 | 2254 |
2, Our Advantages:
1. The Cemented carbide button bits are manufactured from our premium virgin grade.
2. A tungsten carbide and cobalt combination that allow the highest wear resistance and fracture toughness possible in most application.
3. Our heat treating process has been perfected to maintain carbon control and porosity,
4. helping to eliminate premature breakage and wear.
5. Professional suggestion grade on products
6. Good wear resistance, excellent anti-impact and anti-knocking properties.
7. Generally used for drilling medium hard, hard and super hard rock formation at high pressure.
8: Various dimensions and shapes of tungsten carbide button are available here

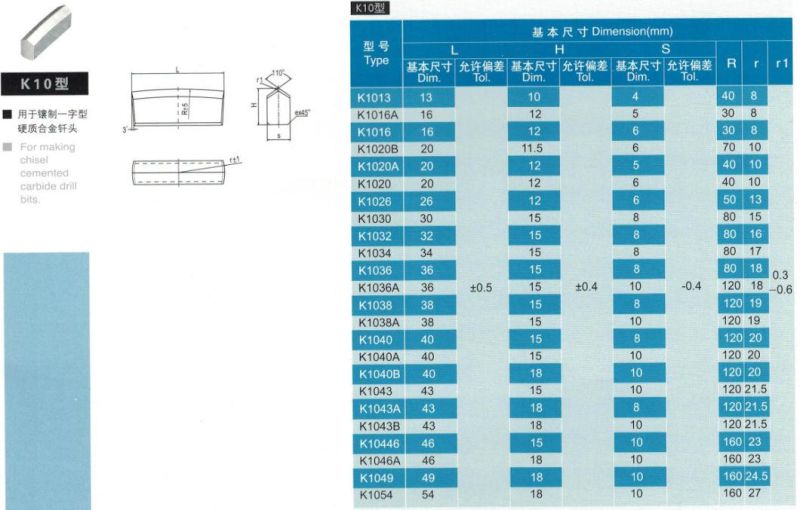

Size and Drawing,--Cutomized design is OK to make

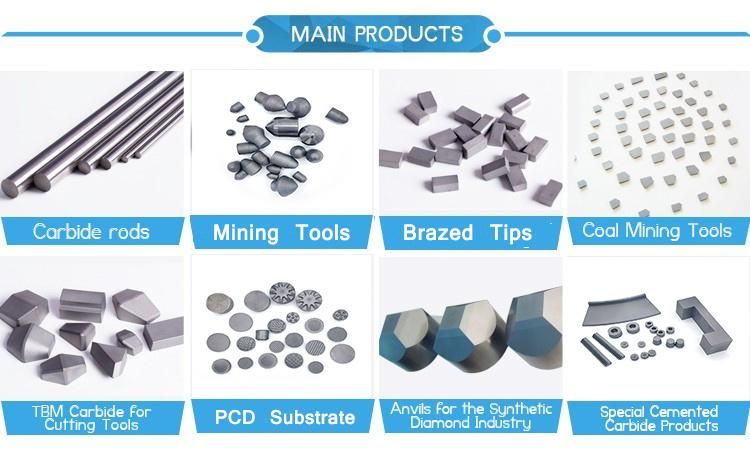

3. Main Product
1) Tungsten carbide buttons/teeth,
2) Tungsten carbide PDC substrates,
3) Tungsten carbide rods/bars,
4) Tungsten carbide brazed tips,
5) Tungsten carbide balls,
6) Tungsten Carbide Plates,
7) Tungsten Carbide Non-Standard products, etc..
