• Model NO.：DNHC
• Shank Type：Universal Shank
• Shank Diameter：19.05mm
• Surface Treatment：All-Ground
• Performance：Better Endurance
• Transport Package：Single Packing with PVC Plastic Tube

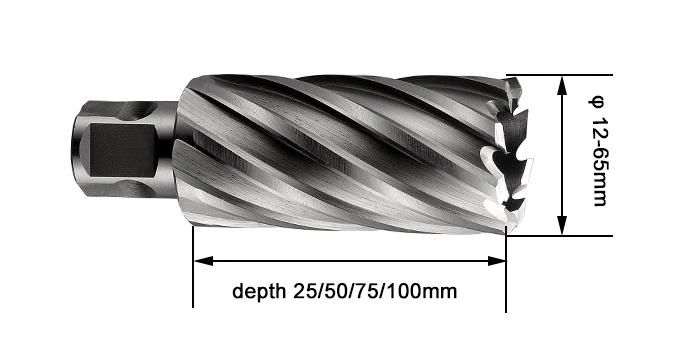

• Specification：diatemer 12-65mm
• Trademark：CHTOOLS
• Origin：China(Mainland)Zhejiang
• HS Code：8207509000
• Production Capacity：100, 000,Month

Basic Info.

Model NO. DNHC Shank Type Universal Shank Shank Diameter 19.05mm Surface Treatment All-Ground Performance Better Endurance Transport Package Single Packing with PVC Plastic Tube Specification diatemer 12-65mm Trademark CHTOOLS Origin China(Mainland)Zhejiang HS Code 8207509000 Production Capacity 100, 000/Month

Product Description

Chinese factory HSS Annular Cutter Used to Magnetic Drill


1,Employing HSS-E for production, with excellent performance of high hardness, abrasion resistance and tenacity, the product will have a very long service life under stable processing status;

2,Based on different cutting depth, designing corresponding end-edge cutting geometry, which possesses good centering and blade collapse resistance performance;

3,Possessing all the shank types, and being suitable for all the magnet-seat drilling machines worldwide;

4,Complete and advanced heat treatment process and quality inspection standard, guarantee product quality;

5,Automatic CNC machine tool processing, with consistent and stable quality.


Type	Size	Type	Size
DNHC-40120	12*50	DNHC-40350	35*50
DNHC-40130	13*50	DNHC-40360	36*50
DNHC-40140	14*50	DNHC-40370	37*50
DNHC-40150	15*50	DNHC-40380	38*50
DNHC-40160	16*50	DNHC-40390	39*50
DNHC-40170	17*50	DNHC-40400	40*50
DNHC-40175	17.5*50	DNHC-40410	41*50
DNHC-40180	18*50	DNHC-40420	42*50
DNHC-40185	18.5*50	DNHC-40430	43*50
DNHC-40190	19*50	DNHC-40440	44*50
DNHC-40200	20*50	DNHC-40450	45*50
DNHC-40210	21*50	DNHC-40460	46*50
DNHC-40215	21.5*50	DNHC-40470	47*50
DNHC-40220	22*50	DNHC-40480	48*50
DNHC-40225	22.5*50	DNHC-40490	49*50
DNHC-40230	23*50	DNHC-40500	50*50
DNHC-40240	24*50	DNHC-40510	51*50
DNHC-40250	25*50	DNHC-40520	52*50
DNHC-40260	26*50	DNHC-40530	53*50
DNHC-40270	27*50	DNHC-40540	54*50
DNHC-40280	28*50	DNHC-40550	55*50
DNHC-40290	29*50	DNHC-40560	56*50
DNHC-40300	30*50	DNHC-40570	57*50
DNHC-40310	31*50	DNHC-40580	58*50
DNHC-40320	32*50	DNHC-40590	59*50
DNHC-40330	33*50	DNHC-40600	60*50
DNHC-40340	34*50	DNHC-40650	65*50

Applicable industry

Steel structure, bridge engineering, shipbuilding, oil drilling rig, railway construction, machine manufacturing, electric power and other fields.

Applicable material

Various steel material, steel plate, stainless steel, aluminum, brass, cast iron,etc.

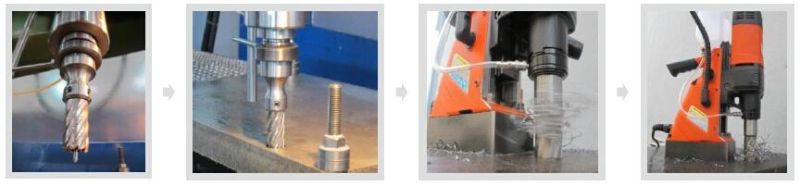

On- site operation drawing
