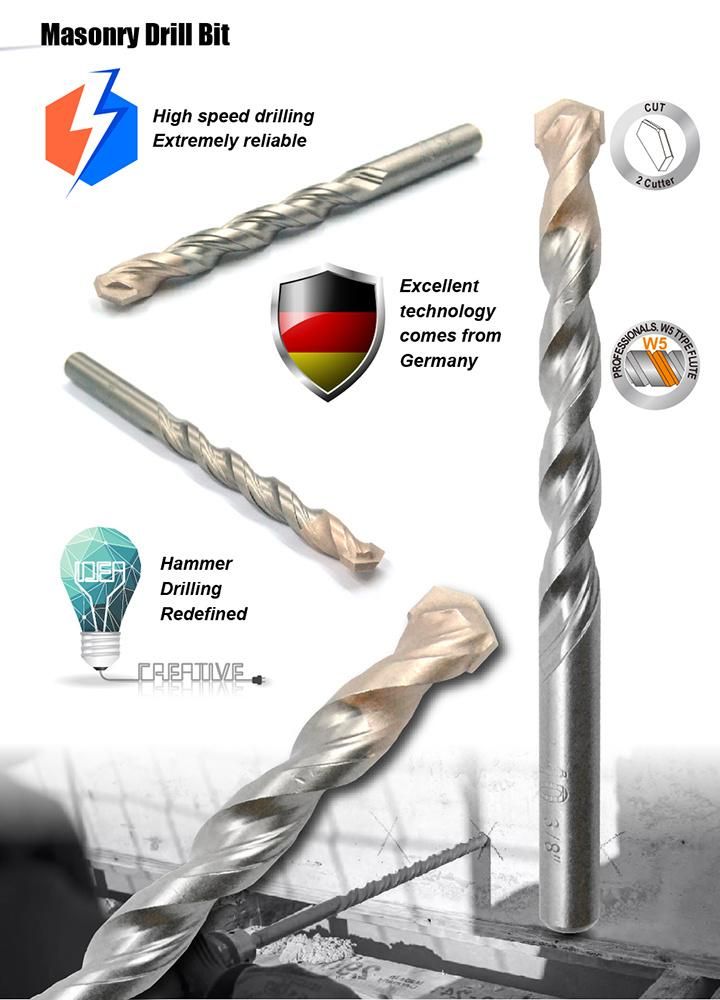

Pgm German Quality 2cutter Masonry Drill Bit Cylindrical Shank for Concrete Stone Brick Cement Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：60mm to 600mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：3372
- Carbide Type：Ceratizit Bc10
- Steel Shaft Type：40cr
- Flute Type：W5
- Cutting Head：Triangle
- Marking：Stamped
- Surface Treatment：Shot-Peened
- Shank Type：Cylindrical Shank
- Welding Type：AVS (Automatic Vacuum Soldering)
- Certificate：Pgm
- Transport Package：Blister, Skin, Sandwich, Paper Hanger, Paper Box,
- Specification：3mm to 25mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：4800000PCS,Year
Description
Basic Info.
Model NO. 3372 Carbide Type Ceratizit Bc10 Steel Shaft Type 40cr Flute Type W5 Cutting Head Triangle Marking Stamped Surface Treatment Shot-Peened Shank Type Cylindrical Shank Welding Type AVS (Automatic Vacuum Soldering) Certificate Pgm Transport Package Blister, Skin, Sandwich, Paper Hanger, Paper Box, Specification 3mm to 25mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/YearProduct Description

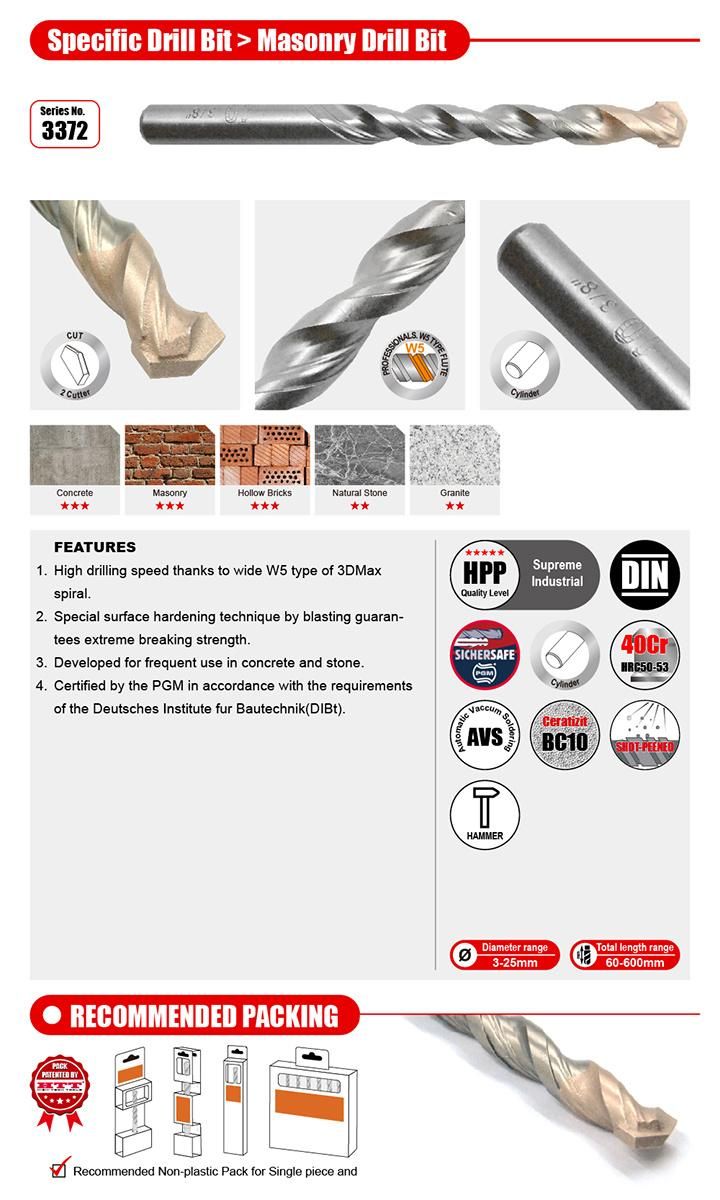

* Masonry Drill Bit Cylindrical Shank, PGM certificated, Automatic Vacuum Soldered, Shot-peened surface* Carbide tips are supplied By Ceratizit, one of the most professional tungsten carbides manufacturers in the globe, which is in Luxemburg.
* W5 flute of 3DMAX design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
* Lower vibration for an easy longer-time drilling job.
* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.
* PGM certificated carbide size, carbide welded symmetry, and rotary run-out straightness for industrial professional applications.
*Other special sizes are also available on the customers' special request.
**Note: Diameter 14mm to 25mm ones are with the reduced cylinder shank.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) | Shank Diameter mm) |
| 3372.030060 | 3 | 30 | 60 | 2.8 |
| 3372.030070 | 3 | 35 | 70 | 2.8 |
| 3372.030085 | 3 | 45 | 85 | 2.8 |
| 3372.040075 | 4 | 35 | 75 | 3.75 |
| 3372.040085 | 4 | 45 | 85 | 3.75 |
| 3372.040090 | 4 | 50 | 90 | 3.75 |
| 3372.040150 | 4 | 110 | 150 | 3.75 |
| 3372.050090 | 5 | 45 | 90 | 4.5 |
| 3372.050095 | 5 | 50 | 95 | 4.5 |
| 3372.050100 | 5 | 60 | 100 | 4.5 |
| 3372.050150 | 5 | 110 | 150 | 4.5 |
| 3372.050250 | 5 | 200 | 250 | 4.5 |
| 3372.050300 | 5 | 250 | 300 | 4.5 |
| 3372.050400 | 5 | 260 | 400 | 4.5 |
| 3372.050500 | 5 | 360 | 500 | 4.5 |
| 3372.055095 | 5.5 | 50 | 95 | 5 |
| 3372.055100 | 5.5 | 60 | 100 | 5 |
| 3372.055150 | 5.5 | 110 | 150 | 5 |
| 3372.060100 | 6 | 60 | 100 | 5.5 |
| 3372.060150 | 6 | 110 | 150 | 5.5 |
| 3372.060200 | 6 | 130 | 200 | 5.5 |
| 3372.060260 | 6 | 190 | 260 | 5.5 |
| 3372.060300 | 6 | 230 | 300 | 5.5 |
| 3372.060400 | 6 | 340 | 400 | 5.5 |
| 3372.060600 | 6 | 460 | 600 | 5.5 |
| 3372.065100 | 6.5 | 60 | 100 | 6 |
| 3372.065150 | 6.5 | 110 | 150 | 6 |
| 3372.065200 | 6.5 | 130 | 200 | 6 |
| 3372.065260 | 6.5 | 190 | 260 | 6 |
| 3372.065300 | 6.5 | 230 | 300 | 6 |
| 3372.065400 | 6.5 | 340 | 400 | 6 |
| 3372.070100 | 7 | 60 | 100 | 6.5 |
| 3372.070120 | 7 | 80 | 120 | 6.5 |
| 3372.070150 | 7 | 110 | 150 | 6.5 |
| 3372.070300 | 7 | 230 | 300 | 6.5 |
| 3372.070400 | 7 | 340 | 400 | 6.5 |
| 3372.070500 | 7 | 360 | 500 | 6.5 |
| 3372.080120 | 8 | 80 | 120 | 7.6 |
| 3372.080150 | 8 | 110 | 150 | 7.6 |
| 3372.080200 | 8 | 130 | 200 | 7.6 |
| 3372.080260 | 8 | 190 | 260 | 7.6 |
| 3372.080300 | 8 | 230 | 300 | 7.6 |
| 3372.080400 | 8 | 340 | 400 | 7.6 |
| 3372.080600 | 8 | 460 | 600 | 7.6 |
| 3372.090120 | 9 | 80 | 120 | 7.6 |
| 3372.090150 | 9 | 110 | 150 | 7.6 |
| 3372.100120 | 10 | 80 | 120 | 9 |
| 3372.100150 | 10 | 110 | 150 | 9 |
| 3372.100200 | 10 | 135 | 200 | 9 |
| 3372.100260 | 10 | 190 | 260 | 9 |
| 3372.100300 | 10 | 230 | 300 | 9 |
| 3372.100400 | 10 | 340 | 400 | 9 |
| 3372.100600 | 10 | 460 | 600 | 9 |
| 3372.120130 | 12 | 80 | 130 | 9.98 |
| 3372.120150 | 12 | 90 | 150 | 9.98 |
| 3372.120200 | 12 | 150 | 200 | 9.98 |
| 3372.120260 | 12 | 150 | 260 | 9.98 |
| 3372.120300 | 12 | 230 | 300 | 9.98 |
| 3372.120400 | 12 | 340 | 400 | 9.98 |
| 3372.120600 | 12 | 460 | 600 | 9.98 |
| 3372.121000 | 12 | 900 | 1000 | 9.98 |
| 3372.130150 | 13 | 90 | 150 | 9.98 |
| 3372.130200 | 13 | 150 | 200 | 9.98 |
| 3372.130300 | 13 | 230 | 300 | 9.98 |
| 3372.140150 | 14 | 90 | 150 | 10 |
| 3372.140200 | 14 | 135 | 200 | 10 |
| 3372.140260 | 14 | 200 | 260 | 10 |
| 3372.140300 | 14 | 230 | 300 | 10 |
| 3372.140400 | 14 | 340 | 400 | 10 |
| 3372.140600 | 14 | 460 | 600 | 10 |
| 3372.160150 | 16 | 90 | 150 | 10 |
| 3372.160200 | 16 | 135 | 200 | 10 |
| 3372.160250 | 16 | 200 | 260 | 10 |
| 3372.160300 | 16 | 230 | 300 | 10 |
| 3372.160400 | 16 | 340 | 400 | 10 |
| 3372.160600 | 16 | 460 | 600 | 10 |
| 3372.180160 | 18 | 100 | 160 | 10 |
| 3372.180200 | 18 | 135 | 200 | 10 |
| 3372.180300 | 18 | 230 | 300 | 10 |
| 3372.180400 | 18 | 340 | 400 | 10 |
| 3372.180600 | 18 | 460 | 600 | 10 |
| 3372.200160 | 20 | 100 | 160 | 10 |
| 3372.200200 | 20 | 135 | 200 | 10 |
| 3372.200260 | 20 | 200 | 260 | 10 |
| 3372.200300 | 20 | 230 | 300 | 10 |
| 3372.200400 | 20 | 340 | 400 | 10 |
| 3372.200600 | 20 | 460 | 600 | 10 |
| 3372.220160 | 22 | 100 | 160 | 10 |
| 3372.220200 | 22 | 135 | 200 | 10 |
| 3372.220300 | 22 | 230 | 300 | 10 |
| 3372.220400 | 22 | 340 | 400 | 10 |
| 3372.250160 | 25 | 100 | 160 | 13 |
| 3372.250200 | 25 | 135 | 200 | 13 |
| 3372.250300 | 25 | 230 | 300 | 13 |
| 3372.250400 | 25 | 340 | 400 | 13 |
