• Model NO.：DHD350-152MM
• Model Number：DHD350
• Machine Type：DTH Drill Bit
• Processing：Forging
• Color：Red, Black, Yellow, White
• Transport Package：Wood Package
• Specification：CE
• Trademark：PRODRILL
• Origin：China
• HS Code：82071990
• Production Capacity：10000pec,Months

Basic Info.

Model NO. DHD350-152MM Model Number DHD350 Machine Type DTH Drill Bit Processing Forging Color Red, Black, Yellow, White Transport Package Wood Package Specification CE Trademark PRODRILL Origin China HS Code 82071990 Production Capacity 10000pec/Months

Product Description

Product Name:	DTH drill bits
Description:	DTH drill bits are used for blast hole drilling and water well drilling projects. Working with DTH hammer, mainly applied in Mining, Marble quarry or well drilling and other construction projects.
Material:	High quality carbide + High quality carbon steel
MOQ:	5pcs
Compatibility Series:	COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc



Specification:	Diameter: (mm)	Weight: (kg)
Low air pressure DTH bits CIR type	68 ~ 200	2.6 ~ 48
Middle air pressure BR & COP type	76 ~ 110	3.8 ~ 15
3 inch high Air pressure DTH bits	85 / 90 / 95 / 100 / 105	4.2 ~ 5.5
4 inch high Air pressure DTH bits	105 / 110 / 115 / 120 / 127	9 ~ 12
5 inch high Air pressure DTH bits	133 / 140 / 146 / 152 / 165	15 ~ 18.5
6 inch high Air pressure DTH bits	152 / 165 / 178 / 190 / 203	26 ~ 36
8 inch high Air pressure DTH bits	195 / 203 / 216 / 254 / 305	33 ~ 95

ProDrill rock drilling tools manufacturer produces a various range of DTH hammer bits with DHD shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.

• Code No.: DHD350-152
• Diameter: 152mm
• Air Holes No.: 2
• Gauge Buttons: 8*17mm
• Face Buttons: 8*14mm
• Face Design: Flat
• Carbide Design: Dome/Semi-ballistic
• Shank Type: DHD

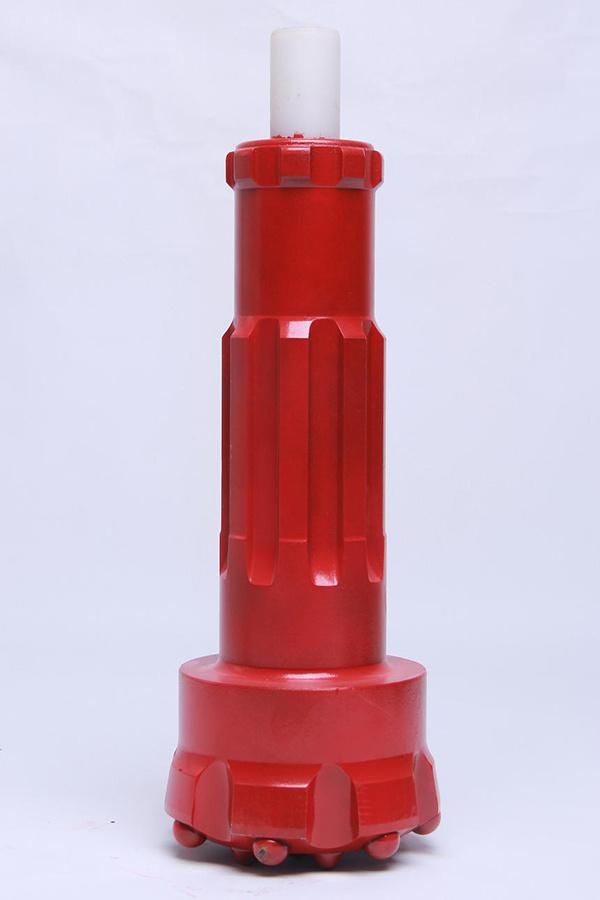

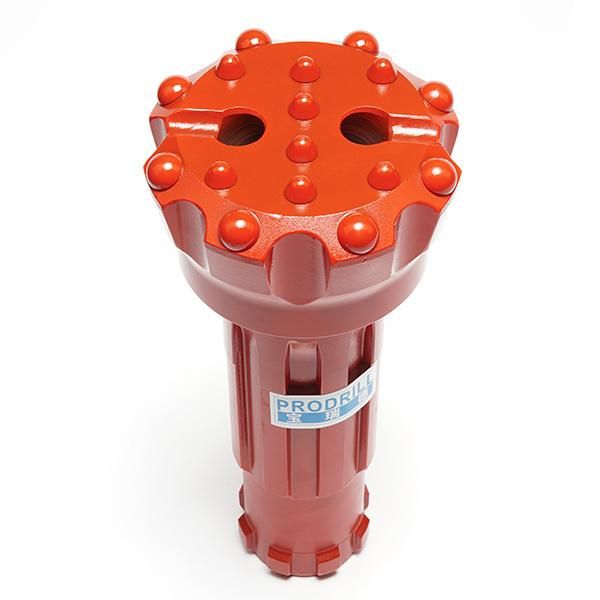

DHD350-152 DTH Hammer Bit

Shank types: DHD3.5, DHD340A, DHD350, DHD360, DHD380.
DTH rock drill bits hole diameter: 3", 4", 5", 6", 8"(85mm-305mm)

DHD350-152 DTH Hammer Bit

1.Flat Face:An universal design, especially for hard and abrasive rock formation. Typically, flat face with hemispherical buttons design is the most popular choice. This kind of face shape is suitable for hard to very hard and abrasive rock formations in application with high air pressure. Good penetration rates an resistance to steel wash.

2.Dome/Hemispherical Buttons:Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

3.Semi-Ballistic/Parabolic Buttons:Excellent penetration rate, but only suited to medium hard and not so very abrasive rock formation.

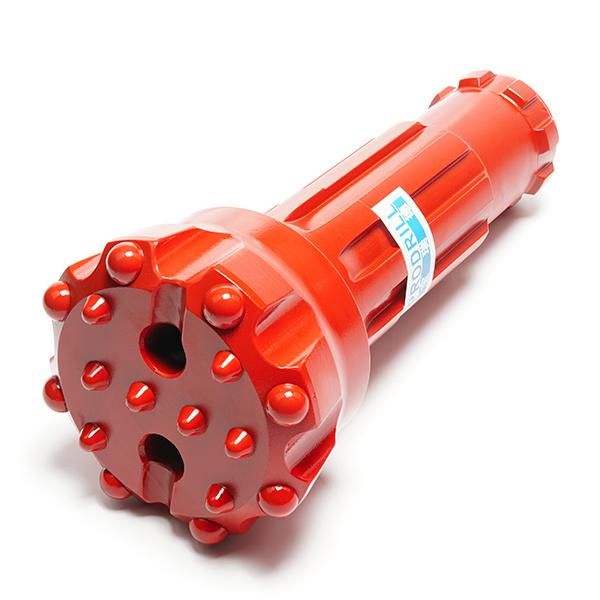

DHD shank DTH drill bit with flat face, 8 dome & 8 semi-ballistic carbide buttons for blasting bore holes, water well drilling.

DTH hammer bit with foot valve.

(1) Made from premium quality nickel-alloy steel 25SiMnCrNi2MoVA
for increased durability and wear characteristics,  and YK 05 tungsten
carbide as same grade as internationally well-known brand
(2) Apply "hot (thermal) -insertion" processing procedure to
insert the buttons as same as internationally well-known brand,
(3) Entire CNC processing procedure ensure the quality consistency and reliable.
(4) Military grade requirements of heat-treatment guarantee durability,
Specific heat treatment standards and special "stress relief" processes ensure
consistent performance.
(5) Designed for maximum performance and hole cleaning ability and high penetration rate.

Pro Drill DTH bits are interchangeable with Atlas Copco's COP32 34 44 54 64 84,
Ingersoll-Rand 's DHD3.5,DHD3.5HD, DHD 340A , DHD350R, DHD 360, DHD380
QL40, QL50 , QL60, QL80.


Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory
