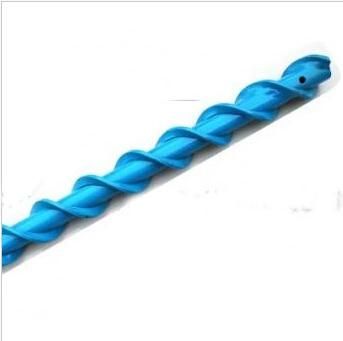

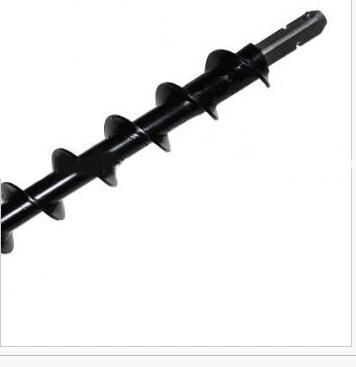

20, 30mm Compound High Efficiency Spiral Drill Rod

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Standard：GS
  • Material：Carbon Steel
  • Precision：High Precision
  • Automatic Grade：Automatic
  • Structure：Vertical Drilling Machine
  • Layout：Vertical

Base Info

  • Model NO.：28, 30, 38, 40, 75, 98mm
  • Condition：New
  • Hole Diameter：28-113mm
  • Lenth：500-3000mm
  • Spiral Diameter：28, 30, 32, 38, 40, 42, 69, 75, 89, 98, 113
  • Connector Size：F12*48, F14*50,80, B45*100
  • Tube Diameter：18, 21, 22, 25, 27, 50, 63, 73
  • Transport Package：Wire Bundle, 5-10 PCS Per Bundle
  • Specification：SGS, CE
  • Trademark：Prodrill
  • Origin：China
  • HS Code：84314320
  • Production Capacity：3000 Sets,Month

Description

Specifaction and Size(mm)Torque(N.m)Connection typeDia.(spairl+tube)tube dialengthConnector sizeΦ40Φ20500-3000F14*80200-250ThreadΦ42Φ22500-3000F14*80250-350Square shankΦ45Φ22500-3000F14*80250-350Square shankΦ55Φ25500-3000F18*80350-450Square shankΦ65Φ25-32500-3000F18*80450-550Square shankΦ75Φ25-32500-3000F24*85450-550Square shankΦ85Φ32-42500-3000F24*85550-750Square shankΦ90Φ42-50500-3000F30*853500-4500Hex.shankΦ110Φ42-50500-3000F32*853500-4500Hex.shankΦ133Φ50-63500-3000F34*907500-8500Hex.shank
