Re531/Re004/Re542/Re543/Re545/Re547/Pr52/Pr54 Reverse Circulation RC Hammer Button Bit

Xiamen Sansung Mining Equipment Co., Ltd.
  • Customized:Non-Customized
  • Standard:ISO9001
  • Length:Standard Length
  • Type:Center Drill Bit
  • Material:Tungsten Carbide
  • Usage:Well Drilling, Masonry Drilling, Ore Mining

Base Info

  • Model NO.:RE531,RE004,RE542,RE543,RE545,RE547,PR52,PR54
  • Color:on Request
  • Condition:100% New
  • Processing Type:Forging
  • Steel Material:High Carbon Steel
  • Quality:Excellent
  • Delivery Time:20-25 Days
  • MOQ:1PCS
  • After Sale Service:Yes
  • OEM/ODM:Yes
  • Transport Package:Plywood
  • Specification:3-5.5 inch
  • Trademark:Sansung
  • Origin:China
  • HS Code:82079010
  • Production Capacity:5000 Pieces,Month

Description

Basic Info.

Model NO. RE531/RE004/RE542/RE543/RE545/RE547/PR52/PR54 Color on Request Condition 100% New Processing Type Forging Steel Material High Carbon Steel Quality Excellent Delivery Time 20-25 Days MOQ 1PCS After Sale Service Yes OEM/ODM Yes Transport Package Plywood Specification 3-5.5 inch Trademark Sansung Origin China HS Code 82079010 Production Capacity 5000 Pieces/Month

Product Description

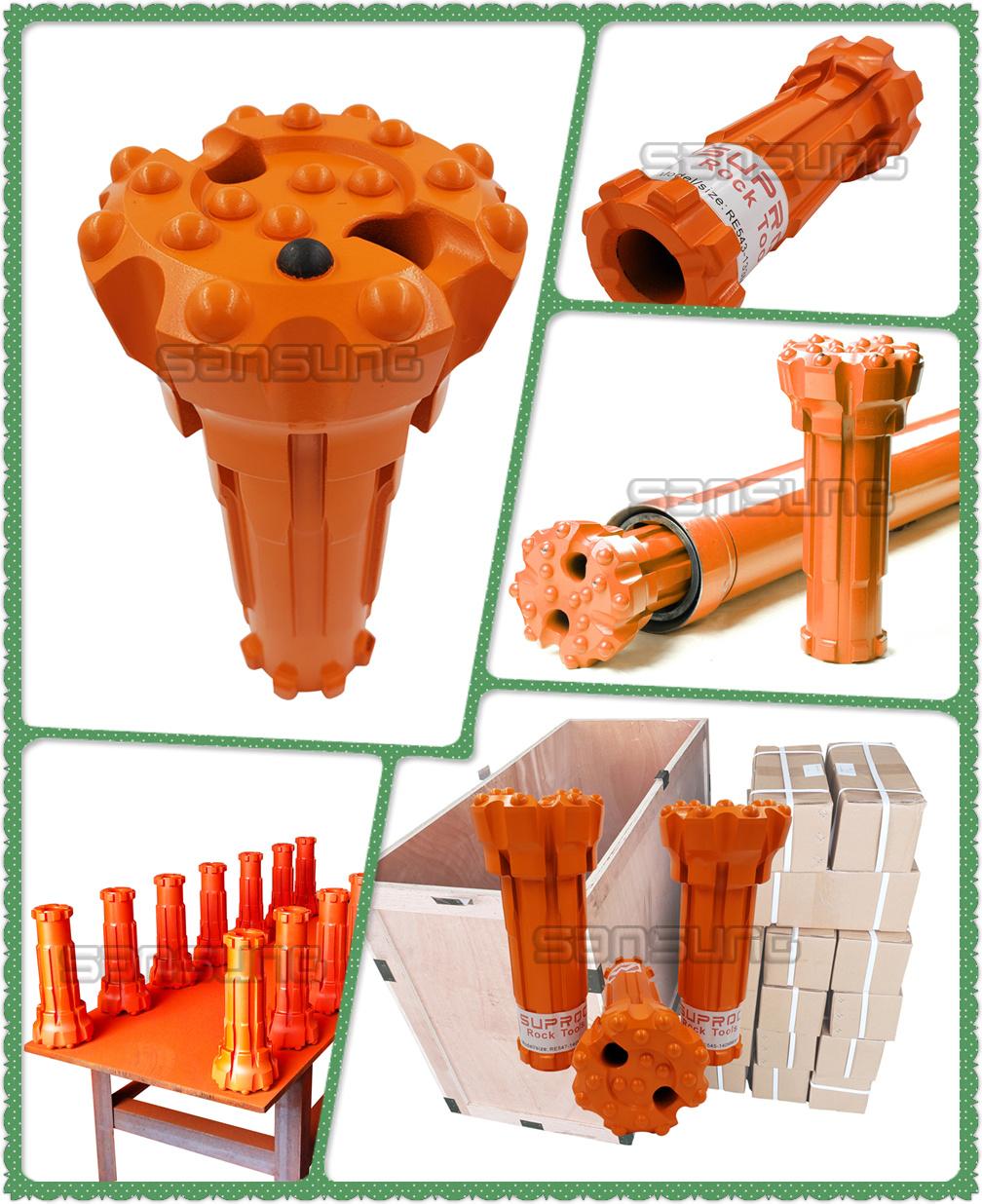

Re531/Re004/Re542/Re543/Re545/Re547/Pr52/Pr54 Reverse Circulation RC Hammer Button Bit

Re531/Re004/Re542/Re543/Re545/Re547/Pr52/Pr54 Reverse Circulation RC Hammer Button Bit

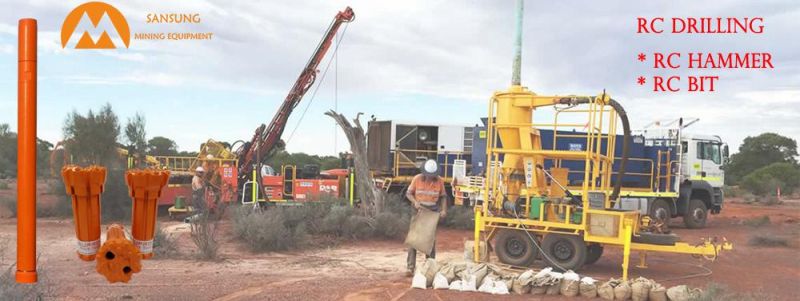

Reverse Circulation (RC) drilling is used to collect mineral and rock samples quickly and efficiently using a large rotary drill and air compressor. Reverse Circulation (or RC) drilling is one of the most frequently used methods of drilling used across the world as it is more cost effective and efficient then other methods of drilling. When compared to RAB (Rotary Air Blast) and diamond drilling, RC drilling seems to be somewhere in the middle when it comes to cost, time, quality of samples, technique and depth.

Applications:
RC drilling is a technique used in the majority of stages of mine development.
As it is cheaper than diamond core drilling, it is often used in first stage exploration mining to delineate a potentially extractable ore body. It is also preferable to RAB or air-core drilling when trying to reach great depths, but RC drilling is slower and more expensive than either of these two methods.
RC drilling is also consistently used during in-pit grade control and the development stage of an ore body.


Basics of Reverse Circulation Drilling:
(1) RC drilling uses rods with inner and outer tubes, the drill cuttings are returned to surface inside the rods. The drilling mechanism is a pneumatic reciprocating piston known as a hammer driving a tungsten-steel drill bit.
(2) RC drilling utilizes much larger rigs and machinery and depths of up to 500 meters are routinely achieved. RC drilling ideally produces dry rock chips, as large air compressors dry the rock out ahead of the advancing drill bit.
(3) RC drilling is slower and costlier but achieves better penetration than RAB or air core drilling; it is cheaper than diamond coring and is thus preferred for most mineral exploration work.
(4) Reverse circulation is achieved by blowing air down the annulus of the rod, the differential pressure creating air lift of the water and cuttings up the inner tube which is inside each rod. It reaches the deflector box at the top of the drill string then moves through a sample hose which is attached to the top of the cyclone.
The drill cuttings travel around the inside of the cyclone until they fall through an opening at the bottom and are collected in a sample bag. For any drill hole there will be a large number of sample bags, each one marked to record the location and drilling depth that the sample was obtained.
The collected series of sample bag cuttings are later taken for analysis to determine the mineral composition of the drill hole. The analysis results of each individual bag represents the mineral composition at a particular sample point in the drill hole. Geologists can then survey the drilled ground analysis and make decisions about the value of the overall mineral deposit.

Advantages of Reverse Circulation Drilling
Compared to core drilling, RC drilling with inherently faster penetration rates provides several benefits:
  • Direct drilling cost reductions in the range of 25% to 40%.
  • Faster completion of drill programs with quicker delivery of results.
  • Reduced man-hours at the drill with decreased exposure to potential accidents.
  • Reduced contractor activity in the mine reduces mine support burden.
  • Indirect cost reductions gained from a simplified sampling process.
  • Requires less water than diamond drilling.
RC samples are collected at the drill and sent directly to the assay lab. Unlike diamond drill core, which is generally logged, photographed, split for sample, assayed and warehoused, RC sampling requires much less handling resulting in faster assay turnaround with accompanying cost reductions. Larger volume RC samples often give more representative gold samples than split half core samples.
Hammer
Model
Hole Range
(mm)
External Diameter
(mm)
Length
(without bit)
mm
Connection ThreadWorking Pressure
RE53184-1008110693" Remet1.0-3.0Mpa
RE004111-12710712523.5-4" Remet
4" Metzke
1.0-3.0Mpa
RE542113-130109.511913.5-4" Remet
4" Metzke
1.0-3.0Mpa
RE543120-13511611913.5-4 Remet
4" Metzke
1.0-3.0Mpa
RE545122-135117.512614-4.5" Remet
4-4.5" Metzke
1.5-3.5Mpa
RE547130-146124.512704.5" Remet
4.5" Metzke
1.5-3.5Mpa
PR40124-142120.513623.5-4.5" Remet
3.5-4.5" Metzke
1.5-3.5Mpa
PR52126-14212112274-4.5" Remet
4-4.5" Metzke
1.5-3.5Mpa
PR52R130-14612412254-4.5" Remet
4-4.5" Metzke
1.5-3.5Mpa
PR54135-15013012944.5" Remet
4.5" Metzke
1.5-3.5Mpa
MX5456136-15013213624.5" Remet
4.5" Metzke
1.5-3.5Mpa
RC62/RC62R152-1901461320As Request1.5-3.5Mpa
RC82/RC82R190-2501801395As Request1.5-3.5Mpa
RC100/RC100R250-3702401528As Request1.5-3.5Mpa

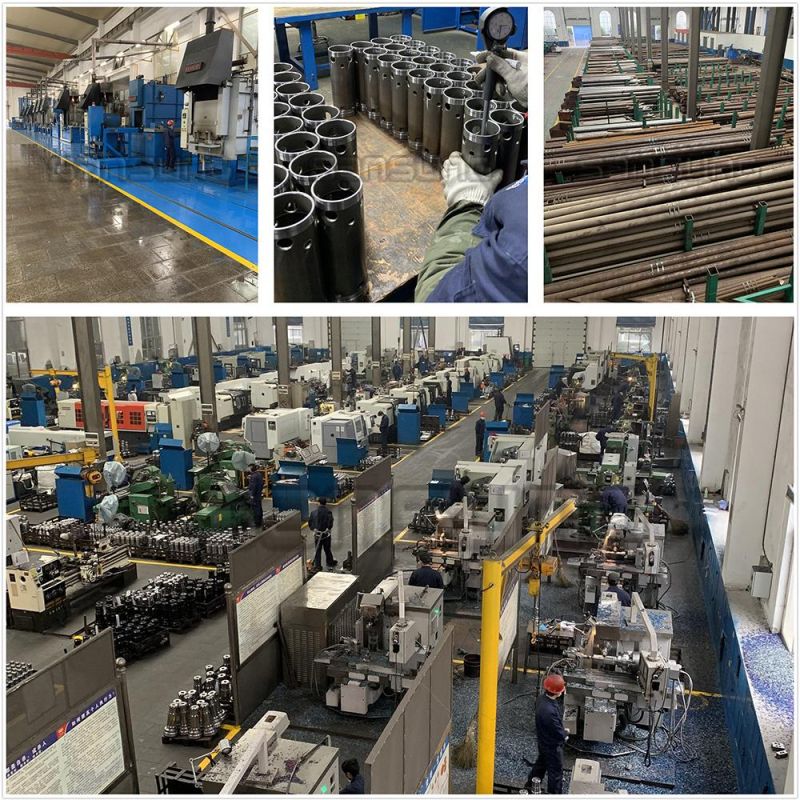

Productions line:
Re531/Re004/Re542/Re543/Re545/Re547/Pr52/Pr54 Reverse Circulation RC Hammer Button Bit
Re531/Re004/Re542/Re543/Re545/Re547/Pr52/Pr54 Reverse Circulation RC Hammer Button Bit
Re531/Re004/Re542/Re543/Re545/Re547/Pr52/Pr54 Reverse Circulation RC Hammer Button Bit
