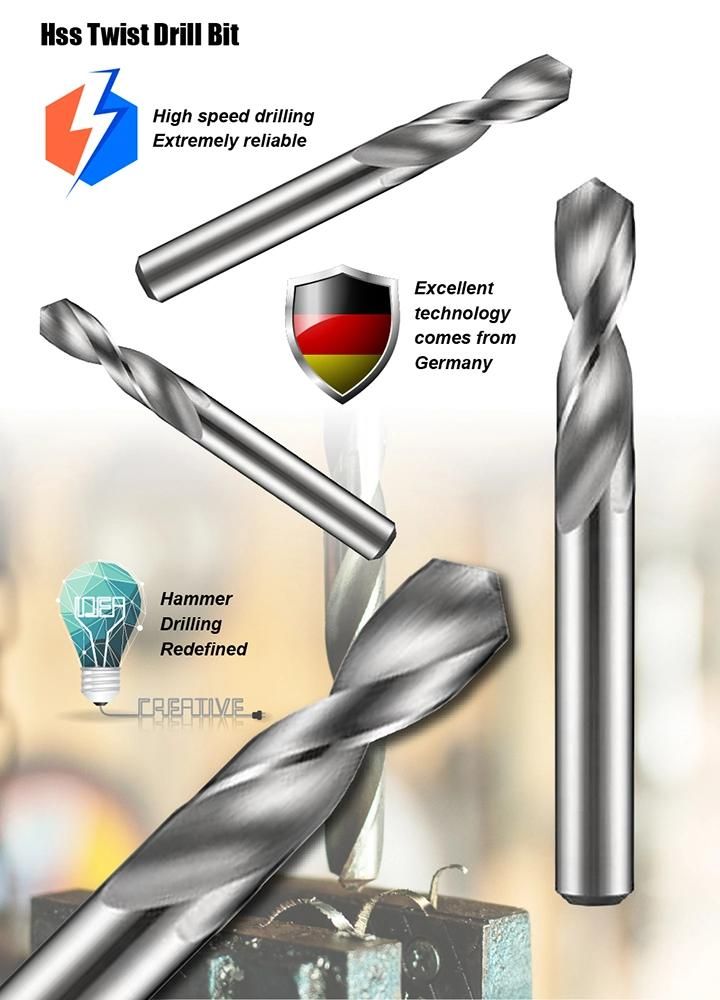

Supreme Quality HSS M2 Twist Stubby Drill Bit DIN1897 Rn Cylindrical Shank for Metal Steel Stainless Steel Alloyed Unalloyed Non-Ferrous Metal Board Sheet Drill
ZHENJIANG HTT TOOL CO., LTD.- Customized:Customized
- Standard:DIN
- Length:26mm to 131mm
- Type:Twist Drill Bit
- Material:High Speed Steel
- Usage:Metal Drilling
Base Info
- Model NO.:902
- Steel Type:HSS M2
- Flute Type:N
- Rotation Direction:Right
- Surface Treatment:Bright Finished
- Tip Point:118degrees,135degrees Split Point
- Marking:Laser Marking
- Standard Type:DIN1897
- Shank Type:Cylindrical
- Transport Package:Blister, Skin, PVC Bag, Color Paper Hanger, Paper
- Specification:1mm to 20mm diameter
- Trademark:OEM, HTT
- Origin:China
- HS Code:8207509000
- Production Capacity:4800000PCS,Year
Description
Basic Info.
Model NO. 902 Steel Type HSS M2 Flute Type N Rotation Direction Right Surface Treatment Bright Finished Tip Point 118degrees/135degrees Split Point Marking Laser Marking Standard Type DIN1897 Shank Type Cylindrical Transport Package Blister, Skin, PVC Bag, Color Paper Hanger, Paper Specification 1mm to 20mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/YearProduct Description

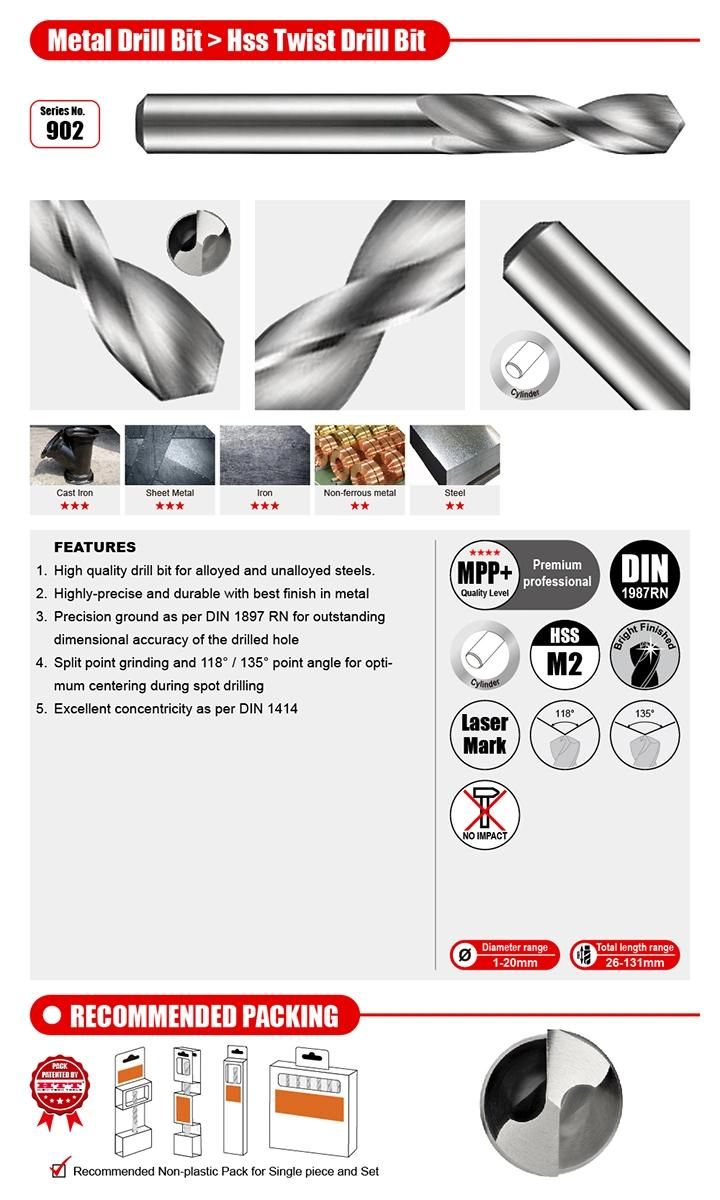

*HSS M2 Twist Stubby Drill Bit, Fully Ground, Bright finish, DIN1897 ,Cylindrical Shank for drilling holes in various metal sheets, stainless steel, inox sheet, alloyed steel, unalloyed steel, non-ferrous metal, stainless steel sheet, fiberboard, wood board, etc.* Strict and special hardening craftsmanship to realize the M2 HSS durability and sharpness maintaining for long time.
* Fully ground does the precise size controlling under DIN1897 standard and run-out concentricity under DIN1414 for H8 correctness touching.
*Other special sizes are also available on the customers' special request.
* Diameter 1.0mm to 2.9mm with 118degrees tip point.
* Diameter 3.0mm to 20mm with 135degrees split point
*Note: : Diameter 13.5-20mm drill with the reduced shank 12.7mm
Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
902.010026 | 1.00 | 6 | 26 |
902.011028 | 1.10 | 7 | 28 |
902.012030 | 1.20 | 8 | 30 |
902.013030 | 1.30 | 8 | 30 |
902.014032 | 1.40 | 9 | 32 |
902.015032 | 1.50 | 9 | 32 |
902.016034 | 1.60 | 10 | 34 |
902.017034 | 1.70 | 10 | 34 |
902.018036 | 1.80 | 11 | 36 |
902.019036 | 1.90 | 11 | 36 |
902.020038 | 2.00 | 12 | 38 |
902.020538 | 2.05 | 12 | 38 |
902.021038 | 2.10 | 12 | 38 |
902.021540 | 2.15 | 13 | 40 |
902.022040 | 2.20 | 13 | 40 |
902.022540 | 2.25 | 13 | 40 |
902.023040 | 2.30 | 13 | 40 |
902.023540 | 2.35 | 13 | 40 |
902.024043 | 2.40 | 14 | 43 |
902.024543 | 2.45 | 14 | 43 |
902.025043 | 2.50 | 14 | 43 |
902.025543 | 2.55 | 14 | 43 |
902.026043 | 2.60 | 14 | 43 |
902.026543 | 2.65 | 14 | 43 |
902.027046 | 2.70 | 16 | 46 |
902.027546 | 2.75 | 16 | 46 |
902.028046 | 2.80 | 16 | 46 |
902.028546 | 2.85 | 16 | 46 |
902.029046 | 2.90 | 16 | 46 |
902.030046 | 3.00 | 16 | 46 |
902.031049 | 3.10 | 18 | 49 |
902.032049 | 3.20 | 18 | 49 |
902.033049 | 3.30 | 18 | 49 |
902.034052 | 3.40 | 20 | 52 |
902.035052 | 3.50 | 20 | 52 |
902.036052 | 3.60 | 20 | 52 |
902.037052 | 3.70 | 20 | 52 |
902.038052 | 3.80 | 22 | 55 |
902.039055 | 3.90 | 22 | 55 |
902.040055 | 4.00 | 22 | 55 |
902.041055 | 4.10 | 22 | 55 |
902.042055 | 4.20 | 22 | 55 |
902.043058 | 4.30 | 24 | 58 |
902.044058 | 4.40 | 24 | 58 |
902.045058 | 4.50 | 24 | 58 |
902.046058 | 4.60 | 24 | 58 |
902.047058 | 4.70 | 24 | 58 |
902.048062 | 4.80 | 26 | 62 |
902.049062 | 4.90 | 26 | 62 |
902.050062 | 5.00 | 26 | 62 |
902.051062 | 5.10 | 26 | 62 |
902.052062 | 5.20 | 26 | 62 |
902.053062 | 5.30 | 26 | 62 |
902.054066 | 5.40 | 28 | 66 |
902.055066 | 5.50 | 28 | 66 |
902.056066 | 5.60 | 28 | 66 |
902.057066 | 5.70 | 28 | 66 |
902.058066 | 5.80 | 28 | 66 |
902.059066 | 5.90 | 28 | 66 |
902.060066 | 6.00 | 28 | 66 |
902.061070 | 6.10 | 31 | 70 |
902.062070 | 6.20 | 31 | 70 |
902.063070 | 6.30 | 31 | 70 |
902.064070 | 6.40 | 31 | 70 |
902.065070 | 6.50 | 31 | 70 |
902.066070 | 6.60 | 31 | 70 |
902.067070 | 6.70 | 31 | 70 |
902.068074 | 6.80 | 34 | 74 |
902.069074 | 6.90 | 34 | 74 |
902.070074 | 7.00 | 34 | 74 |
902.071074 | 7.10 | 34 | 74 |
902.072074 | 7.20 | 34 | 74 |
902.073074 | 7.30 | 34 | 74 |
902.074074 | 7.40 | 34 | 74 |
902.075074 | 7.50 | 34 | 74 |
902.076079 | 7.60 | 37 | 79 |
902.077079 | 7.70 | 37 | 79 |
902.078079 | 7.80 | 37 | 79 |
902.079079 | 7.90 | 37 | 79 |
902.080079 | 8.00 | 37 | 79 |
902.081079 | 8.10 | 37 | 79 |
902.082079 | 8.20 | 37 | 79 |
902.083079 | 8.30 | 37 | 79 |
902.084079 | 8.40 | 37 | 79 |
902.085079 | 8.50 | 37 | 79 |
902.086084 | 8.60 | 40 | 84 |
902.087084 | 8.70 | 40 | 84 |
902.088084 | 8.80 | 40 | 84 |
902.089084 | 8.90 | 40 | 84 |
902.090084 | 9.00 | 40 | 84 |
902.091084 | 9.10 | 40 | 84 |
902.092084 | 9.20 | 40 | 84 |
902.093084 | 9.30 | 40 | 84 |
902.094084 | 9.40 | 40 | 84 |
902.095084 | 9.50 | 40 | 84 |
902.096089 | 9.60 | 43 | 89 |
902.097089 | 9.70 | 43 | 89 |
902.098089 | 9.80 | 43 | 89 |
902.099089 | 9.90 | 43 | 89 |
902.100089 | 10.00 | 43 | 89 |
902.101089 | 10.10 | 43 | 89 |
902.102089 | 10.20 | 43 | 89 |
902.103089 | 10.30 | 43 | 89 |
902.104089 | 10.40 | 43 | 89 |
902.105089 | 10.50 | 43 | 89 |
902.106089 | 10.60 | 43 | 89 |
902.107095 | 10.70 | 47 | 95 |
902.108095 | 10.80 | 47 | 95 |
902.109095 | 10.90 | 47 | 95 |
902.110095 | 11.00 | 47 | 95 |
902.111095 | 11.10 | 47 | 95 |
902.112095 | 11.20 | 47 | 95 |
902.113095 | 11.30 | 47 | 95 |
902.114095 | 11.40 | 47 | 95 |
902.115095 | 11.50 | 47 | 95 |
902.116095 | 11.60 | 47 | 95 |
902.117095 | 11.70 | 47 | 95 |
902.118095 | 11.80 | 47 | 95 |
902.119102 | 11.90 | 51 | 102 |
902.120102 | 12.00 | 51 | 102 |
902.121102 | 12.10 | 51 | 102 |
902.122102 | 12.20 | 51 | 102 |
902.123102 | 12.30 | 51 | 102 |
902.124102 | 12.40 | 51 | 102 |
902.125102 | 12.50 | 51 | 102 |
902.126102 | 12.60 | 51 | 102 |
902.127102 | 12.70 | 51 | 102 |
902.128102 | 12.80 | 51 | 102 |
902.129102 | 12.90 | 51 | 102 |
902.130102 | 13.00 | 51 | 102 |
902.135107 | 13.50 | 54 | 107 |
902.136107 | 13.60 | 54 | 107 |
902.137107 | 13.70 | 54 | 107 |
902.138107 | 13.80 | 54 | 107 |
902.139107 | 13.90 | 54 | 107 |
902.140107 | 14.00 | 54 | 107 |
902.145111 | 14.50 | 56 | 111 |
902.150111 | 15.00 | 56 | 111 |
902.155115 | 15.50 | 58 | 115 |
902.160115 | 16.00 | 58 | 115 |
902.165119 | 16.50 | 60 | 119 |
902.170119 | 17.00 | 60 | 119 |
902.175123 | 17.50 | 62 | 123 |
902.180123 | 18.00 | 62 | 123 |
902.185127 | 18.50 | 64 | 127 |
902.190127 | 19.00 | 64 | 127 |
902.195131 | 19.50 | 66 | 131 |
902.200131 | 20.00 | 66 | 131 |
