• Model NO.：SED-HTMB
• Dia Size：10.5mm-20mm
• Production Art：Fully Ground or Forged
• Min Quantity：1000PCS,Size
• Packing：PVC Bag,Setcase,Plastic Box,Metal Box
• Surface Finish：Black Oxide
• Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
• Specification：ISO9001, SGS, CE
• Trademark：EASYDRILL
• Origin：China
• HS Code：820750900
• Production Capacity：200, 000PCS,Month

Procuct NameBlack Finish Milled DIN345 Morse HSS Taper Shank Twist Drills for Metal DrillingMaterialHSS 4241,4341,6542-M2  (Cobalt 5% M35 is Available)Process Milled (Roll Forged is Available)Standard

DIN345  (ANSI,DIN341, DIN1870 are Also Available)

MT No.

No.1 to No.6

Size7.5mm-100mm and 3/8" to 4"Flute TypeType N, Right Hand CuttingPoint Angle118 Degree  (135 Degree Split Point, Thinning Point are Available)Surface FinishBlack Oxide (Black & White, Gray & Bright, Bright, Amber Color, Titanium Coating are Also available)PackageOne Piece in Paper Box,Plastic Box,Wood Box.Features

1,Precise dimension,long life and high efficiency.

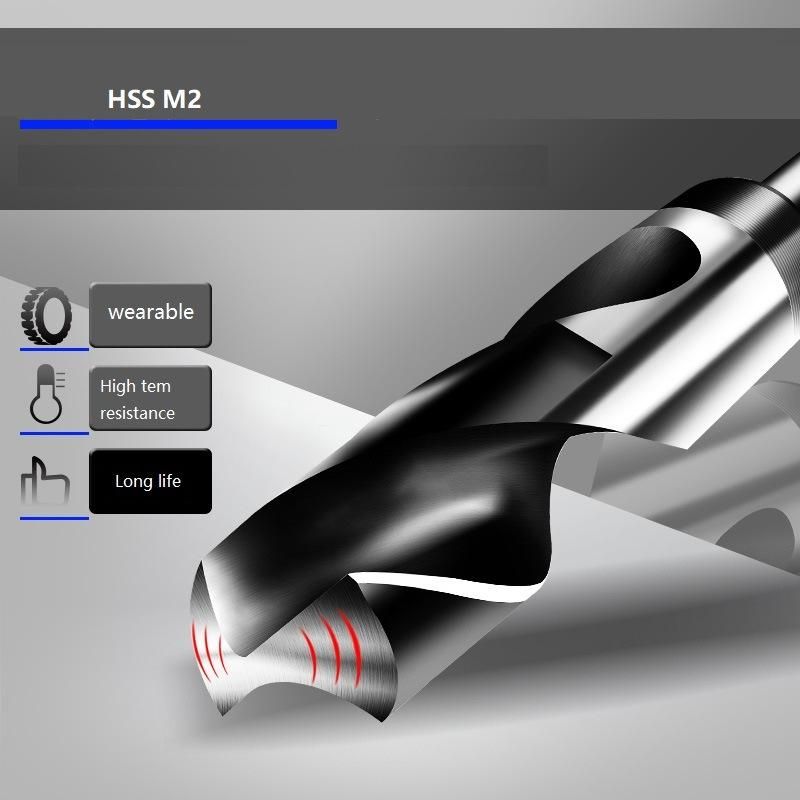

2,High-speed steel (HSS) provides hardness for wear resistance

3,Black oxide finish reduces wear while promoting chip and coolant flow on ferrous materials

4,Self-centering 118-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge

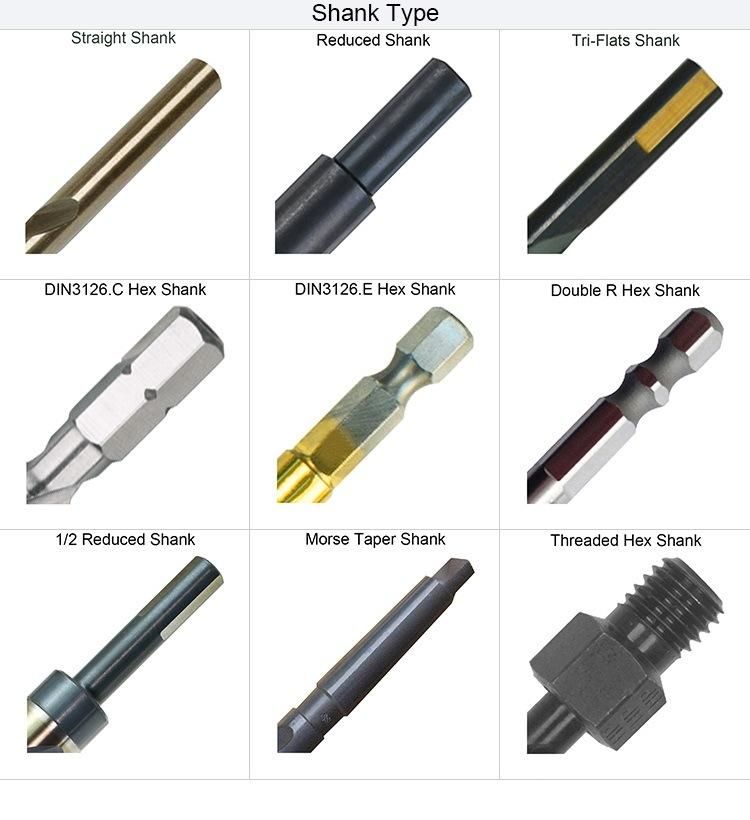

5,Morse taper shank allows the tool to be inserted directly into the machine's spindle to facilitate high-torque applications such as large cut diameters

6,When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging

7,Designed to perform in a broad range of materials in the iron and steel families

8,Spiral flutes are constructed with a higher flute angle to remove chips more easily.
