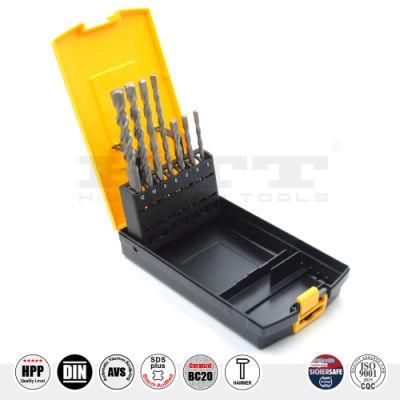

Pgm German Quality 7PCS Hammer Drill Set SDS Plus in Rose Plastic Box for Concrete Brick Stone Cement Drilling

ZHENJIANG HTT TOOL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：110 to 160mm
  • Type：Twist Drill Bit
  • Material：Tungsten Carbide
  • Usage：Masonry Drilling

Base Info

  • Model NO.：PL0720202
  • Carbide Type：Ceratizit Bc20
  • Steel Type：35CrMo and 40cr
  • Flute Type：H
  • Cutting Head：Splus W Type
  • Marking：Stamped
  • Surface Treatment：Shot-Peened
  • Shank Type：SDS Plus
  • Welding Type：AVS. (Automatic Vacuum Soldering)
  • Certificated：Pgm, Bosch Audited SDS-Plus Logo
  • Transport Package：Plastic Box with Label Sticker
  • Specification：4mm to 14mm diameter
  • Trademark：OEM, HTT
  • Origin：China
  • HS Code：8207509000
  • Production Capacity：2400000PCS,Year

Description

Basic Info.

Model NO. PL0720202 Carbide Type Ceratizit Bc20 Steel Type 35CrMo and 40cr Flute Type H Cutting Head Splus W Type Marking Stamped Surface Treatment Shot-Peened Shank Type SDS Plus Welding Type AVS. (Automatic Vacuum Soldering) Certificated Pgm, Bosch Audited SDS-Plus Logo Transport Package Plastic Box with Label Sticker Specification 4mm to 14mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000PCS/Year

Product Description

*2Cutter Hammer Drill Bit SDS plus for drilling & Chiseling concrete brick stone cement etc.

*Ceratizit BC20 of the higher durable formulation tip for concrete stone brick drilling.

*H type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.

*Lower vibration for an easy longer-time drilling job

*SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo fo SDS-plus audited by Bosch.

*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.


Pgm German Quality 7PCS Hammer Drill Set SDS Plus in Rose Plastic Box for Concrete Brick Stone Cement Drilling
Pgm German Quality 7PCS Hammer Drill Set SDS Plus in Rose Plastic Box for Concrete Brick Stone Cement Drilling
Pgm German Quality 7PCS Hammer Drill Set SDS Plus in Rose Plastic Box for Concrete Brick Stone Cement DrillingPgm German Quality 7PCS Hammer Drill Set SDS Plus in Rose Plastic Box for Concrete Brick Stone Cement Drilling
*Other special size combinations are also available on the customers' special request.
Item No.Diameter(mm)
PL0720202-12020 SERIES: 4, 5, 6x110mm, 6, 8,10,12x160mm L;
PL0720202-22020 SERIES: 4, 5, 6x110mm, 6, 6.5,7,8x160mm L;
PL0720202-32020 SERIES: 4, 5, 6x110mm, 6.5, 7,8,9x160mm L;
PL0720202-42020 SERIES: 5, 6, 8x110mm, 6, 6, 8, 8x160mm L;
PL0720202-52020 SERIES: 5, 6, 8x110mm, 9, 10,12,14x160mm L;
PL0720202-62020 SERIES: 5, 6, 7x110mm, 8, 9,10,12x160mm L;
PL0720202-72020 SERIES: 5, 6, 8x110mm, 6, 8,10,12x160mm L;
