• Model NO.：2117
• Carbide Type：Virgin Yg9
• Steel Type：40cr
• Surface Treatment：Shot-Peened
• Cutter Type：Triple 130degrees
• Flute Type：U
• Marking：Stamped
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Certificated：Pgm, Bosch Audited SDS-Plus Logo
• Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
• Specification：Diameter 4mm to 32mm
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：3600000,Year

Basic Info.

Model NO. 2117 Carbide Type Virgin Yg9 Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Triple 130degrees Flute Type U Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Certificated Pgm, Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification Diameter 4mm to 32mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 3600000/Year

Product Description

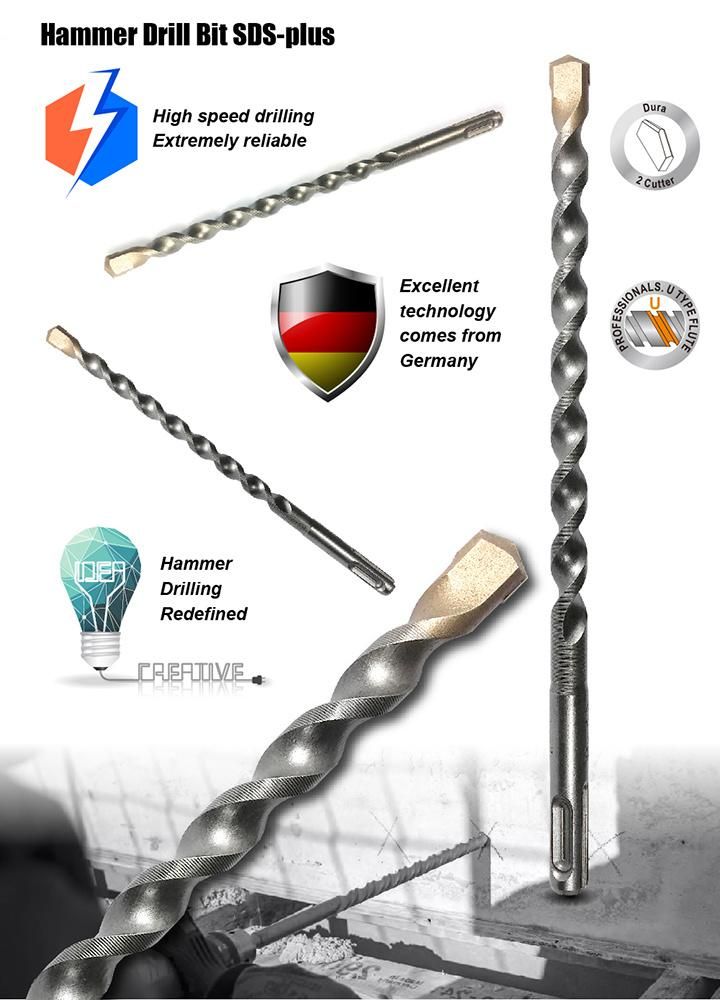

* Hammer Drill SDS plus for Concrete Stone Drilling, PGM certificated, Manufactured by HTT,  2 Cutter carbide tip made of YG9 formulation.

* Carbide tips are specially designed with high durability.

* U flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for easy longer time drilling job.

* SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo of SDS-plus audited by Bosch.

* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.

* PGM certificated carbide size, carbide welded symmetry and rotary run-out straightness for the industrial professional applications.




*Available sizes for Choices( The special sizes are also available upon the customers' special request.)

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
2117.040110	4	60	110
2117.050110	5	60	110
2117.055110	5.5	60	110
2117.060110	6	60	110
2117.065110	6.5	60	110
2117.070110	7	60	110
2117.080110	8	60	110
2117.090110	9	60	110
2117.100110	10	60	110
2117.110110	11	60	110
2117.040160	4	110	160
2117.050160	5	110	160
2117.055160	5.5	110	160
2117.060160	6	110	160
2117.065160	6.5	110	160
2117.070160	7	110	160
2117.080160	8	110	160
2117.090160	9	110	160
2117.100160	10	110	160
2117.110160	11	110	160
2117.120160	12	110	160
2117.130160	13	110	160
2117.140160	14	110	160
2117.150160	15	110	160
2117.160160	16	110	160
2117.180160	18	110	160
2117.190160	19	110	160
2117.200160	20	110	160
2117.220160	22	110	160
2117.240160	24	110	160
2117.250160	25	110	160
2117.260160	26	110	160
2117.280160	28	110	160
2117.300160	30	110	160
2117.320160	32	110	160
2117.040180	4	130	180
2117.050180	5	130	180
2117.055180	5.5	130	180
2117.060180	6	130	180
2117.065180	6.5	130	180
2117.080180	8	130	180
2117.100180	10	130	180
2117.050210	5	160	210
2117.055210	5.5	160	210
2117.060210	6	160	210
2117.065210	6.5	160	210
2117.070210	7	160	210
2117.080210	8	160	210
2117.090210	9	160	210
2117.100210	10	160	210
2117.110210	11	160	210
2117.120210	12	160	210
2117.130210	13	160	210
2117.140210	14	160	210
2117.150210	15	160	210
2117.160210	16	160	210
2117.170210	17	160	210
2117.180210	18	160	210
2117.190210	19	160	210
2117.200210	20	160	210
2117.220210	22	160	210
2117.240210	24	160	210
2117.250210	25	160	210
2117.260210	26	160	210
2117.280210	28	160	210
2117.300210	30	160	210
2117.320210	32	160	210
2117.050260	5	210	260
2117.055260	5.5	210	260
2117.060260	6	210	260
2117.065260	6.5	210	260
2117.070260	7	210	260
2117.080260	8	210	260
2117.090260	9	210	260
2117.100260	10	210	260
2117.110260	11	210	260
2117.120260	12	210	260
2117.130260	13	210	260
2117.140260	14	210	260
2117.150260	15	210	260
2117.160260	16	210	260
2117.180260	18	210	260
2117.190260	19	210	260
2117.200260	20	210	260
2117.220260	22	210	260
2117.240260	24	210	260
2117.250260	25	210	260
2117.260260	26	210	260
2117.280260	28	210	260
2117.300260	30	210	260
2117.320260	32	210	260
2117.050310	5	260	310
2117.055310	5.5	260	310
2117.060310	6	260	310
2117.065310	6.5	260	310
2117.070310	7	260	310
2117.080310	8	260	310
2117.090310	9	260	310
2117.100310	10	260	310
2117.110310	11	260	310
2117.120310	12	260	310
2117.130310	13	260	310
2117.140310	14	260	310
2117.150310	15	260	310
2117.160310	16	260	310
2117.170310	17	260	310
2117.180310	18	260	310
2117.190310	19	260	310
2117.200310	20	260	310
2117.220310	22	260	310
2117.240310	24	260	310
2117.250310	25	260	310
2117.260310	26	260	310
2117.280310	28	260	310
2117.300310	30	260	310
2117.320310	32	260	310
2117.050350	5	300	350
2117.055350	5.5	300	350
2117.060350	6	300	350
2117.065350	6.5	300	350
2117.070350	7	300	350
2117.080350	8	300	350
2117.090350	9	300	350
2117.100350	10	300	350
2117.110350	11	300	350
2117.120350	12	300	350
2117.130350	13	300	350
2117.140350	14	300	350
2117.150350	15	300	350
2117.160350	16	300	350
2117.180350	18	300	350
2117.190350	19	300	350
2117.200350	20	300	350
2117.220350	22	300	350
2117.240350	24	300	350
2117.250350	25	300	350
2117.260350	26	300	350
2117.280350	28	300	350
2117.300350	30	300	350
2117.320350	32	300	350
2117.050410	5	360	410
2117.055410	5.5	360	410
2117.060410	6	360	410
2117.065410	6.5	360	410
2117.070410	7	360	410
2117.080410	8	360	410
2117.090410	9	360	410
2117.100410	10	360	410
2117.110410	11	360	410
2117.120410	12	360	410
2117.130410	13	360	410
2117.140410	14	360	410
2117.150410	15	360	410
2117.160410	16	360	410
2117.180410	18	360	410
2117.190410	19	360	410
2117.200410	20	360	410
2117.220410	22	360	410
2117.240410	24	360	410
2117.250410	25	360	410
2117.260410	26	360	410
2117.280410	28	360	410
2117.300410	30	360	410
2117.320410	32	360	410
2117.050460	5	410	460
2117.055460	5.5	410	460
2117.060460	6	410	460
2117.065460	6.5	410	460
2117.070460	7	410	460
2117.080460	8	410	460
2117.090460	9	410	460
2117.100460	10	410	460
2117.110460	11	410	460
2117.120450	12	400	450
2117.130450	13	400	450
2117.140450	14	400	450
2117.150450	15	400	450
2117.160450	16	400	450
2117.180450	18	400	450
2117.190450	19	400	450
2117.200450	20	400	450
2117.220450	22	400	450
2117.240450	24	400	450
2117.250450	25	400	450
2117.260450	26	400	450
2117.280450	28	400	450
2117.300450	30	400	450
2117.320450	32	400	450
2117.060550	6	500	550
2117.065550	6.5	500	550
2117.070550	7	500	550
2117.080550	8	500	550
2117.090550	9	500	550
2117.100550	10	500	550
2117.110550	11	500	550
2117.120550	12	500	550
2117.130550	13	500	550
2117.140550	14	500	550
2117.150550	15	500	550
2117.160550	16	500	550
2117.180550	18	500	550
2117.190550	19	500	550
2117.200550	20	500	550
2117.220550	22	500	550
2117.240550	24	500	550
2117.250550	25	500	550
2117.260550	26	500	550
2117.280550	28	500	550
2117.300550	30	500	550
2117.320550	32	500	550
2117.060600	6	550	600
2117.065600	6.5	550	600
2117.070600	7	550	600
2117.080600	8	550	600
2117.090600	9	550	600
2117.100600	10	550	600
2117.110600	11	550	600
2117.120600	12	550	600
2117.130600	13	550	600
2117.140600	14	550	600
2117.150600	15	550	600
2117.160600	16	550	600
2117.170600	17	550	600
2117.180600	18	550	600
2117.190600	19	550	600
2117.200600	20	550	600
2117.220600	22	550	600
2117.240600	24	550	600
2117.250600	25	550	600
2117.260600	26	550	600
2117.280600	28	550	600
2117.300600	30	550	600
2117.320600		550	600
2117.080800	8	750	800
2117.090800	9	750	800
2117.100800	10	750	800
2117.110800	11	750	800
2117.120800	12	750	800
2117.130800	13	750	800
2117.140800	14	750	800
2117.150800	15	750	800
2117.160800	16	750	800
2117.180800	18	750	800
2117.190800	19	750	800
2117.200800	20	750	800
2117.220800	22	750	800
2117.240800	24	750	800
2117.250800	25	750	800
2117.260800	26	750	800
2117.280800	28	750	800
2117.300800	30	750	800
2117.320800	32	750	800
2117.101000	10	950	1000
2117.111000	11	950	1000
2117.121000	12	950	1000
2117.131000	13	950	1000
2117.141000	14	950	1000
2117.151000	15	950	1000
2117.161000	16	950	1000
2117.181000	18	950	1000
2117.191000	19	950	1000
2117.201000	20	950	1000
2117.221000	22	950	1000
2117.241000	24	950	1000
2117.251000	25	950	1000
2117.261000	26	950	1000
2117.281000	28	950	1000
2117.301000	30	950	1000
2117.321000	32	950	1000
