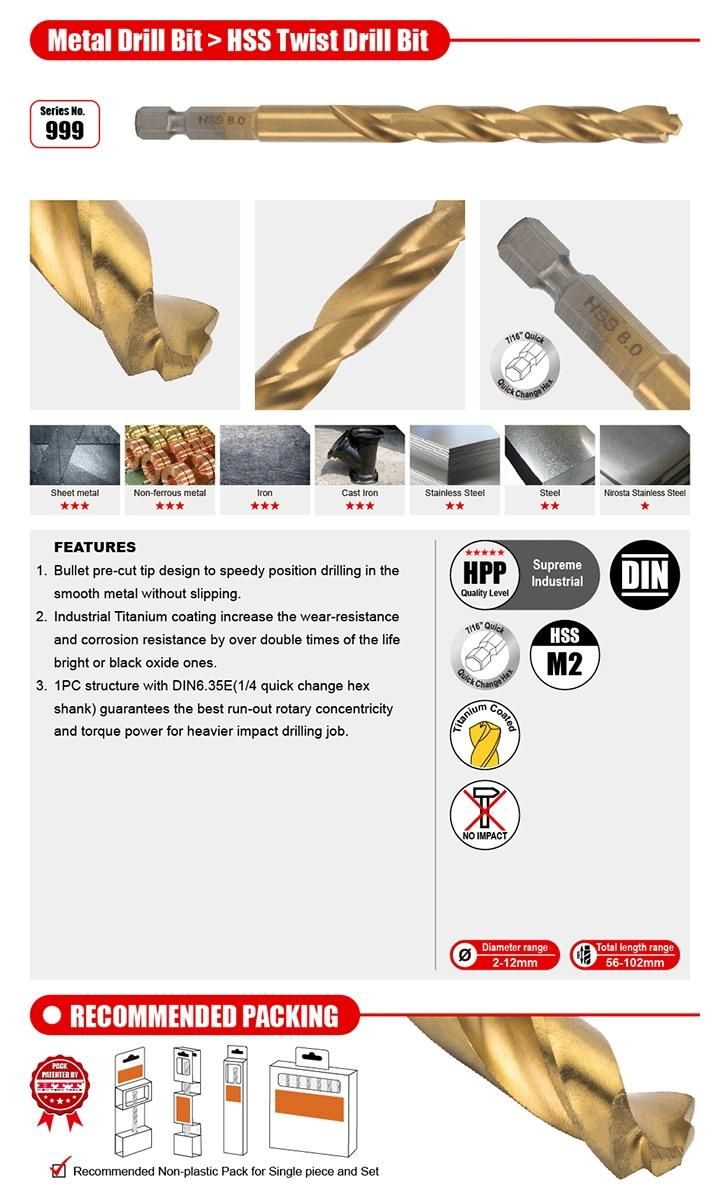

• Model NO.：999
• Steel Type：HSS M2
• Craftsmanship：Fully Ground
• Flute Type：N
• Drilling Head：Bullet Tip with Split Point
• Marking：Laser Marking
• Surface Treatment：Titanium Coated
• Shank Type：DIN6.35e
• Transport Package：Blister, Skin, Sandwich, Color Paper Hanger, Paper
• Specification：2mm to 12mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：6800000PCS,Year

Basic Info.

Model NO. 999 Steel Type HSS M2 Craftsmanship Fully Ground Flute Type N Drilling Head Bullet Tip with Split Point Marking Laser Marking Surface Treatment Titanium Coated Shank Type DIN6.35e Transport Package Blister, Skin, Sandwich, Color Paper Hanger, Paper Specification 2mm to 12mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 6800000PCS/Year

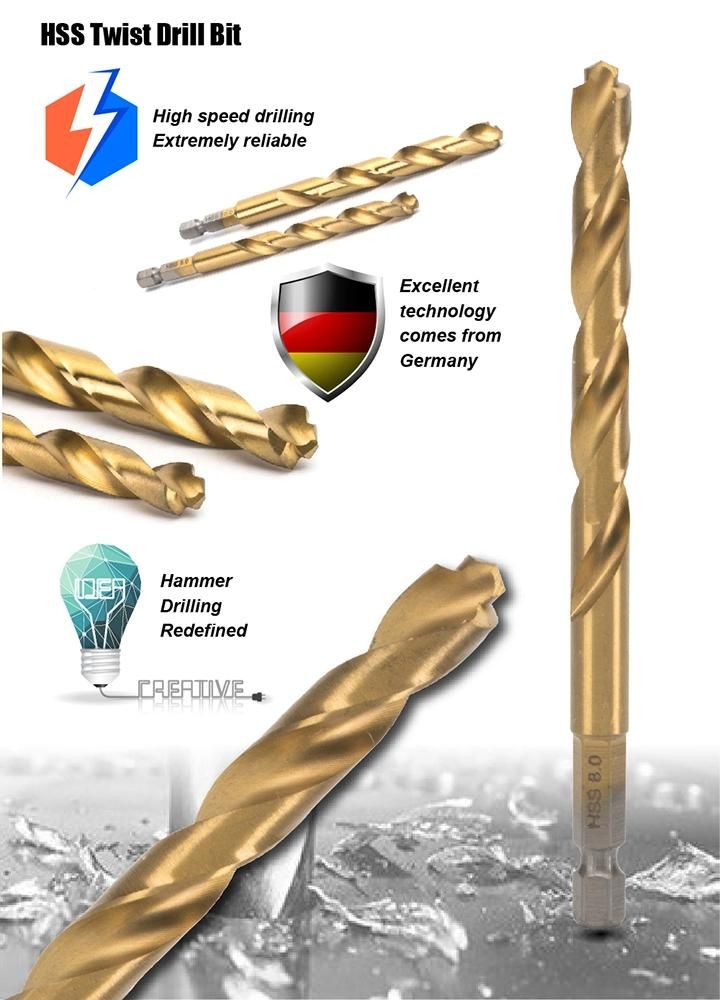

Product Description

*For use in alloyed and unalloyed steels up to 900 N/mm2 tensile strength, sheet metal and thin-walled profile material(pipes and without pre-punching), where exact and clean drilling is required.

* For use with impact drivers.

*Special designed pilot point penetrates material faster and allows precise drilling on curved surfaces.

* Optimized flute geometry specially ground shoulder cutting flutes for milling exact circular holes with clean edges.

* Titanium coating for increased wear resistance, corrosion resistance and up to 2x life(vs black oxide).

* Core reinforcement 2x longer life, 2x stronger core. Constantly increasing core diameter in the direction of the shaft for increased durability. Gives maximum fracture stability.

* Quick change shank DIN6.35E for rapid change of accessory.



*Other special sizes are also available on the customers' special request.

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
999.020056	2	18	56
999.025060	2.5	22	60
999.030064	3	26	64
999.032067	3.2	29	67
999.035070	3.5	29	70
999.040071	4	30	71
999.042071	4.2	31	71
999.045075	4.5	31	75
999.048076	4.8	32	76
999.050078	5	33	78
999.055078	5.5	35	78
999.060080	6	37	80
999.065080	6.5	37	80
999.070089	7	45	89
999.075095	7.5	50	95
999.080102	8	50	102
999.085102	8.5	50	102
999.090102	9	50	102
999.100102	10	50	102
999.110102	11	50	102
999.120102	12	50	102
