Drilling Tools

Home > Product > Drill Bit

6 3/4′′ IADC 537 Rotary Drill Bit, Drilling Bits, Rock Drilling Bits

Hejian Hengji Bit Manufacture Co., Ltd.
  • Type：Center Drill Bit
  • Material：Alloy Steel, Tungsten Carbide
  • Usage：Well Drilling
  • Certification：ISO
  • Model Number：Steel Tooth Bit, TCI Bit
  • Bearing Type：Sealed Bearing and Non-Sealed Bearing

Base Info

  • Model NO.：IADC CODE
  • Suitable Formation：Soft, Medium Soft, Hard, Medium Hard, Very Hard
  • Color：Blue or Red

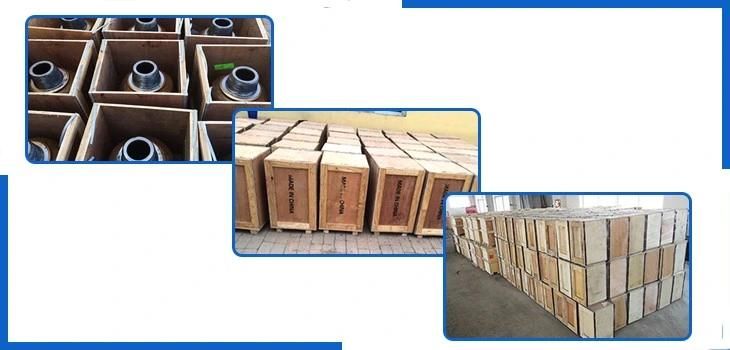

  • Transport Package：Wooden Case
  • Specification：according requirement
  • Trademark：HJ
  • Origin：China
  • HS Code：8207191
  • Production Capacity：1000

Description

                             HENGJI BIT SPECIFICATION
Bit Size6 3/4'' (171.5mm)
IADC Code
537SeriesHRTooth typeTCI/tungsten carbide insert
Connection
3 1/2 API REG PINBearingrubber sealed bearing
Nozzle
three jet nozzles
Rotary Speed(rpm)
0.45~1.0
Weight on Bit(KN/MM)
120~50 Applicationwater well,oil well,HDD,exploration,etc
Formationsoft to medium formation with low compressive strength ,such as medium soft shale,medium soft limestone,medium soft sandstone,etc.Note: The upper limits of WOB and RPM in above table should not be used simultaneously.
 Note: The upper limits of WOB and RPM in above table should not be used simultaneously.6 3/4′′ IADC 537 Rotary Drill Bit, Drilling Bits, Rock Drilling Bits6 3/4′′ IADC 537 Rotary Drill Bit, Drilling Bits, Rock Drilling Bits
Company Information
 Hejian Hengji Bit Manufacture Co.,LTD  is specialized in manufacturing high quality rock bit,especially for tricone bit,PDC bit,hole opener,single cone bit and drag bit.with advanced CNC machines and R&D team and on-time delivery. We have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices .
    We ship to more than 40 different countries and serve industries such as Oil & Gas, water well , Construction,Mining,  Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with everything from choosing the right bit to shipping around the globe.
     Our goal is to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine shop.  Reduce the cost ,Speed the drilling ,Guarantee the safety is always our aim.  We have been always insist on"Hengji bit,focusing on quality".

Main products
tricone bit(mill tooth and tungsten carbide insert tricone bit)
PDC bit(matrix body and steel body PDC bit)
hole opener(HDD rock reamer,barrel reamer,etc)
drag bit(step drag bit,PDC drag bit,chevron drag bit,etc)
accessories(single cone,bit breaker,nozzle ,etc)
