Supreme Quality HSS M2 Twist Drill Bit DIN338 Rn Cylindrical Shank for Metal Steel Stainless Steel Alloyed Unalloyed Non-Ferrous Metal Board Sheet Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized:Customized
- Standard:DIN
- Length:22mm to 205mm
- Type:Twist Drill Bit
- Material:High Speed Steel
- Usage:Metal Drilling
Base Info
- Model NO.:900
- Steel Type:HSS M2
- Flute Type:N
- Rotation Direction:Right Hand
- Surface Treatment:Bright Finished
- Tip Point:0.5mm to 2.9mm 118degrees, 3mm-20mm 135degrees
- Marking:Stamped Marking
- Standard Type:DIN338rn
- Shank Type:Cylindrical Shank
- Transport Package:Blister, Skin, PVC Bag, Color Paper Hanger, Paper
- Specification:0.5mm to 20mm diameter
- Trademark:OEM, HTT
- Origin:China
- HS Code:8207509000
- Production Capacity:7200000PCS,Year
Description
Basic Info.
Model NO. 900 Steel Type HSS M2 Flute Type N Rotation Direction Right Hand Surface Treatment Bright Finished Tip Point 0.5mm to 2.9mm 118degrees, 3mm-20mm 135degrees Marking Stamped Marking Standard Type DIN338rn Shank Type Cylindrical Shank Transport Package Blister, Skin, PVC Bag, Color Paper Hanger, Paper Specification 0.5mm to 20mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 7200000PCS/YearProduct Description

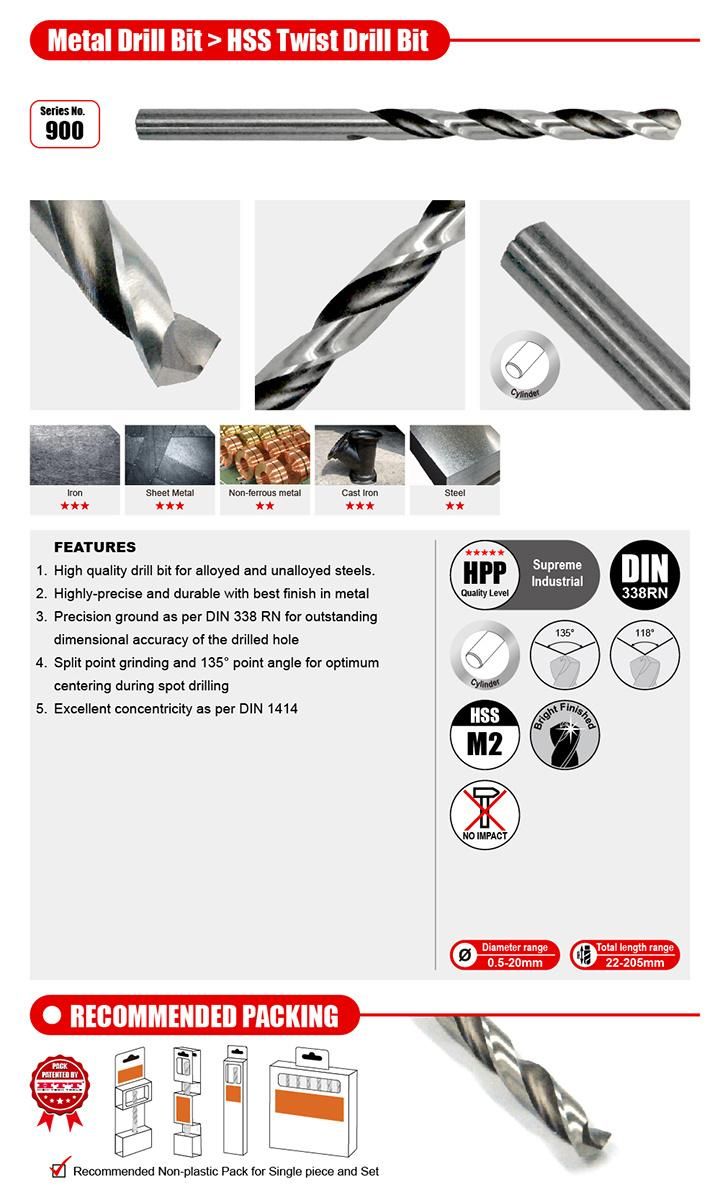

*HSS M2 Twist Drill Bit, Fully Ground, Bright finish, DIN338RN ,Cylindrical Shank for drilling holes in various metal sheets, stainless steel, inox sheet, alloyed steel, unalloyed steel, non-ferrous metal, stainless steel sheet, fiberboard, wood board, etc.* Strict and special hardening craftsmanship to realize the M2 HSS durability and sharpness maintaining for long time.
* Fully ground does the precise size controlling under DIN338 standard and run-out concentricity under DIN1414 for H7 and H8 correctness touching.
* Diameter 0.5-2.9mm with 118 degress tip point and 3mm - 20mm with 135degrees split point make the best balance between the drilling speed and durability.
*Other special sizes are also available on the customers' special request.
*Diameter 13.5mm to 20mm with the reduced cylindrical shank 12.7mm diameter.
Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
900.338005 | 0.5 | 6 | 22 |
900.338010 | 1 | 12 | 34 |
900.338015 | 1.5 | 18 | 40 |
900.338020 | 2 | 24 | 49 |
900.338025 | 2.5 | 30 | 57 |
900.338030 | 3 | 33 | 61 |
900.338032 | 3.2 | 36 | 65 |
900.338035 | 3.5 | 39 | 70 |
900.338040 | 4 | 43 | 75 |
900.338042 | 4.2 | 43 | 75 |
900.338045 | 4.5 | 47 | 80 |
900.338050 | 5 | 52 | 86 |
900.338052 | 5.2 | 52 | 86 |
900.338055 | 5.5 | 57 | 93 |
900.338060 | 6 | 57 | 93 |
900.338062 | 6.2 | 63 | 101 |
900.338065 | 6.5 | 68 | 109 |
900.338070 | 7 | 69 | 109 |
900.338075 | 7.5 | 75 | 117 |
900.338080 | 8 | 75 | 117 |
900.338085 | 8.5 | 81 | 125 |
900.338090 | 9 | 81 | 125 |
900.338095 | 9.5 | 87 | 133 |
900.338100 | 10 | 87 | 133 |
900.338105 | 10.5 | 94 | 142 |
900.338110 | 11 | 94 | 142 |
900.338115 | 11.5 | 101 | 151 |
900.338120 | 12 | 101 | 151 |
900.338125 | 12.5 | 101 | 151 |
900.338130 | 13 | 101 | 151 |
900.338135 | 13.5 | 108 | 160 |
900.338140 | 14 | 108 | 160 |
900.338145 | 14.5 | 114 | 169 |
900.338150 | 15 | 114 | 169 |
900.338155 | 15.5 | 120 | 178 |
900.338160 | 16 | 120 | 178 |
900.338165 | 16.5 | 125 | 184 |
900.338170 | 17 | 125 | 184 |
900.338180 | 18 | 130 | 191 |
900.338190 | 19 | 135 | 198 |
900.338200 | 20 | 140 | 205 |
