Premium Quality Hcs 3 Wings Ship Auger Drill Bit DIN6.35e Shank for Wood Chipboard Timber MDF Plywood Plaster Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：152mm to 165mm
- Type：Twist Drill Bit
- Material：High Carbon Steel
- Usage：Wood Drilling
Base Info
- Model NO.：334
- Steel Type：Hcs
- Surface Treatment：Color Flute & Polished Surface
- Shank Type：DIN6.35e
- Cutter Qty.：3
- Sefl-Feed：Yes with Screwed Tip
- Transport Package：Box, PVC Bag, Blister, Tube, Sandwich Blister
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207059000
- Production Capacity：6000000PCS,Year
Description
Basic Info.
Model NO. 334 Steel Type Hcs Surface Treatment Color Flute & Polished Surface Shank Type DIN6.35e Cutter Qty. 3 Sefl-Feed Yes with Screwed Tip Transport Package Box, PVC Bag, Blister, Tube, Sandwich Blister Trademark OEM, HTT Origin China HS Code 8207059000 Production Capacity 6000000PCS/YearProduct Description

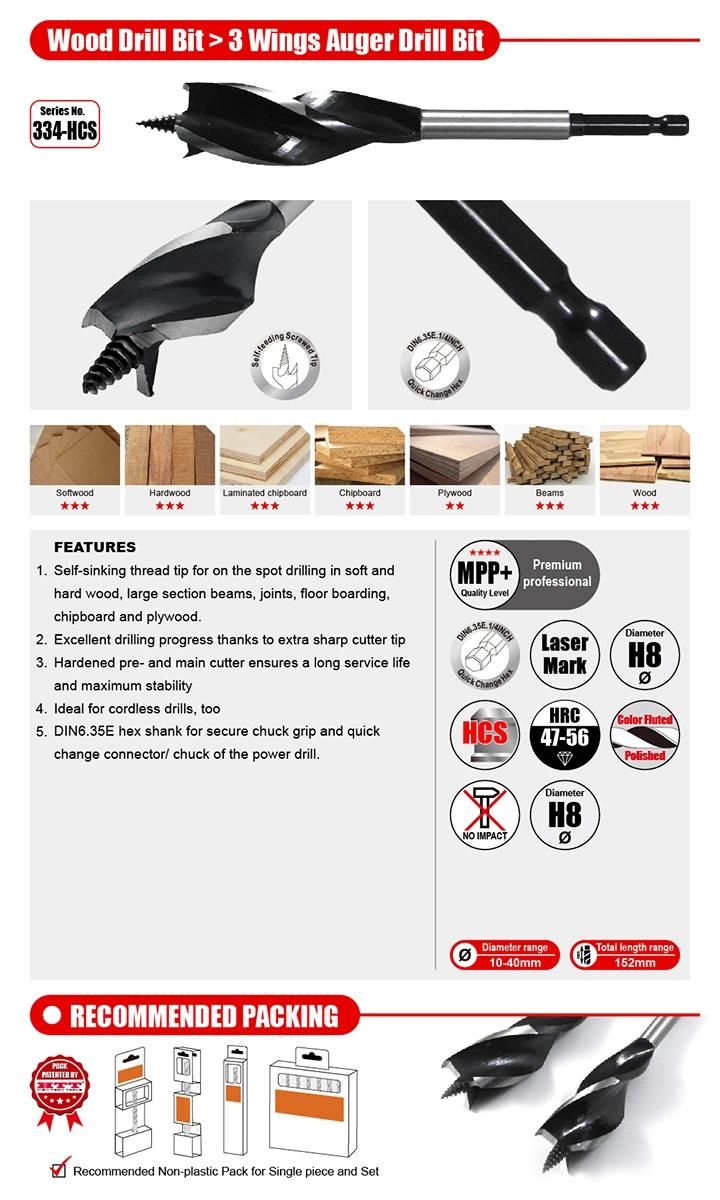

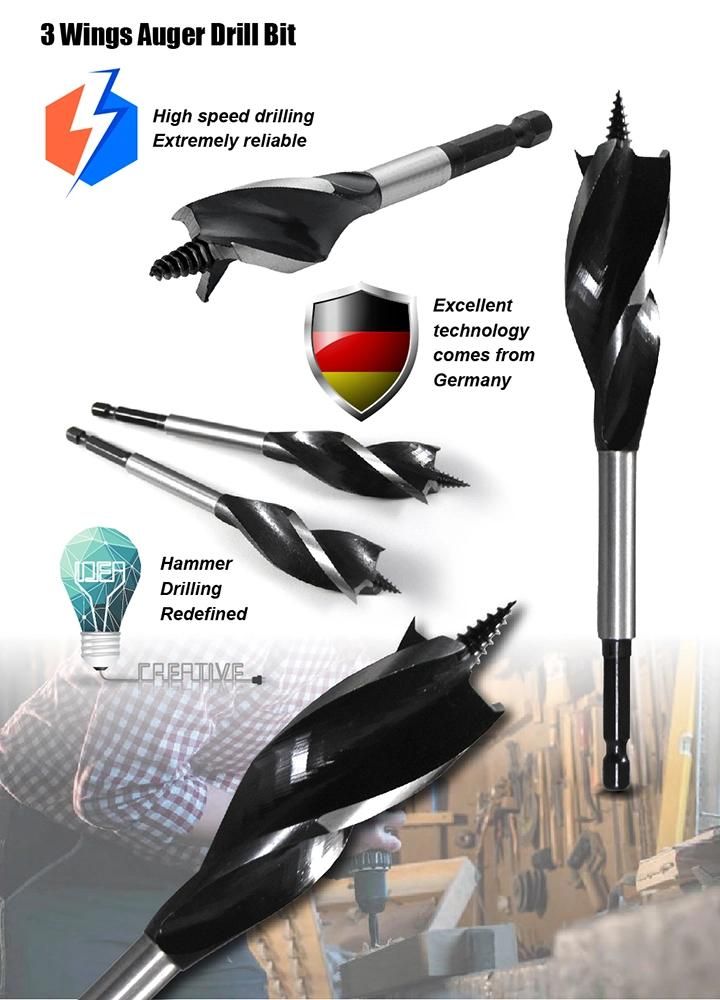

*3 Wing Auger Drill Bit with DIN6.35E quick change hex shank, screw self-feed pre-cut* For heavy-duty, precision drilling in soft and hard wood, large section beams, joints, floor boarding, chipboard and plywood.
* Lewis flute design for rapid chip removal.
* With DIN6.35E quick change hex shank for secure grip and meet those DIN6.35E quick change drill chuck and connectors.
Other sepcial sizes and steel types are also available on the customers' special requests.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) | Shank Type |
| 334.03110152 | 10 | 52 | 152 | DIN6.35E |
| 334.03121520 | 12 | 52 | 152 | DIN6.35E |
| 334.03131520 | 13 | 52 | 152 | DIN6.35E |
| 334.03141520 | 14 | 52 | 152 | DIN6.35E |
| 334.03151520 | 15 | 52 | 152 | DIN6.35E |
| 334.03161520 | 16 | 52 | 152 | DIN6.35E |
| 334.03181520 | 18 | 52 | 152 | DIN6.35E |
| 334.03191520 | 19 | 52 | 152 | DIN6.35E |
| 334.03201520 | 20 | 52 | 152 | DIN6.35E |
| 334.03211520 | 21 | 52 | 152 | DIN6.35E |
| 334.03221520 | 22 | 52 | 152 | DIN6.35E |
| 334.03241520 | 24 | 52 | 152 | DIN6.35E |
| 334.03251520 | 25 | 52 | 152 | DIN6.35E |
| 334.03261520 | 26 | 52 | 152 | DIN6.35E |
| 334.03281520 | 28 | 52 | 152 | DIN6.35E |
| 334.03301520 | 30 | 52 | 152 | DIN6.35E |
| 334.03321520 | 32 | 52 | 152 | DIN6.35E |
| 334.03341520 | 34 | 52 | 152 | DIN6.35E |
| 334.03351520 | 35 | 52 | 152 | DIN6.35E |
| 334.03361520 | 36 | 52 | 152 | DIN6.35E |
| 334.03381520 | 38 | 52 | 152 | DIN6.35E |
| 334.03401520 | 40 | 52 | 152 | DIN6.35E |
