• Model NO.：911
• Carbide Teeth Type：K2
• Body Steel Type：Hcs Hardened
• Threaded Connection：1,2-20unf & 5,8-18unf
• Pilot Drill：HSS Twist Drill M2
• Max. Cutting Depth：3mm
• Marking：Stamped Marking
• Surface Treatment：Sandblasted
• Accessories：Spring, Fixing Screw, Key Wrench
• with Flange：Yes
• Shank Type：Hex Shank
• Transport Package：Blister, Color Paper Hanger, Paper Box, Tubes
• Specification：13mm to 150mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：2400000,Year

Basic Info.

Model NO. 911 Carbide Teeth Type K2 Body Steel Type Hcs Hardened Threaded Connection 1/2-20unf & 5/8-18unf Pilot Drill HSS Twist Drill M2 Max. Cutting Depth 3mm Marking Stamped Marking Surface Treatment Sandblasted Accessories Spring, Fixing Screw, Key Wrench with Flange Yes Shank Type Hex Shank Transport Package Blister, Color Paper Hanger, Paper Box, Tubes Specification 13mm to 150mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000/Year

Product Description

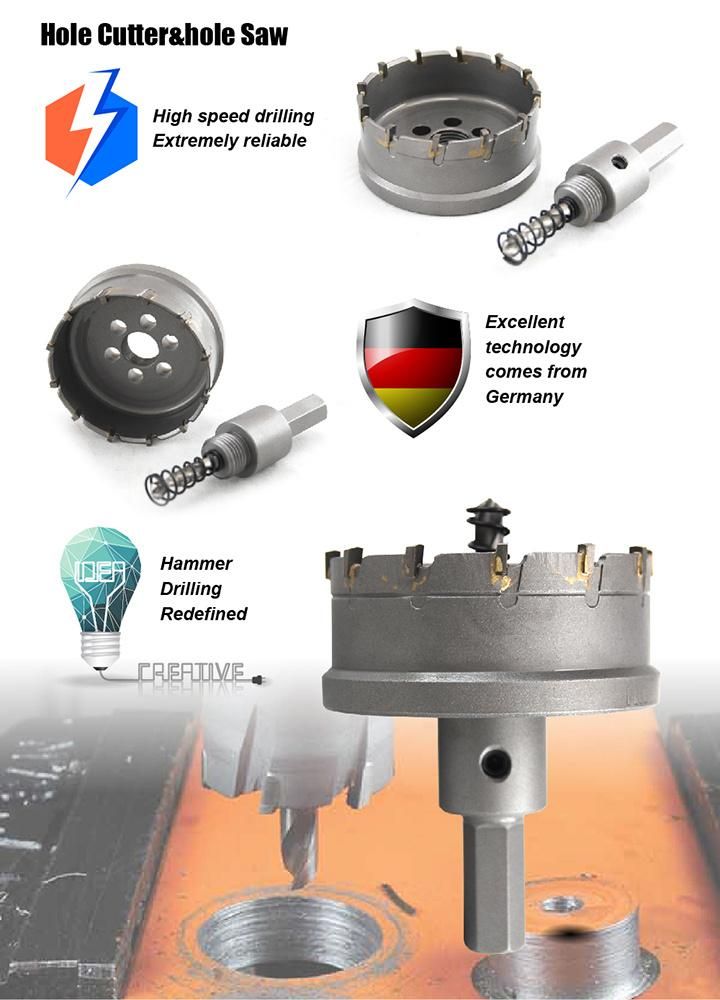

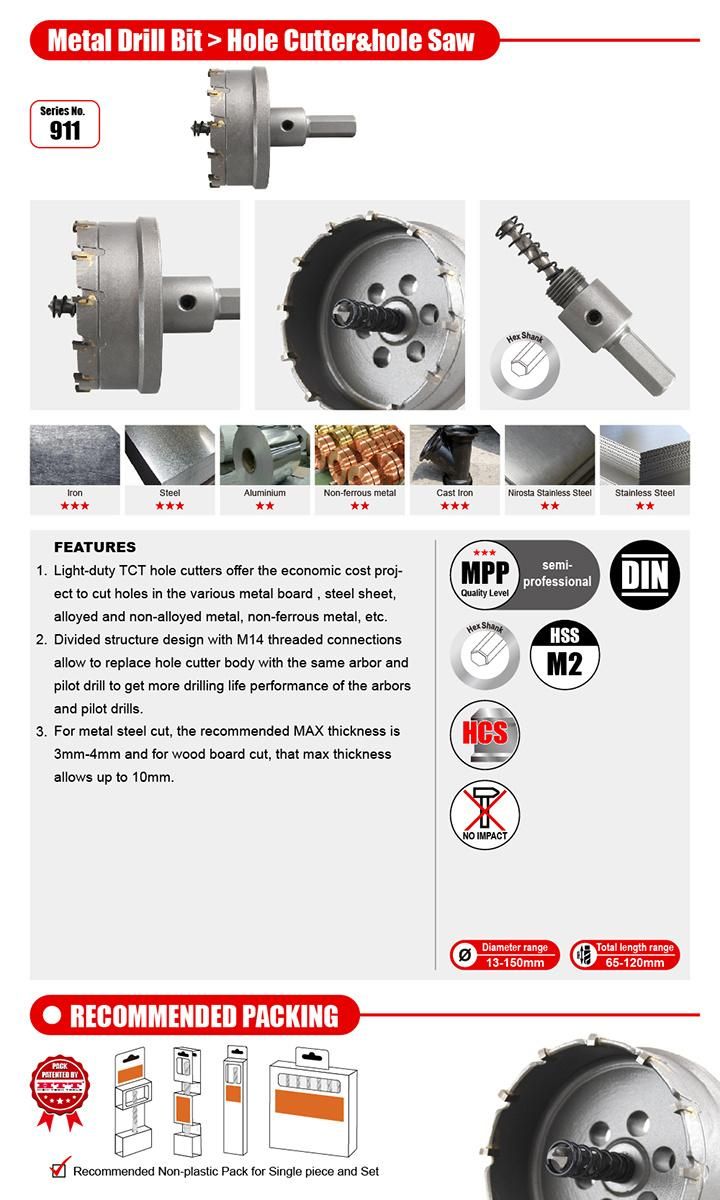

*TCT Hole Cutter with K20 tungsten carbide tipped, HSS pilot drill and spring, Hex Shank, for cutting holes in various metal sheets, alloyed steel, unalloyed steel, non-ferrous metal, stainless steel sheet, fiberboard, wood board, etc.

* Tungsten carbide-tipped cutting edges last longer and can be run at higher rates and speeds.

* Pilot drill is well made of high-speed steel, with an extremely sharp blade, low consumption, and durable, providing impact resistance, and wear resistance.

*Integrated design: including the drill bit, spring, and hex wrench. The split point pilot drill bit prevents the bit from walking.




*Other special sizes are also available on the customers' special request.

Item Number	Diameter(mm)	Diameter(inch)	Hex Shank Diameter(mm)
911.0130006	13	1/2	9.5
911.0140006	14	9/16	9.5
911.0150006	15	19/32	9.5
911.0160006	16	5/8	9.5
911.0170006	17	11/16	9.5
911.0180006	18	23/32	9.5
911.0190006	19	3/4	9.5
911.0200006	20	25/32	9.5
911.0210006	21	13/16	9.5
911.0220006	22	7/8	9.5
911.0230006	23	29/32	9.5
911.0240006	24	15/16	9.5
911.0250006	25	1	9.5
911.0260006	26	1-1/32	9.5
911.0270006	27	1-1/16	9.5
911.0280006	28	1-3/32	9.5
911.0290006	29	1-1/8	9.5
911.0300006	30	1-3/16	9.5
911.0320006	32	1-1/4	10.5
911.0330006	33	1-5/16	10.5
911.0340006	34	1-11/32	10.5
911.0350006	35	1-3/8	10.5
911.0360006	36	1-27/64	10.5
911.0370006	37	1-7/16	10.5
911.0380006	38	1-1/2	10.5
911.0390006	39	1-17/32	10.5
911.0400006	40	1-9/16	10.5
911.0410006	41	1-5/8	10.5
911.0420006	42	1-21/32	10.5
911.0430006	43	1-11/16	10.5
911.0440006	44	1-3/4	10.5
911.0450006	45	1-25/32	10.5
911.0460006	46	1-13/16	10.5
911.0480006	48	1-7/8	10.5
911.0490006	49	1-15/16	10.5
911.0500006	50	1-31/32	10.5
911.0510006	51	2	10.5
911.0520006	52	2-1/16	10.5
911.0530006	53	2-3/32	10.5
911.0540006	54	2-1/8	10.5
911.0550006	55	2-11/64	10.5
911.0560006	56	2-3/16	10.5
911.0570006	57	2-1/4	10.5
911.0580006	58	2-9/32	10.5
911.0590006	59	2-5/16	10.5
911.0600006	60	2-3/8	10.5
911.0610006	61	2-13/32	10.5
911.0620006	62	2-7/16	10.5
911.0630006	63	2-31/64	10.5
911.0640006	64	2-1/2	10.5
911.0650006	65	2-9/16	12.3
911.0670006	67	2-5/8	12.3
911.0680006	68	2-11/16	12.3
911.0700006	70	2-3/4	12.3
911.0710006	71	2-25/32	12.3
911.0720006	72	2-27/32	12.3
911.0730006	73	2-7/8	12.3
911.0740006	74	2-29/32	12.3
911.0750006	75	2-15/16	12.3
911.0760006	76	3	12.3
911.0780006	78	3-5/64	12.3
911.0790006	79	3-1/8	12.3
911.0800006	80	3-5/32	12.3
911.0810006	81	3-3/16	12.3
911.0820006	82	3-15/64	12.3
911.0830006	83	2-1/4	12.3
911.0850006	85	3-11/32	12.3
911.0860006	86	3-3/8	12.3
911.0890006	89	3-1/2	12.3
911.0900006	90	3-17/32	12.3
911.0910006	91	3-19/32	12.3
911.0920006	92	3-5/8	12.3
911.0930006	93	3-21/32	12.3
911.0950006	95	3-3/4	12.3
911.0960006	96	3-25/32	12.3
911.0980006	98	3-7/8	12.3
911.1000006	100	3-15/16	12.3
911.1020006	102	4	12.3
911.1040006	104	4-3/32	12.3
911.1050006	105	4-1/8	12.3
911.1080006	108	4-1/4	12.3
911.1100006	110	4-21/64	12.3
911.1110006	111	4-3/8	12.3
911.1120006	112	4-13/32	12.3
911.1140006	114	4-1/2	12.3
911.1150006	115	4-17/32	12.3
911.1160006	116	4-9/16	12.3
911.1180006	118	4-21/32	12.3
911.1210006	121	4-3/4	12.3
911.1250006	125	4-29/32	12.3
911.1260006	126	4-31/32	12.3
911.1270006	127	5	12.3
911.1280006	128	5-1/16	12.3
911.1300006	130	5-1/8	12.3
911.1330006	133	5-1/4	12.3
911.1380006	138	5-7/16	12.3
911.1400006	140	5-1/2	12.3
911.1450006	145	5-23/32	12.3
911.1500006	150	5-29/32	12.3
