T45-76-13 Button DC Retrac Parabolic Button Bit

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Type：Center Drill Bit
  • Material：Tungsten Carbide
  • Usage：Well Drilling, PCB Drilling, Metal Drilling
  • Condition：New
  • Model：Thread Button Bit
  • Body Type：Normal Type and Retract Type

Base Info

  • Model NO.：T45-76-13
  • Diameter：76mm
  • Color：Red, Black, Yellow, Gold
  • Transport Package：Wood Package
  • Specification：CE, SGS, ISO: 9001, R32 R38 T38 T45 T51
  • Trademark：PRODRILL
  • Origin：China
  • HS Code：82071990
  • Production Capacity：10000PCS,Month

Description

Basic Info.

Model NO. T45-76-13 Diameter 76mm Color Red, Black, Yellow, Gold Transport Package Wood Package Specification CE, SGS, ISO: 9001, R32 R38 T38 T45 T51 Trademark PRODRILL Origin China HS Code 82071990 Production Capacity 10000PCS/Month

Product Description

Description:

Rock drilling tools factory ProDrill manufactures rock drill bits: Q13T45 button DC retrac parabolic bit is the most important size for benching and long-hole drilling underground

Top hammer button BIT T45-76-13 button DC retrac parabolic bit, heavy duty, 13mm*8+12mm*5 ,Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year, Offers industry-leading strength and penetration rates for more productivity,Excellent straightness and hole clean quality,Get max.drilling performance for rock drills with long life to save up

Diameter: 76mm, 89mm, 102mm

Skirt body: retrac, and normal, straightrac

Face type: flat, uniface, Drop Center

Carbide shape: Dome, ballistic, semi-ballistic

Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

  • Code No.: Q13-76-T45

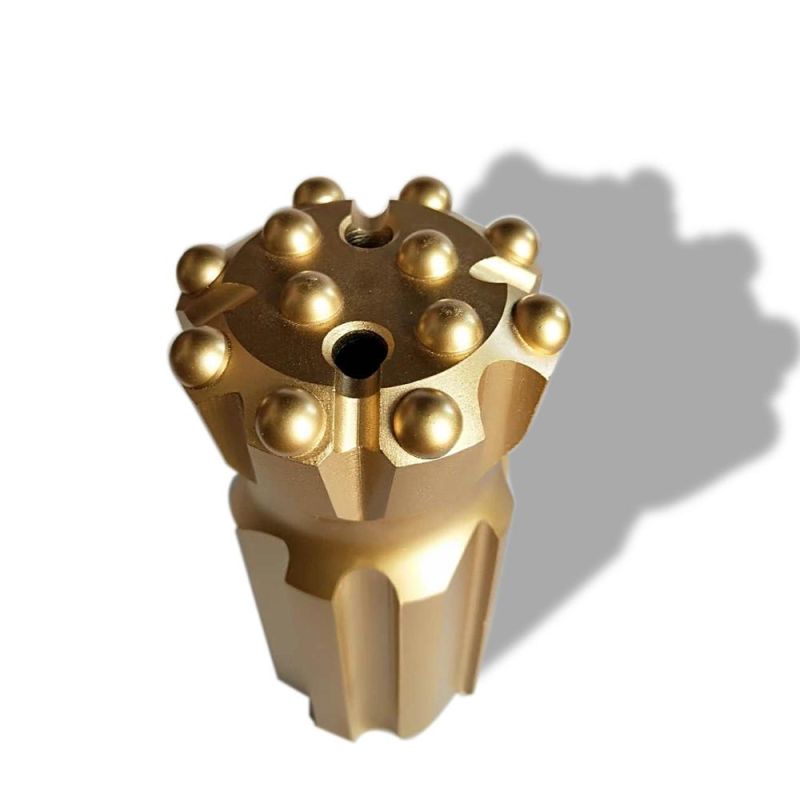

T45-76-13 Button DC Retrac Parabolic Button Bit
  • Thread: T45
  • Diameter: 76mm
  • Gauge Buttons: 8*11mm
  • Front Buttons: 4*11mm
  • Skirt Design: Standard
  • Carbide Design: Dome
  • Face Design: Flat
