• Model NO.：HYDX-4
• Trademark：YiKuang
• Origin：Linqing, Liaocheng, Shandong, China
• HS Code：7302901000
• Production Capacity：500pieces,Year

Drill Rods:

BQ(55.6);NQ(69.9);HQ(88.9)

Drilling Depth(m)

1000;700;500

RPM Range:

0~1100rpm

Max, Rotation Torque Spindle:

4200N.m

Rotator Lifting Force:

150kN

Rotator Feeding Force:

60kN

Lifting Force of Main Hoister:

57kN

Main Hoister Cable Dia:

16mm×50m

Lifting Force of Auxiliary Winch:

12kN

Auxiliary Winch Cable Dia:

6mm×1000m

Feeding Stroke:

3500mm

Max. Drilling Angle:

45°~90°

Height of Derrick:

9m

Diesel Engine Power:

132kW/2200r/min

Dimensions(L×W×H):

4600×2200×9000mm

Weight:

9300kg

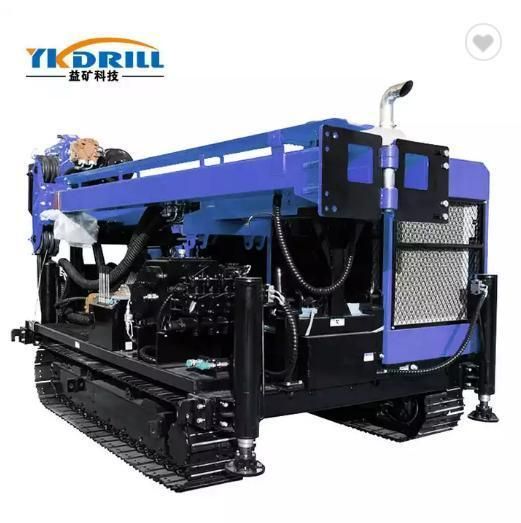

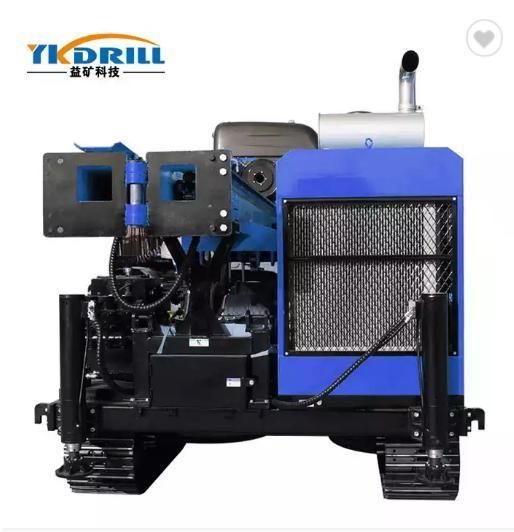

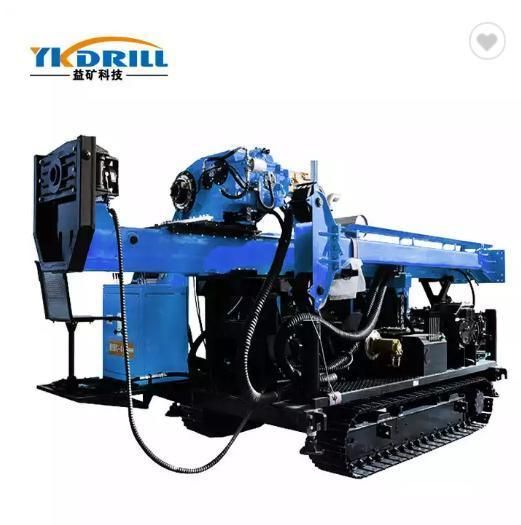

The full hydraulic power head core drilling rig using wire-line coring diamond drilling technology has become the leading model for solid ore deposit exploration in developed countries, and has also become the leading trend in the development of drilling technology and equipment in my country. Under this trend, HYDX-4 full hydraulic core drilling rig  in metallurgy, nonferrous metals, coal, nuclear industry, petroleum, In natural gas and other industries, it is used in the construction of diamond and cemented carbide core drilling projects.

The belt-covered chassis adopts the cylinder direct push structure for the feeding and lifting of the power head. The stroke is 3.5m; the rotation of the main shaft is driven by a single motor, and the mechanical 4-speed gearbox is supplemented by hydraulic stepless speed regulation; the mast has the function of sliding and touching the ground, and the oil cylinder lifts and falls; the mast can be folded for transportation and storage; large through-hole, high-precision spindle rotation structure .


The information you may like to know before order:

1. Methods of Payment:

T/T (Telegraphic Transfer) sor Western Union or L/C at sight.

2. Handling time for an order

Based on order quantity, normally it takes 25 days for production.

Only 2 or 3 days if we have stock on your request size.

3. Shipping way

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air.

Bulk order: we suggest by air or by sea.

4. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.

5. After Services:

1. Our sales team will response for your question within 24 hours (Holidays Excluded).

2. Technical Support will be available in any time.

3. Free replacement will provide once the failure confirmed caused by our product quality.

6.Are you a manufacture or a trade company?

We are a professional manufacturer.

7.Do you have quality control system?

Yes, we check every production process and test pressure for each tool to make sure no problem.

8.How can lget abooklet and buy a product from you?

Very easy!Just leave me a message and tellme your requirements, let me konwyou are interesting in our products. will tlk with you for the detail soon.

9.Can you tell me your size and specification?

1.Give me your drawing with detail requirements.

2. CGive me the product no.after you checked our booklet.

3. Don't forget to tell me the quantities, this is very important.

4. Cive me your size and specirication.

5. Your destination port.
