T2-46 Impregnated Diamond Core Drill Bit
Changsha Miracleland Import & Export Co., Ltd.- Customized:Customized
- Standard:ISO CQC SGS Saso
- Type:Core Drill Bit
- Material:Diamond
- Usage:Geotechnical Exploration, Mining Drill
- Matrix Height:6mm-14mm
Base Info
- Model NO.:T2-46
- Shape:Round
- Manufacturing Arts:Sinter
- Kind:Diamond Drill
- Transport Package:Plywood Case & Carton
- Specification:DCDMA, CDDA, ISO
- Trademark:csmiracleland
- Origin:Changsha, Hunan, China
- HS Code:82071910
- Production Capacity:10, 000PCS,Year
Description
Basic Info.
Model NO. T2-46 Shape Round Manufacturing Arts Sinter Kind Diamond Drill Transport Package Plywood Case & Carton Specification DCDMA, CDDA, ISO Trademark csmiracleland Origin Changsha, Hunan, China HS Code 82071910 Production Capacity 10, 000PCS/YearProduct Description
Impregnated bits with this profile are recommended for use in highly fractured formations with good drilling stability.T2 series core bits are used for surface exploration with the T2 series core barrel.
Impregnated bits can penetrate a broad range of formations from the softest to the hardest rocks. They are manufactured with very small, high quality synthetic diamonds mixed evenly through a tungsten carbide matrix. During drilling the matrix wears away evenly resulting in continuous exposure of new, sharp diamond points throughout the life of the bit.
All impregnated bits have T.C. and diamond gauge protection. The optimum diamond size, concentration and matrix composition varies according to the hardness and abrasiveness of the rock formations to be drilled.
Size:
Diamond Core Drill Bits Size Available: |
AQ, BQ, BQ3, NQ, NQ2, NQ3 (NQTT), HQ, HQ3 (HQTT), PQ, PQ3... |
T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-86, T2-101 |
T6-76, T6-86, T6-101, T6-116, T6-131, T6-146 |
T6S-76, T6S-86, T6S-116, T6S-131, T6S-146 |
TBW, TNW, PWF, SWF, UWF, ZWF |
AWG, BWG, NWG, HWG, AX, BX, NX, HX |
EWM, AWM, BWM, NWM, HWM, AWT, BWT, NWT, HWT |
LTK48, LTK60, BMLC, NMLC, HMLC |
B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
36, 46, 56, 59, 75, 91, 110, 130, 150, 170, 219, 275... |

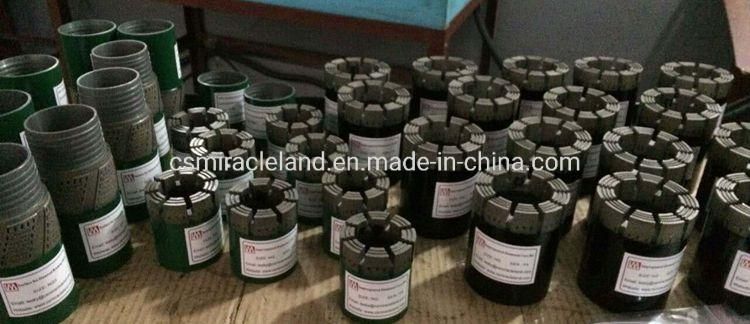

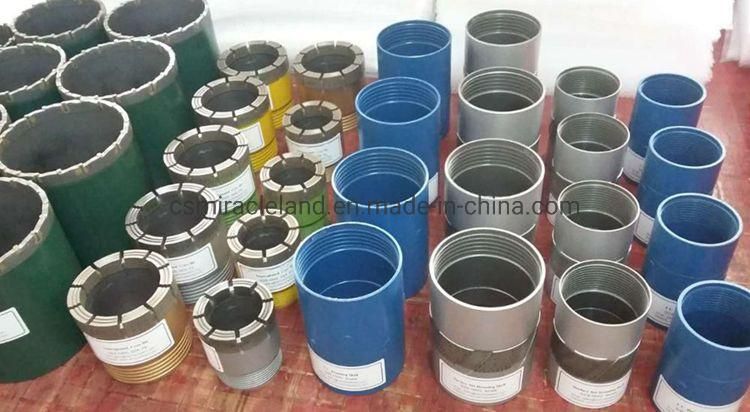

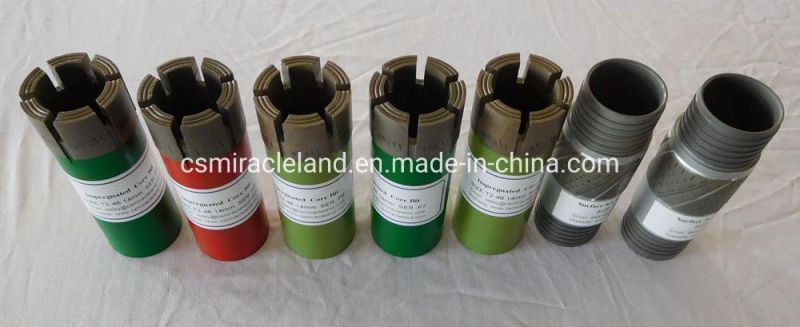

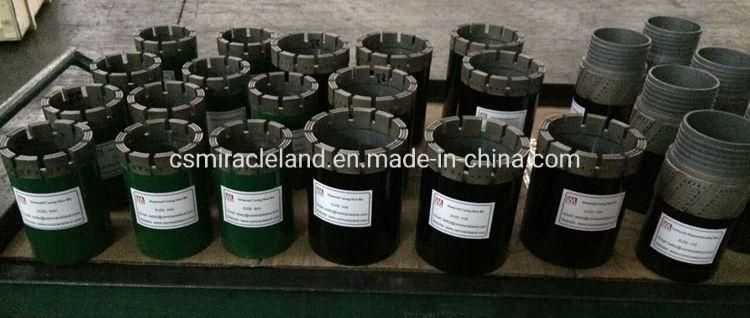

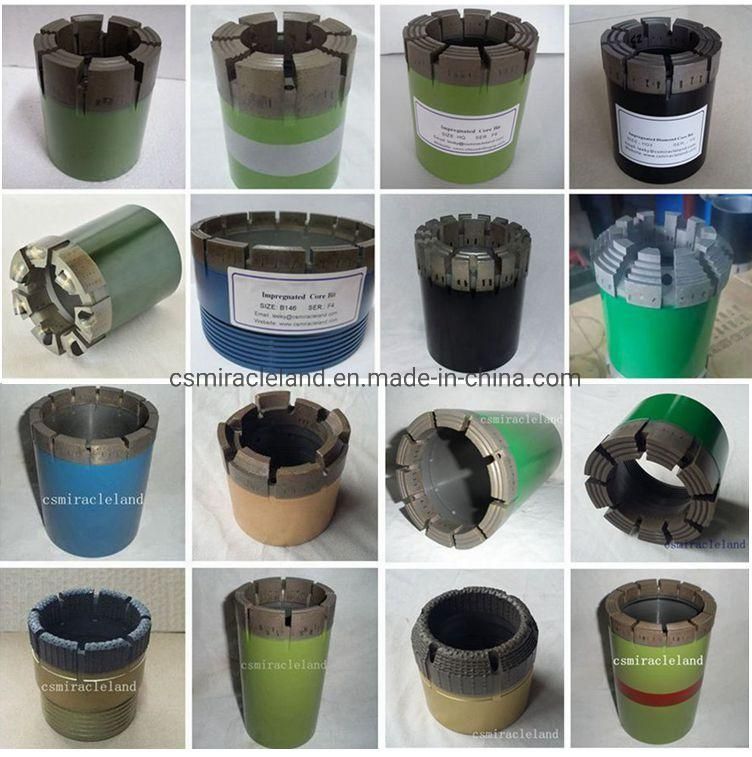

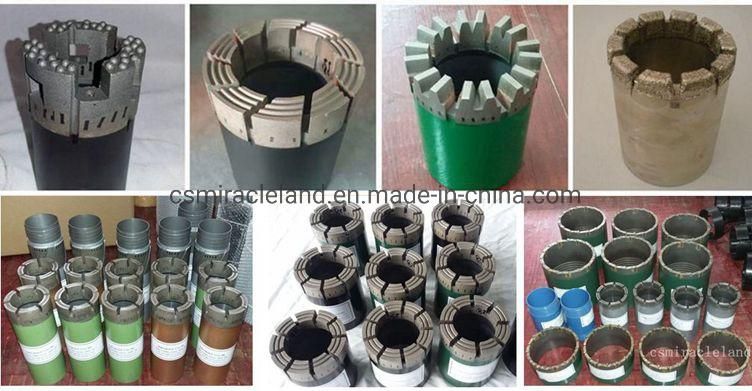

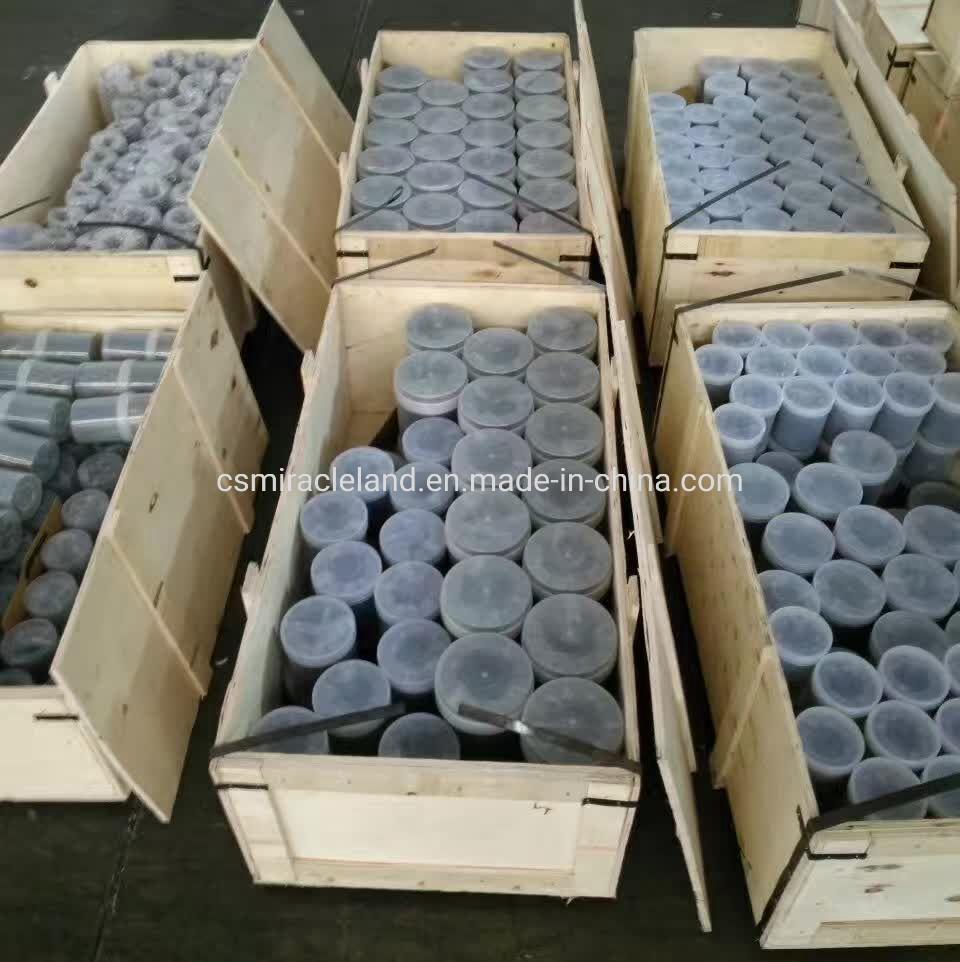

Related Pictures:
