• Model NO.：DNHL
• Transport Package：Single Packing with PVC Plastic Tube
• Specification：30*50mm
• Trademark：CHTOOLS
• Origin：China(Mainland)Zhejiang
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. DNHL Transport Package Single Packing with PVC Plastic Tube Specification 30*50mm Trademark CHTOOLS Origin China(Mainland)Zhejiang HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

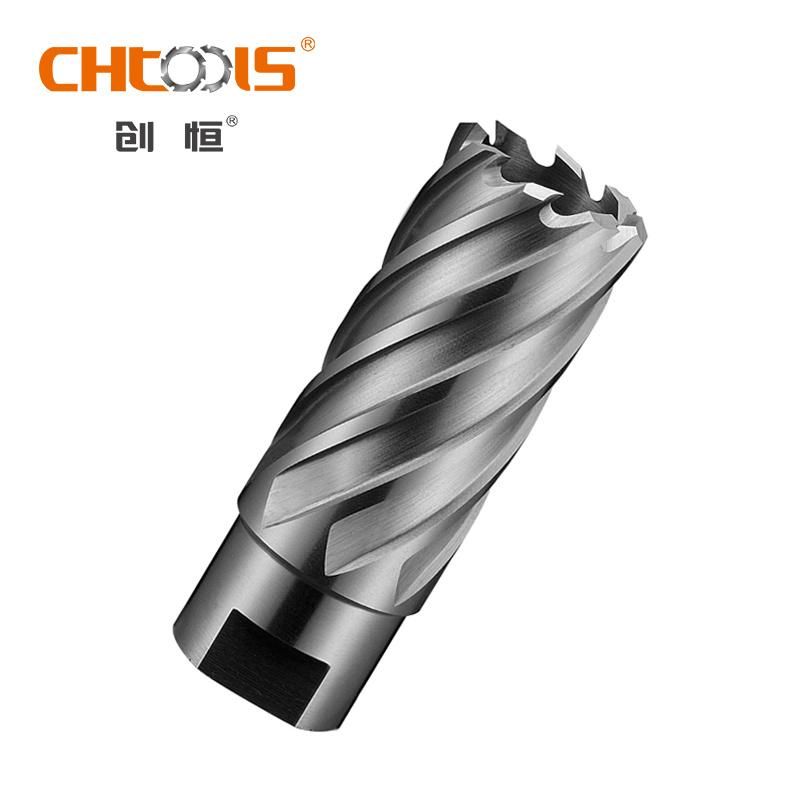

HSS thread shank 50mm depth magnetic drill bit

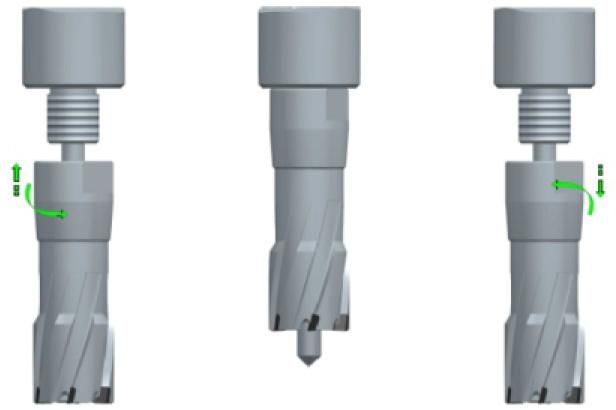

1. M18*6/P1.5 thread shank(inside). Suitable on Fein Magnetic drills.

2. Employing HSS-E for production, with excellent performance of high hardness, abrasion resistance and tenacity, the product will have a very long service life under stable processing status;

3. Based on different cutting depth, designing corresponding end-edge cutting geometry, which possesses good centering and blade collapse resistance performance;

4. Possessing all the shank types, and being suitable for all the magnet-seat drilling machines worldwide;

5. Complete and advanced heat treatment process and quality inspection standard, guarantee product quality;

6. Automatic CNC machine tool processing, with consistent and stable quality.


Type	Size	Type	Size
DNHL-40120	12*50	DNHL-40370	37*50
DNHL-40130	13*50	DNHL-40380	38*50
DNHL-40140	14*50	DNHL-40390	39*50
DNHL-40150	15*50	DNHL-40400	40*50
DNHL-40160	16*50	DNHL-40410	41*50
DNHL-40170	17*50	DNHL-40420	42*50
DNHL-40180	18*50	DNHL-40430	43*50
DNHL-40190	19*50	DNHL-40440	44*50
DNHL-40200	20*50	DNHL-40450	45*50
DNHL-40210	21*50	DNHL-40460	46*50
DNHL-40220	22*50	DNHL-40470	47*50
DNHL-40230	23*50	DNHL-40480	48*50
DNHL-40240	24*50	DNHL-40490	49*50
DNHL-40250	25*50	DNHL-40500	50*50
DNHL-40260	26*50
DNHL-40270	27*50
DNHL-40280	28*50
DNHL-40290	29*50
DNHL-40300	30*50
DNHL-40310	31*50
DNHL-40320	32*50
DNHL-40330	33*50
DNHL-40340	34*50
DNHL-40350	35*50
DNHL-40360	36*50
