Solid Carbide Drill Bit for Cutting Stainless Steel (SED-SCDB)
SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.- Customized:Customized
- Standard:DIN
- Length:Jobber-length
- Type:Twist Drill Bit
- Material:Tungsten Carbide
- Usage:Metal Drilling
Base Info
- Model NO.:SED-SCDB
- Process Art:Fully Ground, Milled
- Diameter:1mm-30mm
- Angle:135 or 118
- Surface Finish:Bright White
- Transport Package:PVC Bag, Blister Card, Box, Set Case etc
- Specification:SGS
- Trademark:EASYDRILL
- Origin:China
- HS Code:820750900
- Production Capacity:50, 000PCS,Month
Description
Basic Info.
Model NO. SED-SCDB Process Art Fully Ground, Milled Diameter 1mm-30mm Angle 135 or 118 Surface Finish Bright White Transport Package PVC Bag, Blister Card, Box, Set Case etc Specification SGS Trademark EASYDRILL Origin China HS Code 820750900 Production Capacity 50, 000PCS/MonthProduct Description

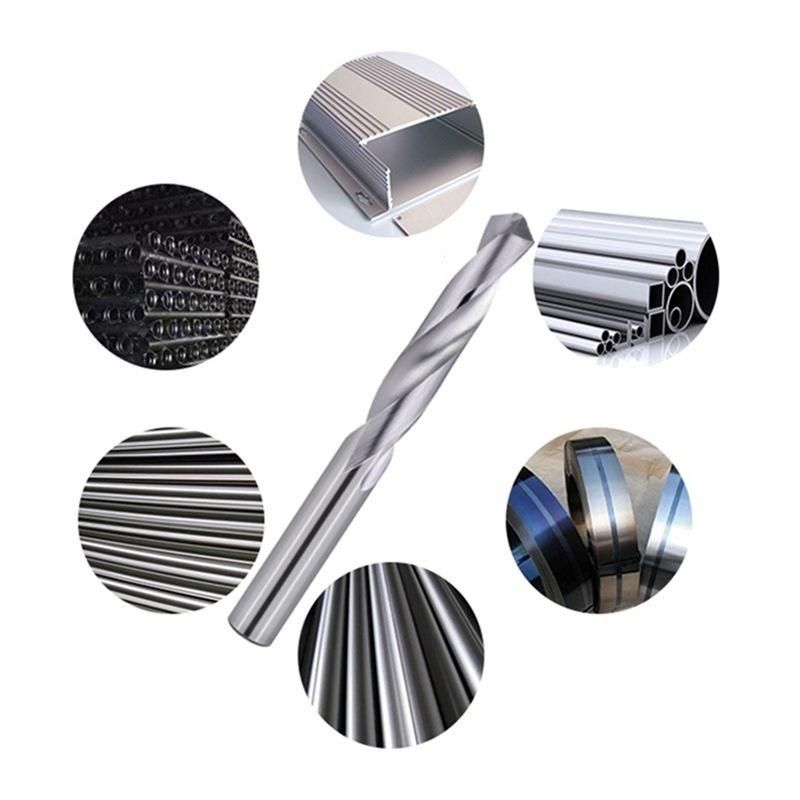

Solid Carbide Drill bits for cutting stainless steel1. Solid carbide lasting long life in hardened steel, high toughness, high -wearing feature.
2. Reduce the rudding coefficient & save the processing time, Specializing in high speed cutting of CNC drilling machine and dry-type process machining.
3. The shank can be customized according to customers' requirements.
4.Sizes:Diameter 1mm-30mm.
5.Standard: 1.0-25.0mm for DIN338, DIN1897, DIN340; 1/16"-1" for ASME, screw machine, taper length.
6.material:M35,M42
7.Process art: Fully ground, milled, roll forged
8.angle point: 118degree,118split point,135split point
9.Surfce finishing: Bright finished, black oxide, Tin-coated, black & white, black & gold,coffee color
10 Shank: Straight shank, reduced shank, taper shank taper shank drill bit,twist drill bit
11.Hardness: 64-66HRC
12.5/10 pieces packind in PVC bag, then in white paper box, then in carton
partial specifications:
Size (mm) | Flute Length (mm) | Overall Length | |
2 | 22 | 44mm | |
2.5 | 25 | 50mm | |
3 | 32 | 57mm | |
3.5 | 35 | 63mm | |
4 | 35 | 63mm | |
4.5 | 41 | 70mm | |
5 | 44 | 75mm | |
5.5 | 44 | 75mm | |
6 | 50 | 82mm | |
6.5 | 50 | 82mm | |
7 | 54 | 89mm | |
7.5 | 60 | 95mm | |
8 | 60 | 95mm | |
8.5 | 63 | 100mm | |
9 | 70 | 100mm | |
9.5 | 70 | 108mm | |
10 | 73 | 114mm | |
10.5 | 73 | 114mm | |
11 | 73 | 114mm | |
11.5 | 76 | 120mm | |
12 | 76 | 120mm |
