• Model NO.：K6 DTH hammer
• Size：1238*148*148mm
• Outside Dia6.：148mm
• Working Pressure：1.0-2.5MPa
• Air Consumption：9-26m3,min
• Dia. of Drilling hole：155-190mm
• Matched DTH bit：152-219mm drill bit
• Connection thread：Thread 3 1,2′′ REG
• packing box size：1330*188*228mm
• Impact frequency：25Hz
• Rotation speed：20-30rpm
• Transport Package：Wooden Case or Carton
• Specification：High pressure hammer
• Trademark：Kaishan
• Origin：Zhejiang, China
• HS Code：8431432000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. K6 DTH hammer Size 1238*148*148mm Outside Dia6. 148mm Working Pressure 1.0-2.5MPa Air Consumption 9-26m3/min Dia. of Drilling hole 155-190mm Matched DTH bit 152-219mm drill bit Connection thread Thread 3 1/2′′ REG packing box size 1330*188*228mm Impact frequency 25Hz Rotation speed 20-30rpm Transport Package Wooden Case or Carton Specification High pressure hammer Trademark Kaishan Origin Zhejiang, China HS Code 8431432000 Production Capacity 5000PCS/Month

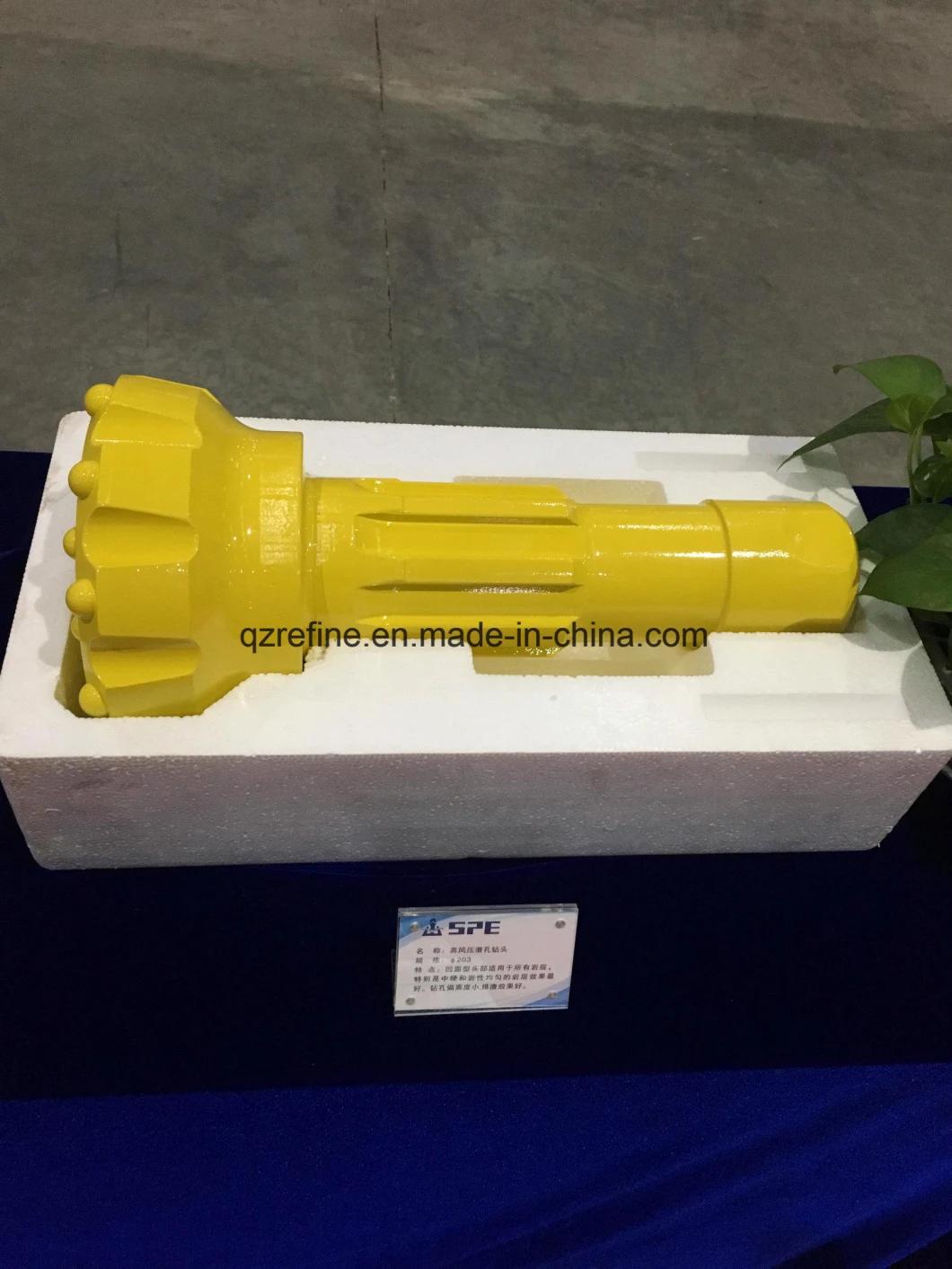

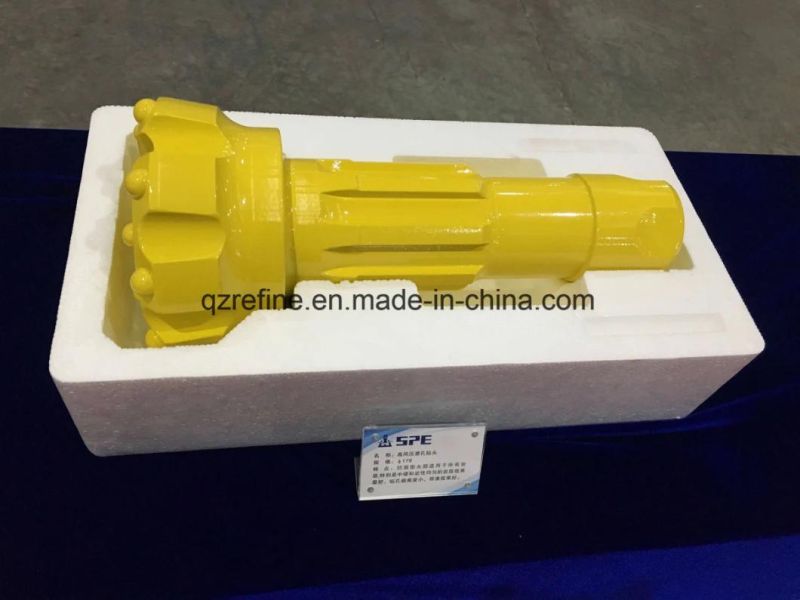

Product Description

DTH Hammer is one kind of basic drill equipmentfor drilling engineering. Pneumatic DTH hammer also named as pneumatic impactor, pneumatic DTH, DTH Impacter.

Powered by compressed air medium, the use of compressed air energy to produce a continuous bottom of the hole impact load power tool. Compressed air and can double as wash Kong media. Pneumatic impactor with high pressure and low pressure, valve and valveless of the points. Usually pneumatic impactor directly connected with carbide drill bit stelidium way to impact crushed rock, low-speed rotary drilling without coring comprehensive.
Main Usage:
Mainly used in hydrology and water well drilling, geological drilling without core, geological disaster prevention engineering and mine drilling and other fields. Suitable for gravel and hard rock applications, configure the special structure of the drill can also be used in the soft soil. ROP generally much higher than the hydraulic impactor drilling, but requires larger air compressor with capacity, greater fuel consumption, noise and dust pollution. Drilling depth by the groundwater level, water influence.

KAISHAN DTH Impact Hammer character/advantage
1.Fast drilling speed, low air consumption
2. Straightness and hole quality
3. High penetration rate
4. Excellent flushing

PARAMETER of K6 High pressure down the hole Impact Hammer




K6 High pressure impactor matched with 152-219mm DTH drill bit

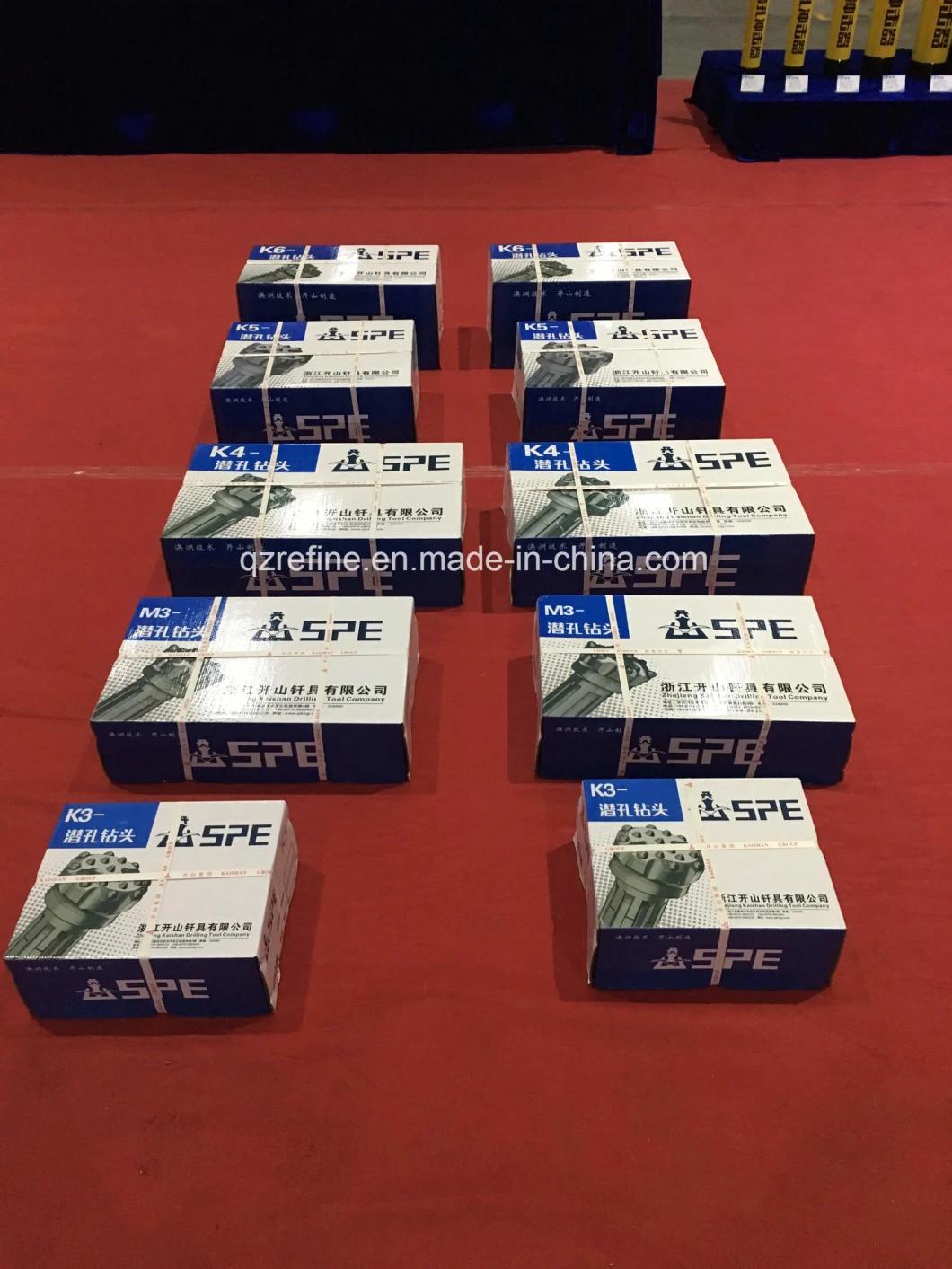

The package for hammer as below:

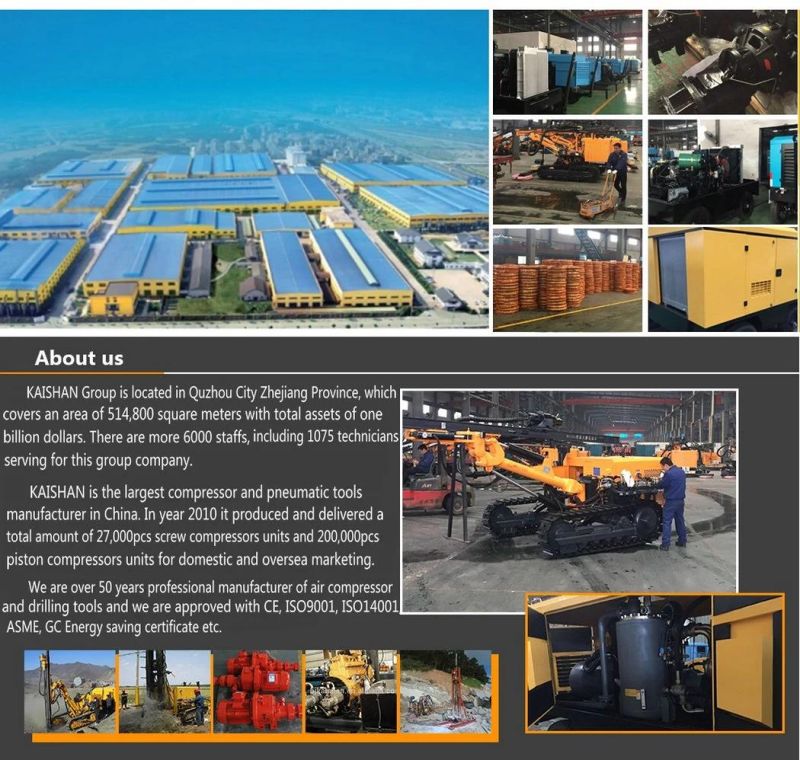

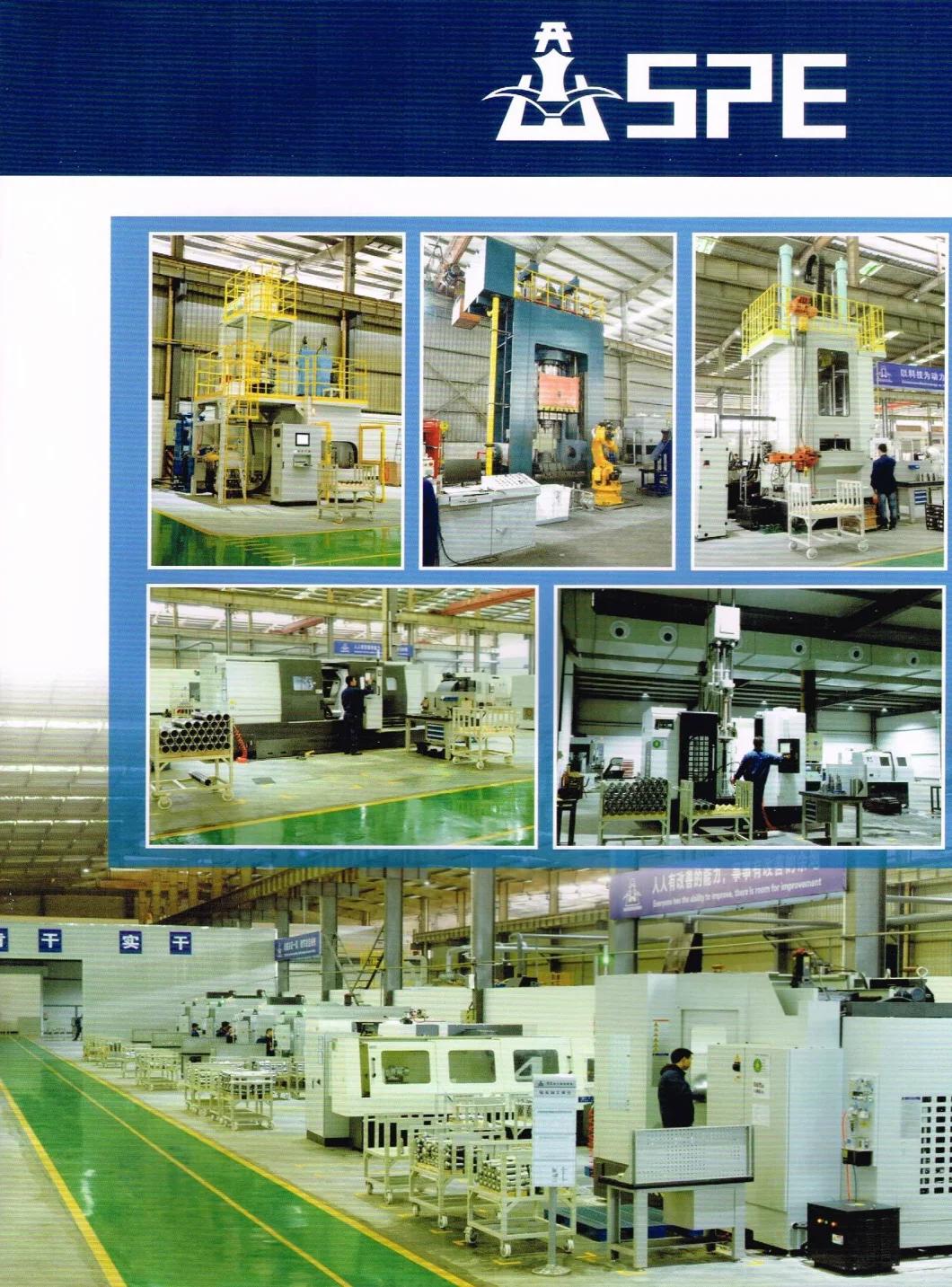

About Kaishan Group:




FQA collection:
1.Q: Are you a factory or trading company?
A: We  has our own factory to produce goods for you.

2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Quzhou City,Zhejiang Province China. You can fly to Hangzhou Airport directly.All our clients,from home or abroad,are warmly welcome to visit us.

3.Q: About samples
A: We are honored to offer you samples for your checking.Postage can be refund after order is confirmed.

4.Q:Package and Shipping
   A: Export packing or as your requirements. Shipment:

5. Q: Payment
   A:T/T:30% as deposit and 70% balance after get copy of B/L.
   B:L/C
   C:Western Union
   D:Paypal
   E:Discuss together between buyer and supplier.
