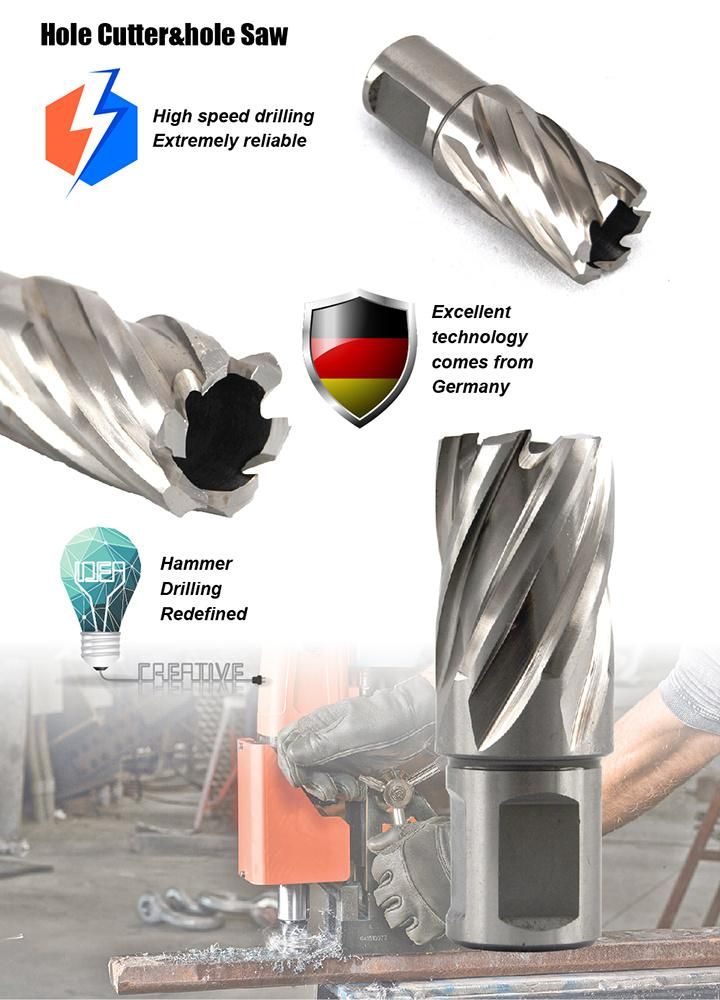

Supreme Quality HSS M2 Annular Broaching Cutter with Weldon Shank for Metal Steel Alloyed Unalloyed Non-Ferrous Metal Board Sheet Cutting
ZHENJIANG HTT TOOL CO., LTD.- Customized:Customized
- Standard:DIN
- Length:25mm to 100mm
- Type:Core Drill Bit
- Material:High Speed Steel
- Usage:Metal Drilling
Base Info
- Model NO.:9001
- Saw Teeth Type:HSS M2
- Pilot Drill:Hcs Pin
- Max. Cutting Depth:25 to 100mm
- Marking:Laser Marking
- Surface Treatment:Bright Finished
- Accessories:1PC Hcs Pin
- Teeth Style:Dual-Cut
- Transport Package:Blister, Color Paper Hanger, Paper Box, Tubes
- Specification:12mm to 60mm diameter
- Trademark:OEM, HTT
- Origin:China
- HS Code:8207509000
- Production Capacity:4800000PCS,Year
Description
Basic Info.
Model NO. 9001 Saw Teeth Type HSS M2 Pilot Drill Hcs Pin Max. Cutting Depth 25 to 100mm Marking Laser Marking Surface Treatment Bright Finished Accessories 1PC Hcs Pin Teeth Style Dual-Cut Transport Package Blister, Color Paper Hanger, Paper Box, Tubes Specification 12mm to 60mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/YearProduct Description

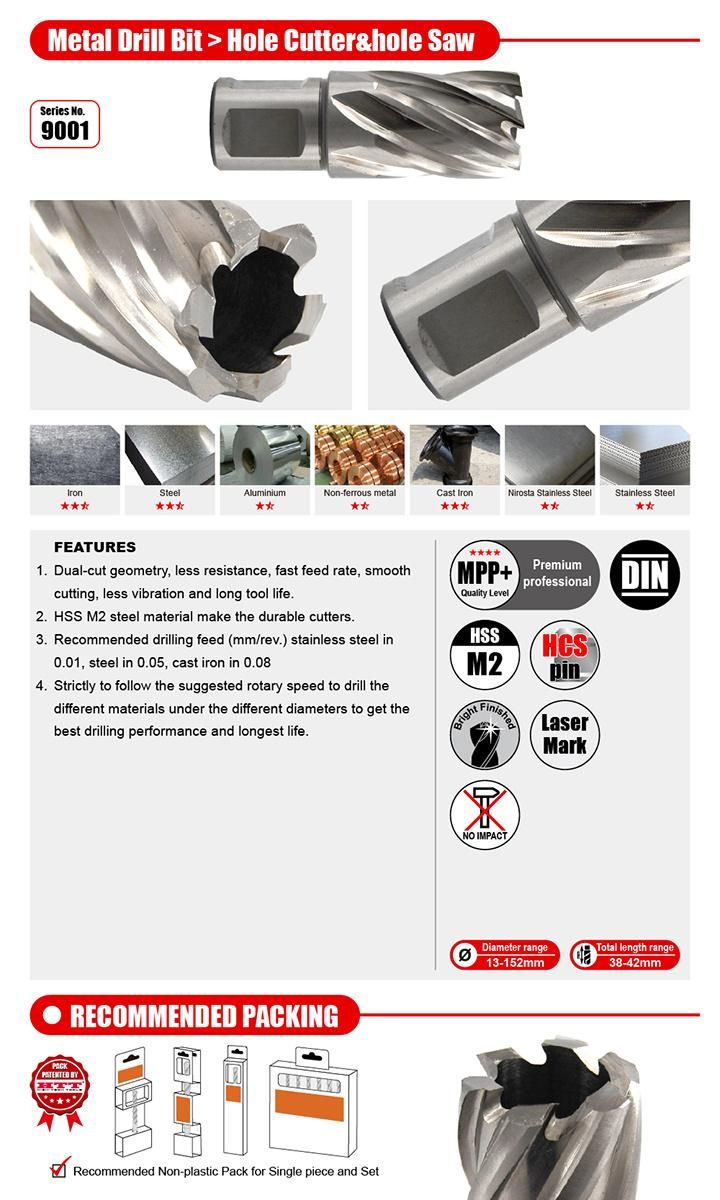

* HSS M2 Annular Broach Cutter with pin and Weldon shank for cutting holes in various metal board, alloyed steel, unalloyed steel, non-ferrous metal, stainless steel sheet, fiberboard, wood board, etc.* Hardened HSS M2 Dual-cut cutting edges last longer with higher cutting efficiency.
* Shank type on Weldon shank type to fit those Alfra, BDS, Ruko, etc . magnetic drills, turning machine, milling machine, etc.
*Other special sizes and cutting depth of 30mm, 75mm and 100mm are also available on the customers' special request.
Item Number | Diameter(mm) | Cutting Depth(mm) | Shank Diameter(mm) | Item Number | Diameter(mm) | Cutting Depth(mm) | Shank Diameter(mm) |
9001.120025 | 12 | 25 | 19.05 | 9001.120050 | 12 | 50 | 19.05 |
9001.130025 | 13 | 25 | 19.05 | 9001.130050 | 13 | 50 | 19.05 |
9001.140025 | 14 | 25 | 19.05 | 9001.140050 | 13 | 50 | 19.05 |
9001.150025 | 14 | 25 | 19.05 | 9001.140050 | 14 | 50 | 19.05 |
9001.160025 | 16 | 25 | 19.05 | 9001.160050 | 16 | 50 | 19.05 |
9001.170025 | 17 | 25 | 19.05 | 9001.170050 | 17 | 50 | 19.05 |
9001.180025 | 18 | 25 | 19.05 | 9001.180050 | 18 | 50 | 19.05 |
9001.190025 | 19 | 25 | 19.05 | 9001.190050 | 19 | 50 | 19.05 |
9001.200025 | 20 | 25 | 19.05 | 9001.200050 | 20 | 50 | 19.05 |
9001.210025 | 21 | 25 | 19.05 | 9001.210050 | 21 | 50 | 19.05 |
9001.220025 | 22 | 25 | 19.05 | 9001.220050 | 22 | 50 | 19.05 |
9001.230025 | 23 | 25 | 19.05 | 9001.230050 | 23 | 50 | 19.05 |
9001.240025 | 24 | 25 | 19.05 | 9001.240050 | 24 | 50 | 19.05 |
9001.250025 | 25 | 25 | 19.05 | 9001.250050 | 25 | 50 | 19.05 |
9001.260025 | 26 | 25 | 19.05 | 9001.260050 | 26 | 50 | 19.05 |
9001.270025 | 27 | 25 | 19.05 | 9001.270050 | 27 | 50 | 19.05 |
9001.280025 | 28 | 25 | 19.05 | 9001.280050 | 28 | 50 | 19.05 |
9001.290025 | 29 | 25 | 19.05 | 9001.290050 | 29 | 50 | 19.05 |
9001.300025 | 30 | 25 | 19.05 | 9001.300050 | 30 | 50 | 19.05 |
9001.310025 | 31 | 25 | 19.05 | 9001.310050 | 31 | 50 | 19.05 |
9001.320025 | 32 | 25 | 19.05 | 9001.320050 | 32 | 50 | 19.05 |
9001.330025 | 33 | 25 | 19.05 | 9001.330050 | 33 | 50 | 19.05 |
9001.340025 | 34 | 25 | 19.05 | 9001.340050 | 34 | 50 | 19.05 |
9001.350025 | 35 | 25 | 19.05 | 9001.350050 | 35 | 50 | 19.05 |
9001.360025 | 36 | 25 | 19.05 | 9001.360050 | 36 | 50 | 19.05 |
9001.370025 | 37 | 25 | 19.05 | 9001.370050 | 37 | 50 | 19.05 |
9001.380025 | 38 | 25 | 19.05 | 9001.380050 | 38 | 50 | 19.05 |
9001.390025 | 39 | 25 | 19.05 | 9001.390050 | 39 | 50 | 19.05 |
9001.400025 | 40 | 25 | 19.05 | 9001.400050 | 40 | 50 | 19.05 |
9001.410025 | 41 | 25 | 19.05 | 9001.410050 | 41 | 50 | 19.05 |
9001.420025 | 42 | 25 | 19.05 | 9001.420050 | 42 | 50 | 19.05 |
9001.430025 | 43 | 25 | 19.05 | 9001.430050 | 43 | 50 | 19.05 |
9001.440025 | 44 | 25 | 19.05 | 9001.440050 | 44 | 50 | 19.05 |
9001.450025 | 45 | 25 | 19.05 | 9001.450050 | 45 | 50 | 19.05 |
9001.460025 | 46 | 25 | 19.05 | 9001.460050 | 46 | 50 | 19.05 |
9001.470025 | 47 | 25 | 19.05 | 9001.470050 | 47 | 50 | 19.05 |
9001.480025 | 48 | 25 | 19.05 | 9001.480050 | 48 | 50 | 19.05 |
9001.490025 | 49 | 25 | 19.05 | 9001.490050 | 49 | 50 | 19.05 |
9001.500025 | 50 | 25 | 19.05 | 9001.500050 | 50 | 50 | 19.05 |
9001.510025 | 51 | 25 | 19.05 | 9001.510050 | 50 | 51 | 19.05 |
9001.520025 | 52 | 25 | 19.05 | 9001.520050 | 52 | 50 | 19.05 |
9001.530025 | 53 | 25 | 19.05 | 9001.530050 | 53 | 50 | 19.05 |
9001.540025 | 54 | 25 | 19.05 | 9001.540050 | 54 | 50 | 19.05 |
9001.550025 | 55 | 25 | 19.05 | 9001.550050 | 55 | 50 | 19.05 |
9001.560025 | 56 | 25 | 19.05 | 9001.560050 | 56 | 50 | 19.05 |
9001.570025 | 57 | 25 | 19.05 | 9001.570050 | 57 | 50 | 19.05 |
9001.580025 | 58 | 25 | 19.05 | 9001.580050 | 58 | 50 | 19.05 |
9001.590025 | 59 | 25 | 19.05 | 9001.590050 | 59 | 50 | 19.05 |
9001.600025 | 60 | 25 | 19.05 | 9001.600050 | 60 | 50 | 19.05 |
