German Quality 3 Blade Multi Cutter Hammer Drill SDS Max for Concrete Brick Stone Reinforcement Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized:Customized
- Standard:DIN
- Length:300mm to 1500mm
- Type:Twist Drill Bit
- Material:Tungsten Carbide
- Usage:Masonry Drilling
Base Info
- Model NO.:5133
- Carbide Type:3pieces of Ceratizit Splus Bc20
- Steel Type:40cr
- Surface Treatment:Shot-Peened
- Cutter Type:Splus
- Flute Type:H-Plus
- Marking:Stamped
- Welding Type:AVS. (Automatic Vacuum Soldering)
- Transport Package:Clip Hanger, Color Paper Box, Paper Box, Tubes
- Specification:Diameter 18mm to 42mm
- Trademark:OEM, HTT
- Origin:China
- HS Code:8207509000
- Production Capacity:360000,Year
Description
Basic Info.
Model NO. 5133 Carbide Type 3pieces of Ceratizit Splus Bc20 Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Splus Flute Type H-Plus Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Transport Package Clip Hanger, Color Paper Box, Paper Box, Tubes Specification Diameter 18mm to 42mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 360000/YearProduct Description

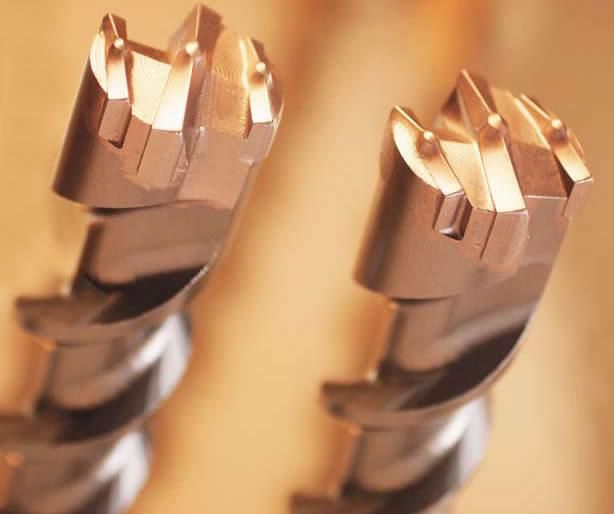

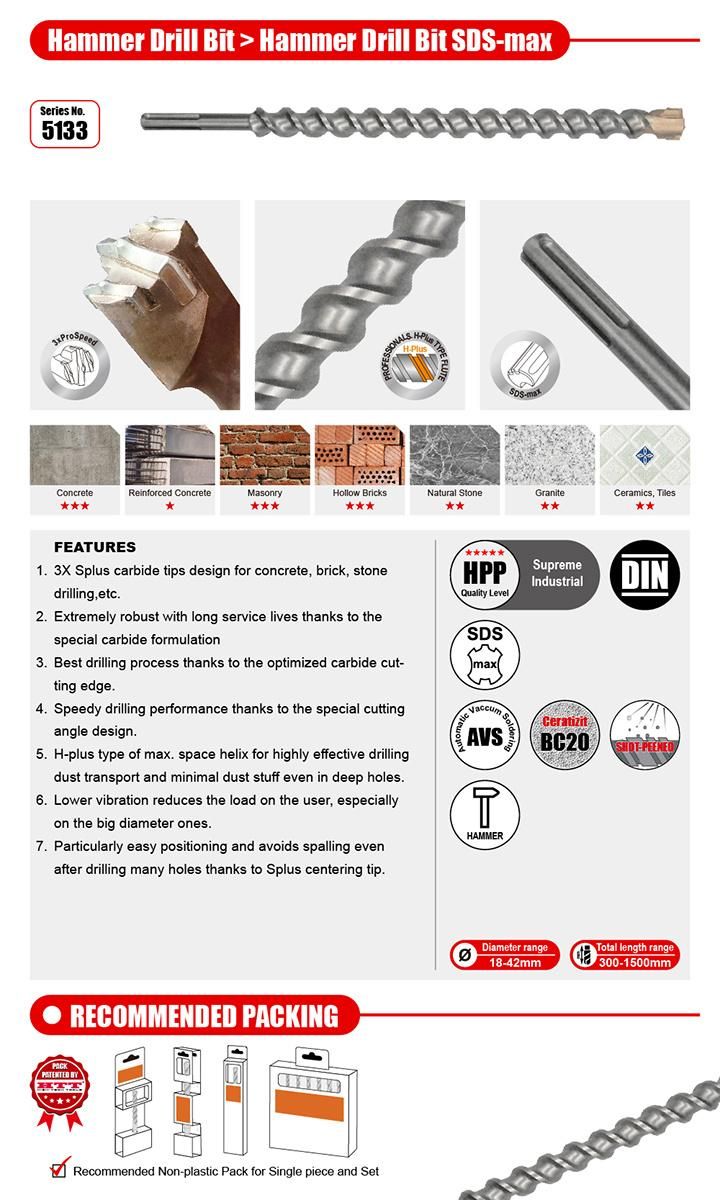

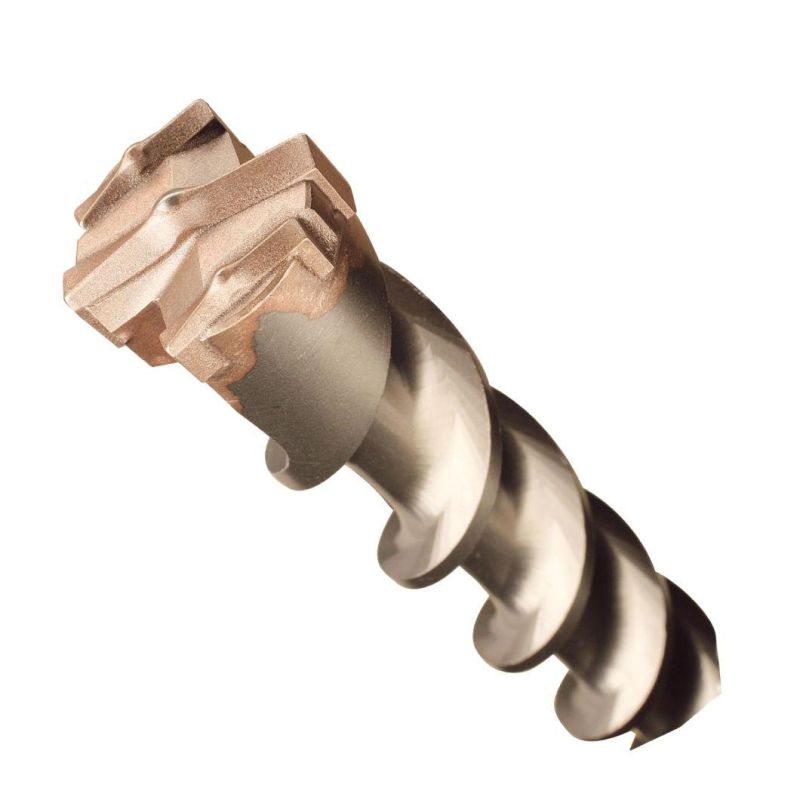

*3 Blade Multi Cutter Hammer Drill SDS-max for concrete reinforcement cement brick stone drilling* Ceratizit made BC20 Splus shape carbide tip combination of 3 Blades to guarantee the best drilling life and durability for different heavy duty drilling work
* SDS-max shank under Bosch audited to fit branded rotary hammers.
* H-plus type of flute maximizes the dust-rejection rate in faster drilling.
* Specially hardened steel blank guarantees the best durability to unify the carbide drilling life.
* Fast spiral flute angle design to increase drilling efficiency in building material.
* Design for all concrete drilling.
* The self-centering tip supports more precision.
*Available sizes for Choices( The special sizes are also available on the customers' special request. )
Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
5133.180340 | 18 | 200 | 340 |
5133.180540 | 18 | 400 | 540 |
5133.180690 | 18 | 550 | 690 |
5133.180920 | 18 | 800 | 920 |
5133.181320 | 18 | 1200 | 1320 |
5133.190340 | 19 | 200 | 340 |
5133.190540 | 19 | 400 | 540 |
5133.190690 | 19 | 550 | 690 |
5133.190920 | 19 | 800 | 920 |
5133.200340 | 20 | 200 | 340 |
5133.200540 | 20 | 400 | 540 |
5133.200690 | 20 | 550 | 690 |
5133.200920 | 20 | 800 | 920 |
5133.201320 | 20 | 1200 | 1320 |
5133.220340 | 22 | 200 | 340 |
5133.220540 | 22 | 400 | 540 |
5133.220690 | 22 | 550 | 690 |
5133.220920 | 22 | 800 | 920 |
5133.221320 | 22 | 1200 | 1320 |
5133.240340 | 24 | 200 | 340 |
5133.240540 | 24 | 400 | 540 |
5133.240690 | 24 | 550 | 690 |
5133.240920 | 24 | 800 | 920 |
5133.241320 | 24 | 1200 | 1320 |
5133.250340 | 25 | 200 | 340 |
5133.250540 | 25 | 400 | 540 |
5133.250690 | 25 | 550 | 690 |
5133.250920 | 25 | 800 | 920 |
5133.251320 | 25 | 1200 | 1320 |
5133.260340 | 26 | 200 | 340 |
5133.260540 | 26 | 400 | 540 |
5133.260670 | 26 | 550 | 670 |
5133.260920 | 26 | 800 | 920 |
5133.261320 | 26 | 1200 | 1320 |
5133.280370 | 28 | 250 | 370 |
5133.280570 | 28 | 450 | 570 |
5133.280670 | 28 | 550 | 670 |
5133.280920 | 28 | 800 | 920 |
5133.281320 | 28 | 1200 | 1320 |
5133.300370 | 30 | 250 | 370 |
5133.300570 | 30 | 450 | 570 |
5133.300670 | 30 | 550 | 670 |
5133.300920 | 30 | 800 | 920 |
5133.301320 | 30 | 1200 | 1320 |
5133.320370 | 32 | 250 | 370 |
5133.320570 | 32 | 450 | 570 |
5133.320670 | 32 | 550 | 670 |
5133.320920 | 32 | 800 | 920 |
5133.321320 | 32 | 1200 | 1320 |
5133.321500 | 32 | 1380 | 1500 |
5133.350370 | 35 | 250 | 370 |
5133.350570 | 35 | 450 | 570 |
5133.350670 | 35 | 550 | 670 |
5133.350920 | 35 | 800 | 920 |
5133.351320 | 35 | 1200 | 1320 |
5133.360370 | 36 | 250 | 370 |
5133.360570 | 36 | 450 | 570 |
5133.360670 | 36 | 550 | 670 |
5133.360920 | 36 | 800 | 920 |
5133.361320 | 36 | 1200 | 1320 |
5133.380370 | 38 | 250 | 370 |
5133.380570 | 38 | 450 | 570 |
5133.380670 | 38 | 550 | 670 |
5133.380920 | 38 | 800 | 920 |
5133.381320 | 38 | 1200 | 1320 |
5133.400370 | 40 | 250 | 370 |
5133.400570 | 40 | 450 | 570 |
5133.400670 | 40 | 550 | 670 |
5133.400920 | 40 | 800 | 920 |
5133.401320 | 40 | 1200 | 1320 |
5133.420370 | 42 | 250 | 370 |
5133.420570 | 42 | 450 | 570 |
5133.420670 | 42 | 550 | 670 |
5133.420920 | 42 | 800 | 920 |
5133.421320 | 42 | 1200 | 1320 |
