• Model NO.：3300
• Carbide Type：Ceratizit Bc10
• Steel Shaft Type：40cr
• Flute Type：H
• Shank Type：Cylindrical Shank
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Surface Treatment：Shot-Peened
• Certificate：Pgm
• Transport Package：Paper Hanger, PVC Bag, Skin Pack, Blister Pack
• Specification：3mm to 25mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：2400000

Basic Info.

Model NO. 3300 Carbide Type Ceratizit Bc10 Steel Shaft Type 40cr Flute Type H Shank Type Cylindrical Shank Welding Type AVS. (Automatic Vacuum Soldering) Surface Treatment Shot-Peened Certificate Pgm Transport Package Paper Hanger, PVC Bag, Skin Pack, Blister Pack Specification 3mm to 25mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000

Product Description

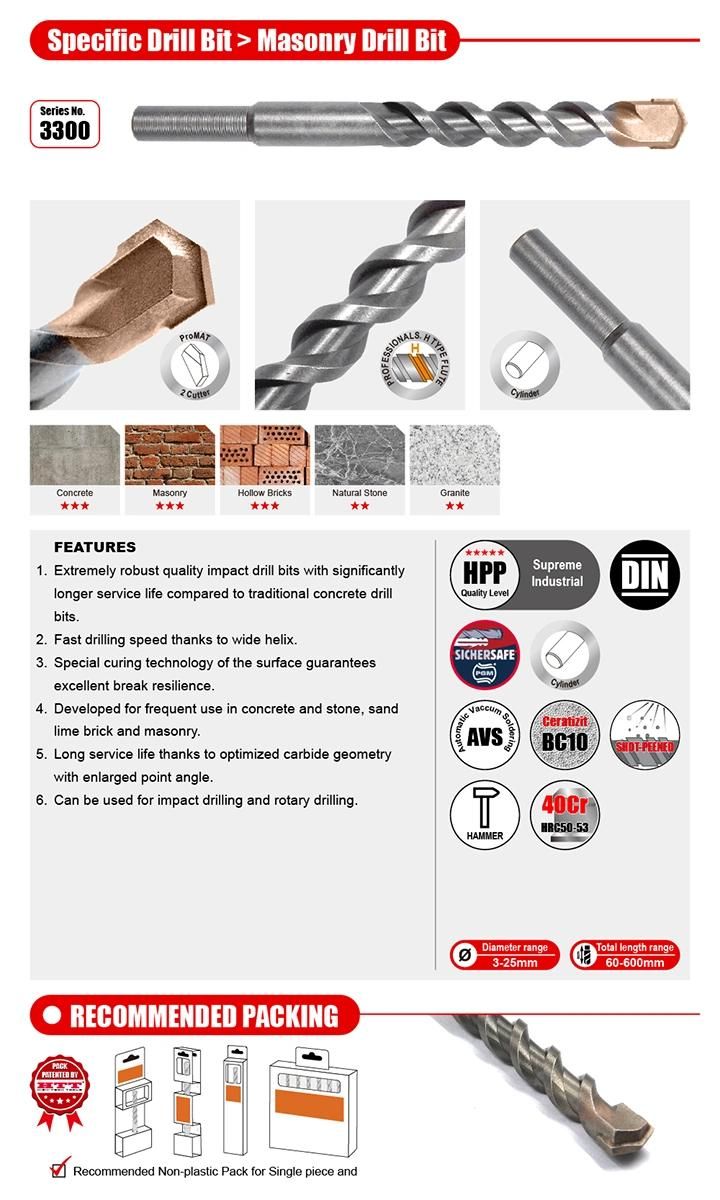

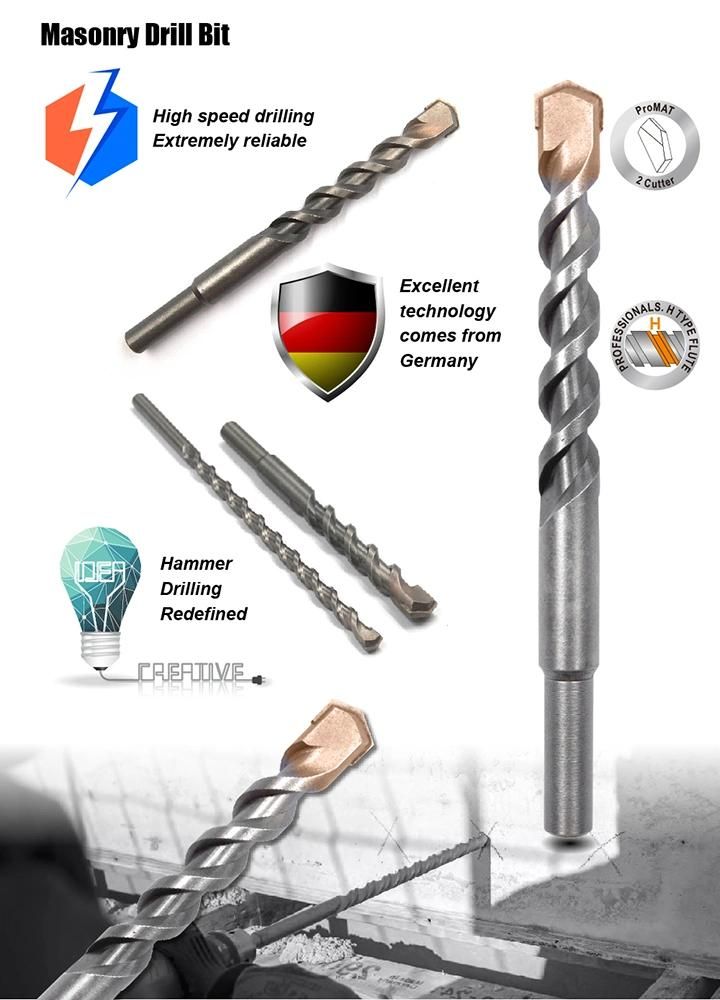

* Masonry Drill Bit Cylindrical Shank, PGM certificated, Automatic Vacuum Soldered, Shot-peened surface

* Carbide tips are supplied By Ceratizit, one of the most professional tungsten carbides manufacturers in the globe, which is in Luxemburg.

* H flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for an easy longer-time drilling job.

* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.

* PGM certificated carbide size, carbide welded symmetry, and rotary run-out straightness for industrial professional applications.


 *Available sizes for Choices(The special sizes are also available on the customers' special request)

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
3300.030060	3	30	60
3300.030070	3	35	70
3300.030085	3	45	85
3300.040075	4	35	75
3300.040085	4	45	85
3300.040090	4	50	90
3300.040150	4	110	150
3300.050090	5	45	90
3300.050095	5	50	95
3300.050100	5	60	100
3300.050150	5	110	150
3300.050250	5	200	250
3300.050300	5	250	300
3300.050400	5	260	400
3300.050500	5	360	500
3300.055095	5.5	50	95
3300.055100	5.5	60	100
3300.055150	5.5	110	150
3300.060100	6	60	100
3300.060150	6	110	150
3300.060200	6	130	200
3300.060260	6	190	260
3300.060300	6	230	300
3300.060400	6	340	400
3300.060600	6	460	600
3300.065100	6.5	60	100
3300.065150	6.5	110	150
3300.065200	6.5	130	200
3300.065260	6.5	190	260
3300.065300	6.5	230	300
3300.065400	6.5	340	400
3300.070100	7	60	100
3300.070120	7	80	120
3300.070150	7	110	150
3300.070300	7	230	300
3300.070400	7	340	400
3300.070500	7	360	500
3300.080120	8	80	120
3300.080150	8	110	150
3300.080200	8	130	200
3300.080260	8	190	260
3300.080300	8	230	300
3300.080400	8	340	400
3300.080600	8	460	600
3300.090120	9	80	120
3300.090150	9	110	150
3300.100120	10	80	120
3300.100150	10	110	150
3300.100200	10	135	200
3300.100260	10	190	260
3300.100300	10	230	300
3300.100400	10	340	400
3300.100600	10	460	610
3300.120130	12	80	130
3300.120150	12	90	150
3300.120200	12	150	200
3300.120260	12	150	260
3300.120300	12	230	300
3300.120400	12	340	400
3300.120600	12	460	600
3300.121000	12	900	1000
3300.130150	13	90	150
3300.130200	13	150	200
3300.130300	13	230	300
3300.140150	14	90	150
3300.140200	14	135	200
3300.140260	14	200	260
3300.140300	14	230	300
3300.140400	14	340	400
3300.140600	14	460	600
3300.160150	16	90	150
3300.160200	16	135	200
3300.160250	16	200	260
3300.160300	16	230	300
3300.160400	16	340	400
3300.160600	16	460	600
3300.180160	18	100	160
3300.180200	18	135	200
3300.180300	18	230	300
3300.180400	18	340	400
3300.180600	18	460	600
3300.200160	20	100	160
3300.200200	20	135	200
3300.200260	20	200	260
3300.200300	20	230	300
3300.200400	20	340	400
3300.200600	20	460	600
3300.220160	22	100	160
3300.220200	22	135	200
3300.220300	22	230	300
3300.220400	22	340	400
3300.250160	25	100	160
3300.250200	25	135	200
3300.250300	25	230	300
3300.250400	25	340	400
