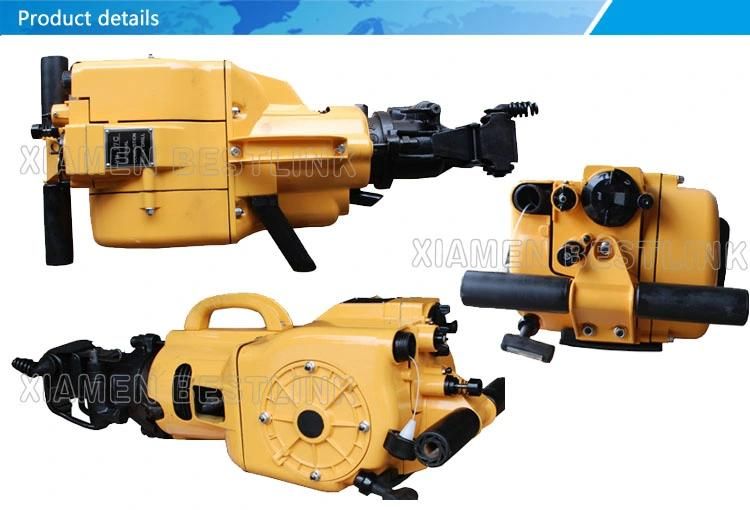

Yn27c Petrol/Gasoline/Gas Rock Drill Machine for Drilling Holes

Xiamen Bestlink Factory Co., Ltd.
  • Standard：ISO
  • Length：6m
  • Usage：Coal, Ore
  • Material：Stainless Steel
  • Condition：New
  • Power Type：Drill

Base Info

  • Model NO.：YN27
  • Type：Drilling Machine
  • Color：Yellow
  • Gross Weigh：27kgs
  • Function：New
  • Hole Diameter：28-42mm
  • Mining Object：Coal Machinery
  • Transport Package：Carton
  • Specification：CE
  • Trademark：BESTLINK
  • Origin：China
  • HS Code：84671100
  • Production Capacity：1000000PCS Per Year

Description

Technical specificationsWeight of main machine27kgOverall dimensions(L*W*H)746*315*229mmType of engineSingle cylinder, air cooled two strokesCylinder diameter*stroke of pistonΦ58*70mmRotation speed of engine≥2450rpmDisplacement of engine piston185cm³Type of carburetorhand needle valve, floatless typeIgnition systemcontrollable silicon, contactless systemDrilling speed (mean value of five holes)≥250mm/minDrilling hole diameterΦ28-42mmMax drilling depth6mFuel consumption≤0.12L/mTank capacity≥1.5literMixture ratio of gasoline and lubrication oil (in volumes)12:01Drill rod and breaker shankHex22*108mmRotating speed of drill rod≥200rounds/minClearance of spark plug0.5-0.7mm
