DIN338 Fully Ground Jobber Length HSS Co Drills HSS P6m5 Twist Drill Bit with Bright Surface Coating (SED-TDB-COW)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Twist Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-TDB-COW
  • Dia Size：1.0mm-20mm
  • Production Art：Fully Ground
  • Min Quantity：2000PCS,Size
  • Packing：PVC Bag,Setcase,Plastic Box,Metal Box
  • Surface Finish：Bright White
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：200, 000PCS,Month

Description

Product Name DIN338 Jobber Length Gost Fully Ground HSS co Twist Drill Bit for Metal Stainless SteelMaterial HSS                 (HSS Cobalt is Available)Process Fully Ground   (Fully Ground, Rolled, Milled are Available)Standard

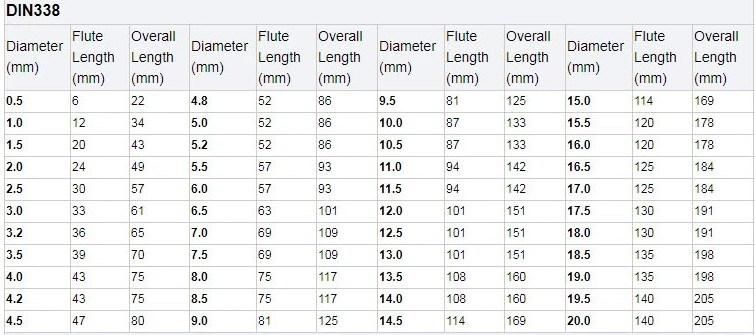

 DIN338              (Stub DIN1897, Long DIN340, Extra Long DIN1869,

                            Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

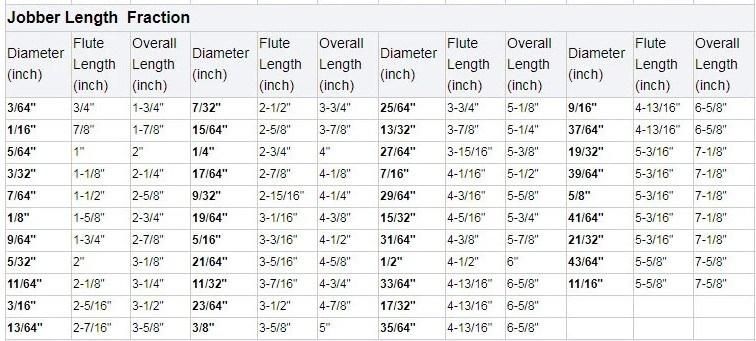

 Jobber Length  (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,

                             Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

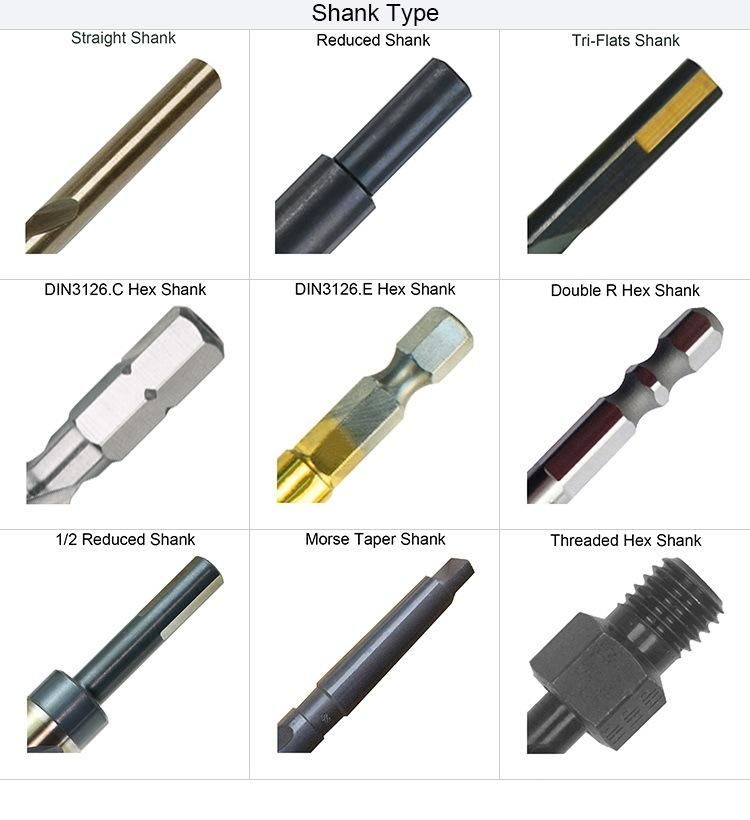

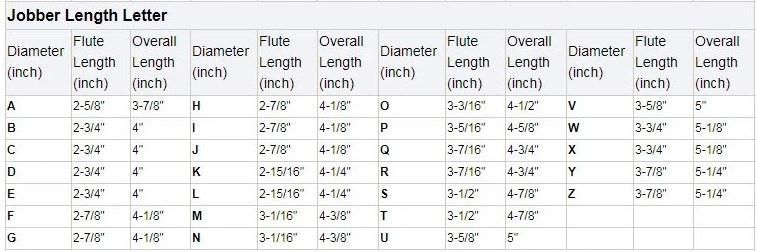

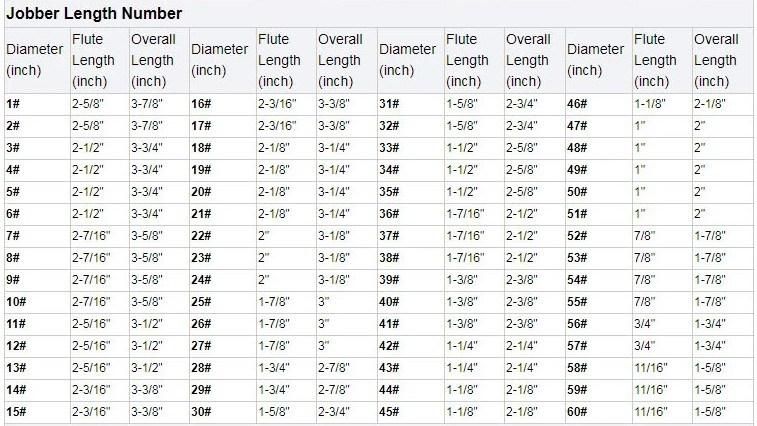

Size 1 - 20mm, 1/16" - 1" , A - Z, 1# - 90#Point Type 118 Degree Regular Point ( 135 Degree Split Point, Turbo Max Point, Pilot Point are Available)Shank Type

 Straight Shank  (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

                              Threaded Hex Shank,Taper Shank are Available)

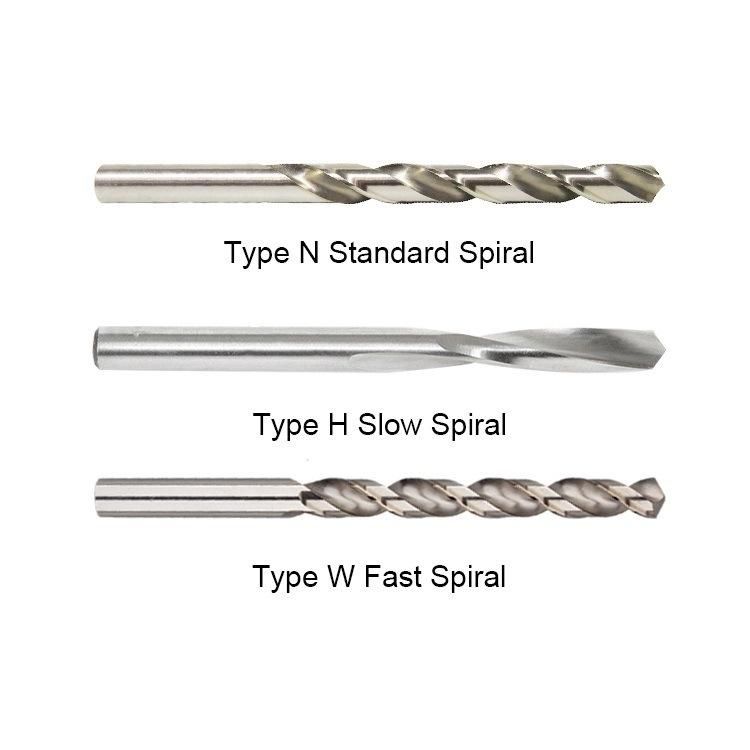

Helix Angle Regular Spiral Type N  (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)Web & Flute Type Regular Web & Flute  (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)Surface Finish Bright  (Black Oxide, Amber Color, Titanium, Black & Gold, Black & Bright are Available)Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features

 1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness   and toughness for wear resistance.

 2.Universal 118° point shape for drilling a wide selection of materials.

 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
 4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface

 of   the bit.
 5.DIN 338 jobber series drill bits are ideal for many trade and industrial projects.
