German Quality Splus Cross Cutter Hammer Drill SDS Plus 2 Flutes for Fast Drilling Concrete Brick Stone Granite Marble Cement
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：110mm to 1000mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：2119
- Carbide Type：Ceratizit Bc20 CT-4
- Steel Type：40cr
- Surface Treatment：Shot-Peened
- Cutter Type：Splus Cross Cutter
- Flute Type：O
- Marking：Stamped
- Welding Type：AVS. (Automatic Vacuum Soldering)
- Certificated：Bosch Audited SDS-Plus Logo
- Transport Package：Clip Hanger, Paper Hanger, Blister, Skin, PVC Bag
- Specification：5mm to 35mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：24000000PCS,Year
Description
Basic Info.
Model NO. 2119 Carbide Type Ceratizit Bc20 CT-4 Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Splus Cross Cutter Flute Type O Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Certificated Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Paper Hanger, Blister, Skin, PVC Bag Specification 5mm to 35mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 24000000PCS/YearProduct Description

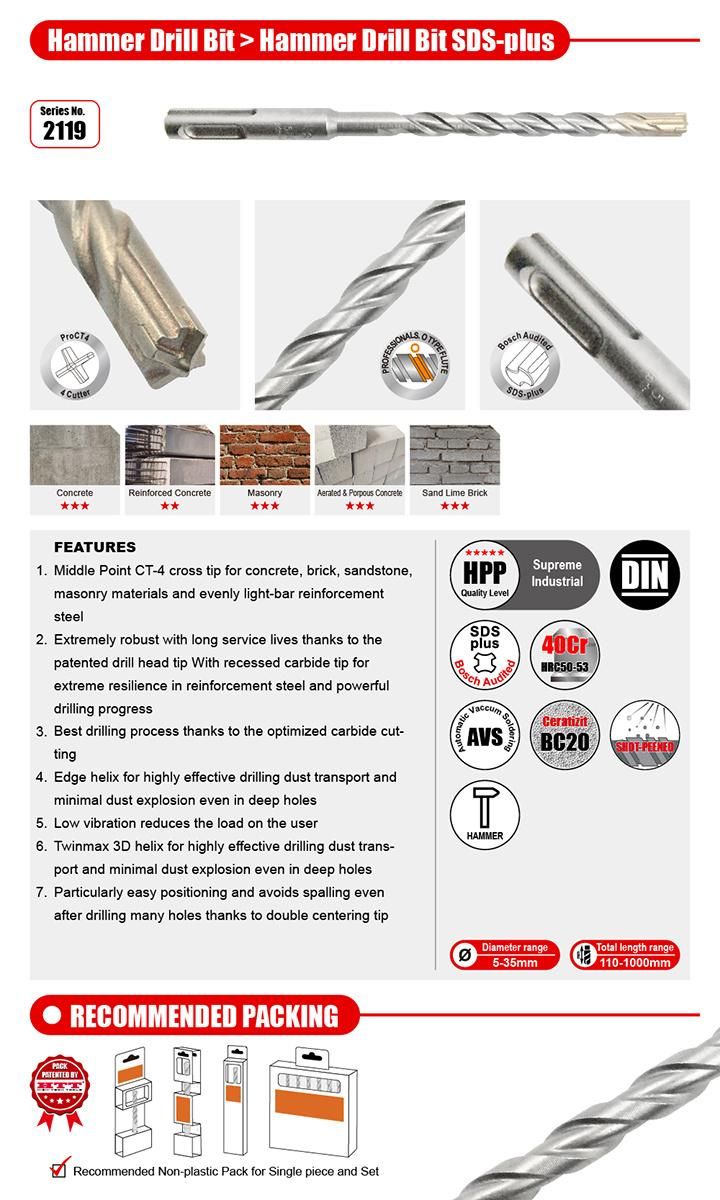

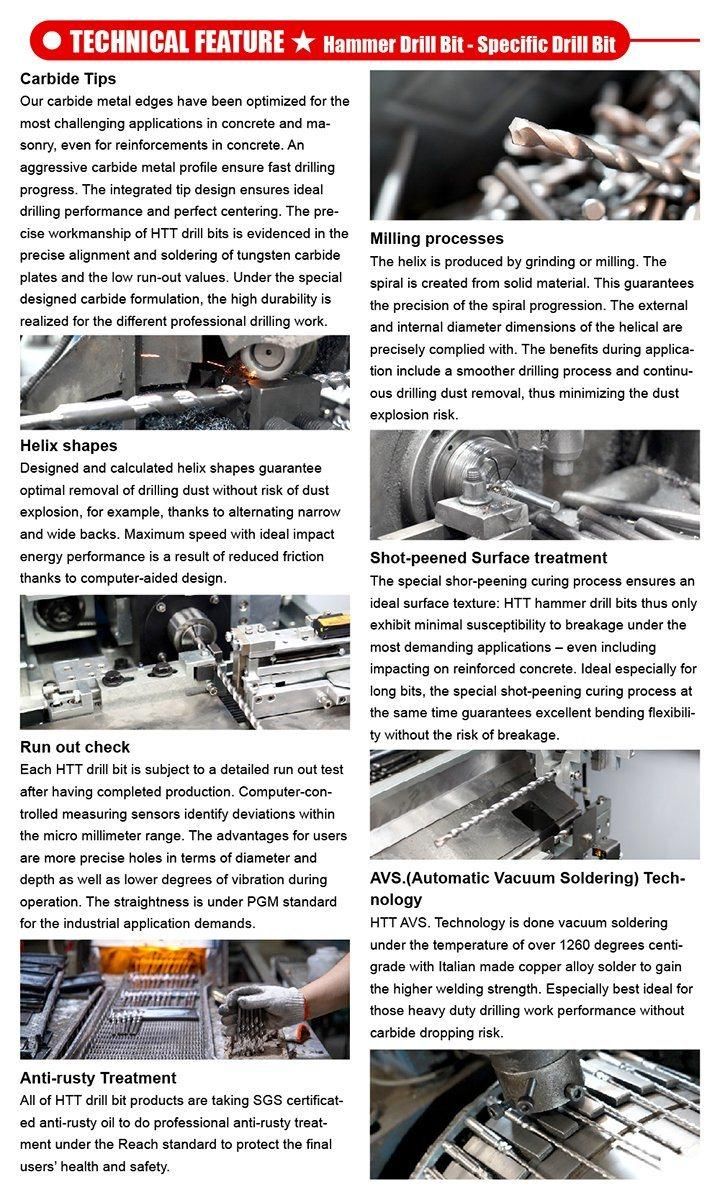

*Hammer Drill SDS plus for Concrete Stone Drilling, Manufactured by HTT, Ceratizit cross cutter tip made of BC20 formulation in the patent of Ceratizit.*Special design of the cross carbide tip fasts the drilling speed with multi-angle cutting edges.
*O type of flute 3D+ design maximizes x4 the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
* Lower vibration for an easy longer-time drilling job.
* SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo of SDS-plus audited by Bosch.
* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.
Other special sizes are available on the customers' special requests.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 2119.050110 | 5 | 60 | 110 |
| 2119.055110 | 5.5 | 60 | 110 |
| 2119.060110 | 6 | 60 | 110 |
| 2119.065110 | 6.5 | 60 | 110 |
| 2119.070110 | 7 | 60 | 110 |
| 2119.080110 | 8 | 60 | 110 |
| 2119.100110 | 10 | 60 | 110 |
| 2119.050160 | 5 | 110 | 160 |
| 2119.055160 | 5.5 | 110 | 160 |
| 2119.060160 | 6 | 110 | 160 |
| 2119.065160 | 6.5 | 110 | 160 |
| 2119.070160 | 7 | 110 | 160 |
| 2119.080160 | 8 | 110 | 160 |
| 2119.100160 | 10 | 110 | 160 |
| 2119.120160 | 12 | 110 | 160 |
| 2119.140160 | 14 | 110 | 160 |
| 2119.160160 | 16 | 110 | 160 |
| 2119.180160 | 18 | 110 | 160 |
| 2119.200160 | 20 | 110 | 160 |
| 2119.220160 | 22 | 110 | 160 |
| 2119.240160 | 24 | 110 | 160 |
| 2119.250160 | 25 | 110 | 160 |
| 2119.260160 | 26 | 110 | 160 |
| 2119.280160 | 28 | 110 | 160 |
| 2119.300160 | 30 | 110 | 160 |
| 2119.320160 | 32 | 110 | 160 |
| 2119.350160 | 35 | 110 | 160 |
| 2119.050180 | 5 | 130 | 180 |
| 2119.055180 | 5.5 | 130 | 180 |
| 2119.060180 | 6 | 130 | 180 |
| 2119.065180 | 6.5 | 130 | 180 |
| 2119.080180 | 8 | 130 | 180 |
| 2119.100180 | 10 | 130 | 180 |
| 2119.050210 | 5 | 160 | 210 |
| 2119.055210 | 5.5 | 160 | 210 |
| 2119.060210 | 6 | 160 | 210 |
| 2119.065210 | 6.5 | 160 | 210 |
| 2119.070210 | 7 | 160 | 210 |
| 2119.080210 | 8 | 160 | 210 |
| 2119.100210 | 10 | 160 | 210 |
| 2119.120210 | 12 | 160 | 210 |
| 2119.140210 | 14 | 160 | 210 |
| 2119.160210 | 16 | 160 | 210 |
| 2119.180210 | 18 | 160 | 210 |
| 2119.200210 | 20 | 160 | 210 |
| 2119.220210 | 22 | 160 | 210 |
| 2119.240210 | 24 | 160 | 210 |
| 2119.250210 | 25 | 160 | 210 |
| 2119.260210 | 26 | 160 | 210 |
| 2119.280210 | 28 | 160 | 210 |
| 2119.300210 | 30 | 160 | 210 |
| 2119.320210 | 32 | 160 | 210 |
| 2119.350210 | 35 | 160 | 210 |
| 2119.050260 | 5 | 210 | 260 |
| 2119.055260 | 5.5 | 210 | 260 |
| 2119.060260 | 6 | 210 | 260 |
| 2119.065260 | 6.5 | 210 | 260 |
| 2119.070260 | 7 | 210 | 260 |
| 2119.080260 | 8 | 210 | 260 |
| 2119.100260 | 10 | 210 | 260 |
| 2119.120260 | 12 | 210 | 260 |
| 2119.140260 | 14 | 210 | 260 |
| 2119.160260 | 16 | 210 | 260 |
| 2119.180260 | 18 | 210 | 260 |
| 2119.200260 | 20 | 210 | 260 |
| 2119.220260 | 22 | 210 | 260 |
| 2119.240260 | 24 | 210 | 260 |
| 2119.250260 | 25 | 210 | 260 |
| 2119.260260 | 26 | 210 | 260 |
| 2119.280260 | 28 | 210 | 260 |
| 2119.300260 | 30 | 210 | 260 |
| 2119.320260 | 32 | 210 | 260 |
| 2119.350260 | 35 | 210 | 260 |
| 2119.050310 | 5 | 260 | 310 |
| 2119.055310 | 5.5 | 260 | 310 |
| 2119.060310 | 6 | 260 | 310 |
| 2119.065310 | 6.5 | 260 | 310 |
| 2119.070310 | 7 | 260 | 310 |
| 2119.080310 | 8 | 260 | 310 |
| 2119.100310 | 10 | 260 | 310 |
| 2119.120310 | 12 | 260 | 310 |
| 2119.140310 | 14 | 260 | 310 |
| 2119.160310 | 16 | 260 | 310 |
| 2119.180310 | 18 | 260 | 310 |
| 2119.200310 | 20 | 260 | 310 |
| 2119.220310 | 22 | 260 | 310 |
| 2119.240310 | 24 | 260 | 310 |
| 2119.250310 | 25 | 260 | 310 |
| 2119.260310 | 26 | 260 | 310 |
| 2119.280310 | 28 | 260 | 310 |
| 2119.300310 | 30 | 260 | 310 |
| 2119.320310 | 32 | 260 | 310 |
| 2119.350310 | 35 | 260 | 310 |
| 2119.050350 | 5 | 300 | 350 |
| 2119.055350 | 5.5 | 300 | 350 |
| 2119.060350 | 6 | 300 | 350 |
| 2119.065350 | 6.5 | 300 | 350 |
| 2119.070350 | 7 | 300 | 350 |
| 2119.080350 | 8 | 300 | 350 |
| 2119.100350 | 10 | 300 | 350 |
| 2119.120350 | 12 | 300 | 350 |
| 2119.140350 | 14 | 300 | 350 |
| 2119.160350 | 16 | 300 | 350 |
| 2119.180350 | 18 | 300 | 350 |
| 2119.200350 | 20 | 300 | 350 |
| 2119.220350 | 22 | 300 | 350 |
| 2119.240350 | 24 | 300 | 350 |
| 2119.250350 | 25 | 300 | 350 |
| 2119.260350 | 26 | 300 | 350 |
| 2119.280350 | 28 | 300 | 350 |
| 2119.300350 | 30 | 300 | 350 |
| 2119.320350 | 32 | 300 | 350 |
| 2119.350350 | 35 | 300 | 350 |
| 2119.050410 | 5 | 360 | 410 |
| 2119.055410 | 5.5 | 360 | 410 |
| 2119.060410 | 6 | 360 | 410 |
| 2119.065410 | 6.5 | 360 | 410 |
| 2119.070410 | 7 | 360 | 410 |
| 2119.080410 | 8 | 360 | 410 |
| 2119.100410 | 10 | 360 | 410 |
| 2119.120410 | 12 | 360 | 410 |
| 2119.140410 | 14 | 360 | 410 |
| 2119.160410 | 16 | 360 | 410 |
| 2119.180410 | 18 | 360 | 410 |
| 2119.200410 | 20 | 360 | 410 |
| 2119.220410 | 22 | 360 | 410 |
| 2119.240410 | 24 | 360 | 410 |
| 2119.250410 | 25 | 360 | 410 |
| 2119.260410 | 26 | 360 | 410 |
| 2119.280410 | 28 | 360 | 410 |
| 2119.300410 | 30 | 360 | 410 |
| 2119.320410 | 32 | 360 | 410 |
| 2119.350410 | 35 | 360 | 410 |
| 2119.050460 | 5 | 410 | 460 |
| 2119.055460 | 5.5 | 410 | 460 |
| 2119.060460 | 6 | 410 | 460 |
| 2119.065460 | 6.5 | 410 | 460 |
| 2119.070460 | 7 | 410 | 460 |
| 2119.080460 | 8 | 410 | 460 |
| 2119.100460 | 10 | 410 | 460 |
| 2119.120460 | 12 | 400 | 460 |
| 2119.140460 | 14 | 400 | 460 |
| 2119.160460 | 16 | 400 | 460 |
| 2119.180460 | 18 | 400 | 460 |
| 2119.200460 | 20 | 400 | 460 |
| 2119.220460 | 22 | 400 | 460 |
| 2119.240460 | 24 | 400 | 460 |
| 2119.250460 | 25 | 400 | 460 |
| 2119.260460 | 26 | 400 | 460 |
| 2119.280460 | 28 | 400 | 460 |
| 2119.300460 | 30 | 400 | 460 |
| 2119.320460 | 32 | 400 | 460 |
| 2119.350460 | 35 | 400 | 460 |
| 2119.060550 | 6 | 500 | 550 |
| 2119.065550 | 6.5 | 500 | 550 |
| 2119.070550 | 7 | 500 | 550 |
| 2119.080550 | 8 | 500 | 550 |
| 2119.100550 | 10 | 500 | 550 |
| 2119.120550 | 12 | 500 | 550 |
| 2119.140550 | 14 | 500 | 550 |
| 2119.160550 | 16 | 500 | 550 |
| 2119.180550 | 18 | 500 | 550 |
| 2119.200550 | 20 | 500 | 550 |
| 2119.220550 | 22 | 500 | 550 |
| 2119.240550 | 24 | 500 | 550 |
| 2119.250550 | 25 | 500 | 550 |
| 2119.260550 | 26 | 500 | 550 |
| 2119.280550 | 28 | 500 | 550 |
| 2119.300550 | 30 | 500 | 550 |
| 2119.320550 | 32 | 500 | 550 |
| 2119.350550 | 35 | 500 | 550 |
| 2119.060600 | 6 | 550 | 600 |
| 2119.065600 | 6.5 | 550 | 600 |
| 2119.070600 | 7 | 550 | 600 |
| 2119.080600 | 8 | 550 | 600 |
| 2119.100600 | 10 | 550 | 600 |
| 2119.120600 | 12 | 550 | 600 |
| 2119.140600 | 14 | 550 | 600 |
| 2119.160600 | 16 | 550 | 600 |
| 2119.180600 | 18 | 550 | 600 |
| 2119.200600 | 20 | 550 | 600 |
| 2119.220600 | 22 | 550 | 600 |
| 2119.240600 | 24 | 550 | 600 |
| 2119.250600 | 25 | 550 | 600 |
| 2119.260600 | 26 | 550 | 600 |
| 2119.280600 | 28 | 550 | 600 |
| 2119.300600 | 30 | 550 | 600 |
| 2119.320600 | 32 | 550 | 600 |
| 2119.350600 | 35 | 550 | 600 |
| 2119.080800 | 8 | 750 | 800 |
| 2119.100800 | 10 | 750 | 800 |
| 2119.120800 | 12 | 750 | 800 |
| 2119.140800 | 14 | 750 | 800 |
| 2119.160800 | 16 | 750 | 800 |
| 2119.180800 | 18 | 750 | 800 |
| 2119.200800 | 20 | 750 | 800 |
| 2119.220800 | 22 | 750 | 800 |
| 2119.240800 | 24 | 750 | 800 |
| 2119.250800 | 25 | 750 | 800 |
| 2119.260800 | 26 | 750 | 800 |
| 2119.280800 | 28 | 750 | 800 |
| 2119.300800 | 30 | 750 | 800 |
| 2119.320800 | 32 | 750 | 800 |
| 2119.350800 | 35 | 750 | 800 |
| 2119.101000 | 10 | 950 | 1000 |
| 2119.121000 | 12 | 950 | 1000 |
| 2119.141000 | 14 | 950 | 1000 |
| 2119.161000 | 16 | 950 | 1000 |
| 2119.181000 | 18 | 950 | 1000 |
| 2119.201000 | 20 | 950 | 1000 |
| 2119.221000 | 22 | 950 | 1000 |
| 2119.241000 | 24 | 950 | 1000 |
| 2119.251000 | 25 | 950 | 1000 |
| 2119.261000 | 26 | 950 | 1000 |
| 2119.281000 | 28 | 950 | 1000 |
| 2119.301000 | 30 | 950 | 1000 |
| 2119.321000 | 32 | 950 | 1000 |
| 2119.351000 | 35 | 950 | 1000 |
