• Model NO.：DNHX
• Shank Diameter：19.05mm
• Treatment：All-Ground
• Performance：Better Endurance
• Transport Package：Single Packing with PVC Plastic Tube
• Specification：50mm
• Trademark：CHTOOLS
• Origin：China(Mainland)Zhejiang
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. DNHX Shank Diameter 19.05mm Treatment All-Ground Performance Better Endurance Transport Package Single Packing with PVC Plastic Tube Specification 50mm Trademark CHTOOLS Origin China(Mainland)Zhejiang HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

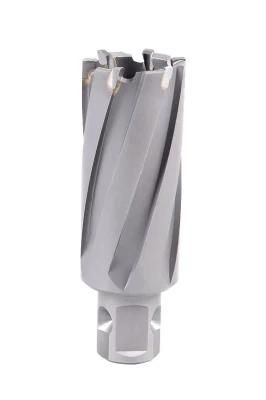

CHTOOLS Weldon shank drilling holes annular cutter 2in for drill press

1. Employing HSS-E for production, with excellent performance of high hardness, abrasion resistance and tenacity, the product will have a very long service life under stable processing status;
2. Based on different cutting depth, designing corresponding end-edge cutting geometry, which possesses good centering and blade collapse resistance performance;
3. Possessing all the shank types, and being suitable for all the magnet-seat drilling machines worldwide;
4. Complete and advanced heat treatment process and quality inspection standard, guarantee product quality;
5. Automatic CNC machine tool processing, with consistent and stable quality.

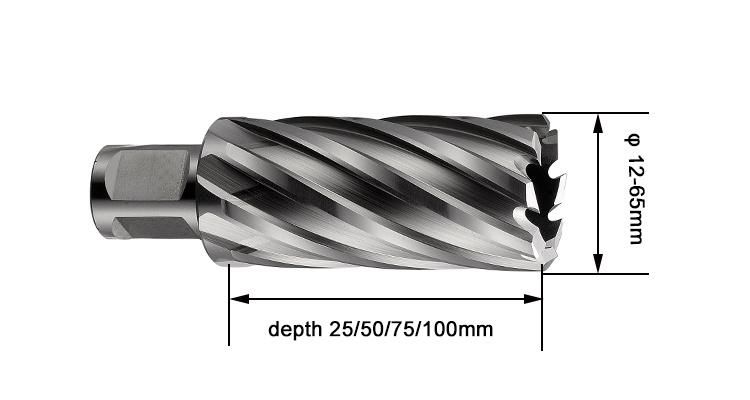

Model	DNHX-2	DNHX-4	DNHX-5	DNHX-6
Diameter(mm)	φ12-65	φ12-65	φ18-65	φ18-65
Cutting depth(mm)	25	50	75	100
Matched pilot pin	DPB-62077	DPB-62102	DPB-81130	DPB-81160
Specification(mm)	6.34*77	6.34*102	7.98*130	7.98*160

Applicable industry

Steel structure, bridge engineering, shipbuilding, oil drilling rig, railway construction, machine manufacturing, electric power and other fields.

Applicable material

Various steel material, steel plate, stainless steel, aluminum, brass, cast iron,etc.
