• Model NO.：2336
• Carbide Type：Ceratizit Bc20
• Steel Type：35CrMo , 40cr
• Surface Treatment：Shot-Peened
• Cutter Type：Splus Carbide Tip
• Flute Type：W
• Marking：Stamped
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Certificated：Pgm, Bosch Audited SDS-Plus Logo
• Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
• Specification：Diameter 4mm to 32mm
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：3600000,Year

Basic Info.

Model NO. 2336 Carbide Type Ceratizit Bc20 Steel Type 35CrMo / 40cr Surface Treatment Shot-Peened Cutter Type Splus Carbide Tip Flute Type W Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Certificated Pgm, Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification Diameter 4mm to 32mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 3600000/Year

Product Description

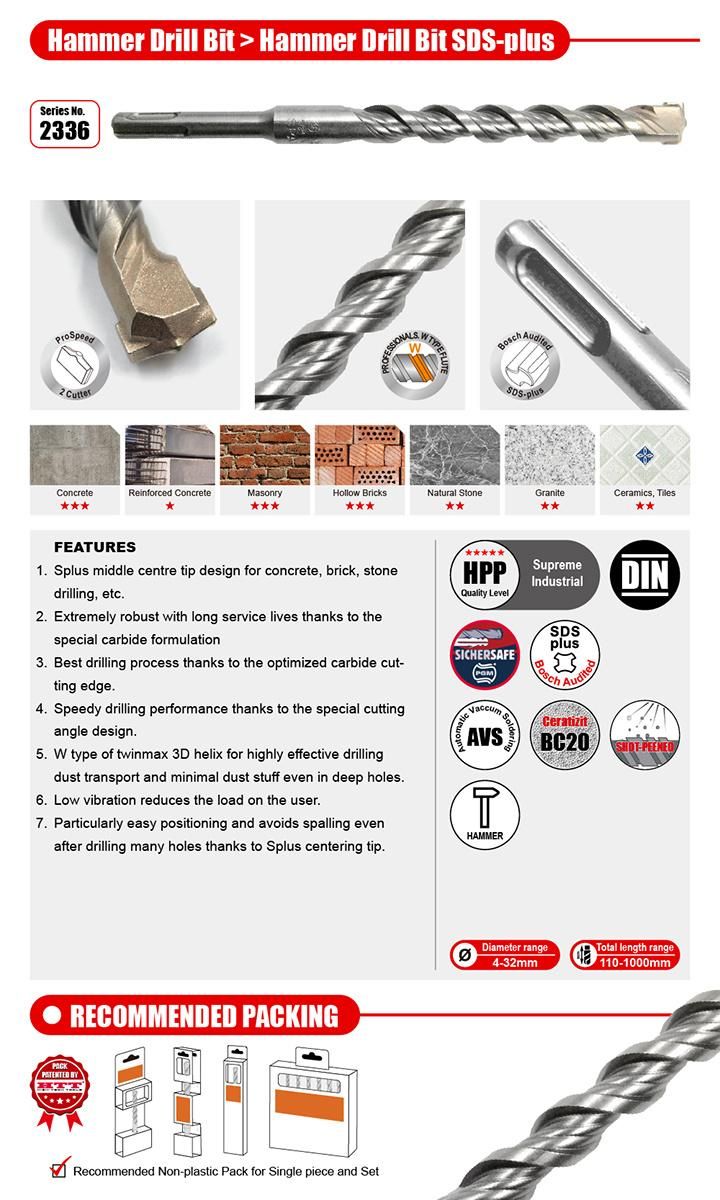

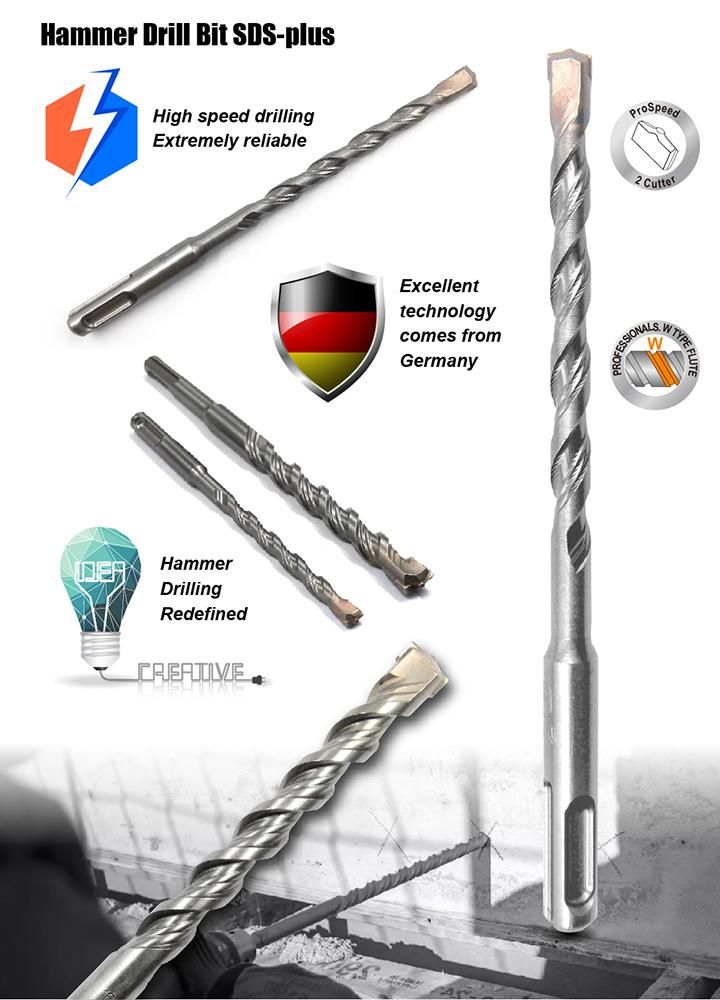

*Hammer Drill SDS plus for Concrete Stone Drilling, PGM certificated on German Quality,  Manufactured by HTT,  2 Cutter W Splus carbide tip made by Ceratizit.

* Carbide tips are supplied By Ceratizit, one of the most professional tungsten carbide manufactures in the globe , which is located in Luxemburg.

* W flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for easy longer time drilling job.

* SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stampled logo of SDS-plus audited by Bosch.

* SGS approved anti-rusty oil treatment to protect the final users under Reach standard.

* PGM certificated carbide size, carbide welded symmetry and rotary run-out straightness for the industrial professional applications.


*Available sizes for Choices(The special sizes are also available on the customers' special request)

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
2336.040110	4	60	110
2336.050110	5	60	110
2336.055110	5.5	60	110
2336.060110	6	60	110
2336.065110	6.5	60	110
2336.070110	7	60	110
2336.080110	8	60	110
2336.090110	9	60	110
2336.100110	10	60	110
2336.110110	11	60	110
2336.040160	4	110	160
2336.050160	5	110	160
2336.055160	5.5	110	160
2336.060160	6	110	160
2336.065160	6.5	110	160
2336.070160	7	110	160
2336.080160	8	110	160
2336.090160	9	110	160
2336.100160	10	110	160
2336.110160	11	110	160
2336.120160	12	110	160
2336.130160	13	110	160
2336.140160	14	110	160
2336.150160	15	110	160
2336.160160	16	110	160
2336.180160	18	110	160
2336.190160	19	110	160
2336.200160	20	110	160
2336.220160	22	110	160
2336.240160	24	110	160
2336.250160	25	110	160
2336.260160	26	110	160
2336.280160	28	110	160
2336.300160	30	110	160
2336.320160	32	110	160
2336.040180	4	130	180
2336.050180	5	130	180
2336.055180	5.5	130	180
2336.060180	6	130	180
2336.065180	6.5	130	180
2336.080180	8	130	180
2336.100180	10	130	180
2336.050210	5	160	210
2336.055210	5.5	160	210
2336.060210	6	160	210
2336.065210	6.5	160	210
2336.070210	7	160	210
2336.080210	8	160	210
2336.090210	9	160	210
2336.100210	10	160	210
2336.110210	11	160	210
2336.120210	12	160	210
2336.130210	13	160	210
2336.140210	14	160	210
2336.150210	15	160	210
2336.160210	16	160	210
2336.180210	18	160	210
2336.190210	19	160	210
2336.200210	20	160	210
2336.220210	22	160	210
2336.240210	24	160	210
2336.250210	25	160	210
2336.260210	26	160	210
2336.280210	28	160	210
2336.300210	30	160	210
2336.320210	32	160	210
2336.050260	5	210	260
2336.055260	5.5	210	260
2336.060260	6	210	260
2336.065260	6.5	210	260
2336.070260	7	210	260
2336.080260	8	210	260
2336.090260	9	210	260
2336.100260	10	210	260
2336.110260	11	210	260
2336.120260	12	210	260
2336.130260	13	210	260
2336.140260	14	210	260
2336.150260	15	210	260
2336.160260	16	210	260
2336.180260	18	210	260
2336.190260	19	210	260
2336.200260	20	210	260
2336.220260	22	210	260
2336.240260	24	210	260
2336.250260	25	210	260
2336.260260	26	210	260
2336.280260	28	210	260
2336.300260	30	210	260
2336.320260	32	210	260
2336.050310	5	260	310
2336.055310	5.5	260	310
2336.060310	6	260	310
2336.065310	6.5	260	310
2336.070310	7	260	310
2336.080310	8	260	310
2336.090310	9	260	310
2336.100310	10	260	310
2336.110310	11	260	310
2336.120310	12	260	310
2336.130310	13	260	310
2336.140310	14	260	310
2336.150310	15	260	310
2336.160310	16	260	310
2336.180310	18	260	310
2336.190310	19	260	310
2336.200310	20	260	310
2336.220310	22	260	310
2336.240310	24	260	310
2336.250310	25	260	310
2336.260310	26	260	310
2336.280310	28	260	310
2336.300310	30	260	310
2336.320310	32	260	310
2336.050350	5	300	350
2336.055350	5.5	300	350
2336.060350	6	300	350
2336.065350	6.5	300	350
2336.070350	7	300	350
2336.080350	8	300	350
2336.090350	9	300	350
2336.100350	10	300	350
2336.110350	11	300	350
2336.120350	12	300	350
2336.130350	13	300	350
2336.140350	14	300	350
2336.150350	15	300	350
2336.160350	16	300	350
2336.180350	18	300	350
2336.190350	19	300	350
2336.200350	20	300	350
2336.220350	22	300	350
2336.240350	24	300	350
2336.250350	25	300	350
2336.260350	26	300	350
2336.280350	28	300	350
2336.300350	30	300	350
2336.320350	32	300	350
2336.050410	5	360	410
2336.055410	5.5	360	410
2336.060410	6	360	410
2336.065410	6.5	360	410
2336.070410	7	360	410
2336.080410	8	360	410
2336.090410	9	360	410
2336.100410	10	360	410
2336.110410	11	360	410
2336.120410	12	360	410
2336.130410	13	360	410
2336.140410	14	360	410
2336.150410	15	360	410
2336.160410	16	360	410
2336.180410	18	360	410
2336.190410	19	360	410
2336.200410	20	360	410
2336.220410	22	360	410
2336.240410	24	360	410
2336.250410	25	360	410
2336.260410	26	360	410
2336.280410	28	360	410
2336.300410	30	360	410
2336.320410	32	360	410
2336.050460	5	410	460
2336.055460	5.5	410	460
2336.060460	6	410	460
2336.065460	6.5	410	460
2336.070460	7	410	460
2336.080460	8	410	460
2336.090460	9	410	460
2336.100460	10	410	460
2336.110460	11	410	460
2336.120460	12	400	460
2336.130460	13	400	460
2336.140460	14	400	460
2336.150460	15	400	460
2336.160460	16	400	460
2336.180460	18	400	460
2336.190460	19	400	460
2336.200460	20	400	460
2336.220460	22	400	460
2336.240460	24	400	460
2336.250460	25	400	460
2336.260460	26	400	460
2336.280460	28	400	460
2336.300460	30	400	460
2336.320460	32	400	460
2336.060550	6	500	550
2336.065550	6.5	500	550
2336.070550	7	500	550
2336.080550	8	500	550
2336.090550	9	500	550
2336.100550	10	500	550
2336.110550	11	500	550
2336.120550	12	500	550
2336.130550	13	500	550
2336.140550	14	500	550
2336.150550	15	500	550
2336.160550	16	500	550
2336.180550	18	500	550
2336.190550	19	500	550
2336.200550	20	500	550
2336.220550	22	500	550
2336.240550	24	500	550
2336.250550	25	500	550
2336.260550	26	500	550
2336.280550	28	500	550
2336.300550	30	500	550
2336.320550	32	500	550
2336.060600	6	550	600
2336.065600	6.5	550	600
2336.070600	7	550	600
2336.080600	8	550	600
2336.090600	9	550	600
2336.100600	10	550	600
2336.110600	11	550	600
2336.120600	12	550	600
2336.130600	13	550	600
2336.140600	14	550	600
2336.150600	15	550	600
2336.160600	16	550	600
2336.180600	18	550	600
2336.190600	19	550	600
2336.200600	20	550	600
2336.220600	22	550	600
2336.240600	24	550	600
2336.250600	25	550	600
2336.260600	26	550	600
2336.280600	28	550	600
2336.300600	30	550	600
2336.320600	32	550	600
2336.080800	8	750	800
2336.090800	9	750	800
2336.100800	10	750	800
2336.110800	11	750	800
2336.120800	12	750	800
2336.130800	13	750	800
2336.140800	14	750	800
2336.150800	15	750	800
2336.160800	16	750	800
2336.180800	18	750	800
2336.190800	19	750	800
2336.200800	20	750	800
2336.220800	22	750	800
2336.240800	24	750	800
2336.250800	25	750	800
2336.260800	26	750	800
2336.280800	28	750	800
2336.300800	30	750	800
2336.320800	32	750	800
2336.101000	10	950	1000
2336.111000	11	950	1000
2336.121000	12	950	1000
2336.131000	13	950	1000
2336.141000	14	950	1000
2336.151000	15	950	1000
2336.161000	16	950	1000
2336.181000	18	950	1000
2336.191000	19	950	1000
2336.201000	20	950	1000
2336.221000	22	950	1000
2336.241000	24	950	1000
2336.251000	25	950	1000
2336.261000	26	950	1000
2336.281000	28	950	1000
2336.301000	30	950	1000
2336.321000	32	950	1000
